Aries Cerat — Pre Amplifiers

Ianus Ageto

A monumental dual-chassis preamplifier debuting Generation 3 Inverted Triode technology.

The Ianus Ageto represents a fundamental breakthrough in preamplifier architecture, pushing the boundaries of Aries Cerat's acclaimed Inverted Triode technology into its third generation. Developed as the ideal counterpart to the majestic Ianus TriodeFet power amplifiers, this dual-chassis instrument completely reimagines the active gain stage and its supporting power infrastructure. Inside the audio chassis, conventional tube topology is abandoned. The Generation 3 Inverted Triode operates with a wire-grid anode and an enveloping plate-like control grid. This creates an intense negative electrical field that pushes electrons away from the anode, functioning less like a traditional gain valve and more like a virtual vacuum-state step-down transformer. This is paired with an uncompromising multi-tap transformer volume control, switched seamlessly by latching relays to prevent any signal contamination. To achieve its record-setting noise floor, the Ageto treats the power supply as an entirely separate entity. The secondary chassis houses a true dual-mono power architecture, isolating the massive mains transformers and the complex choke-filter networks from the highly sensitive nano-crystalline signal transformers. Sonically, this grants the Ageto unparalleled transparency and dynamic freedom. It delivers music with startling speed, vast bandwidth, and an absolute lack of mechanical artifacts, stepping aside entirely to reveal the true fabric of the recording.

Key Features

01

Generation 3 Inverted Triode

Features a redesigned active element and driving configuration, pushing the proprietary Inverted Triode technology into unprecedented realms of transient speed and bandwidth.

02

Latching Relay Transformer Attenuation

Volume control is handled by a bifilar-wound multi-tap input transformer. The 26 steps are switched via latching relays, shielding the signal path from relay driving current contamination.

03

True Dual-Mono Power Supply

The dedicated external power chassis houses individual transformers for each channel, feeding eight highly elaborate, independent choke-filtered power supplies per circuit.

04

Nano-Crystalline Signal Core

All audio signal transformers are constructed using the highest quality nano-crystalline cores, ensuring pristine signal transfer and exceptional frequency extension.

The Generation 3 Architecture

Chapter 01

The Generation 3 Architecture

The Ageto evolves the brand's proprietary technology into its most refined iteration yet. Inside a traditional vacuum tube, an electron stream is impeded by a wire grid. The Generation 3 Inverted Triode reverses this entirely, accelerating electrons toward a wire-grid anode while an enveloping plate structure pushes them away. This radical topology yields a completely different operating principle, acting as a virtual transformer to massively increase bandwidth while eliminating common tube distortions.
Magnetic Signal Purity

Chapter 02

Magnetic Signal Purity

Aries Cerat treats the delicate audio signal with supreme care by relying heavily on advanced magnetics. The Ageto features a multi-tap transformer volume control utilising bespoke bifilar windings to eliminate losses. To prevent any electrical interference, the attenuation steps are switched via specialized latching relays, completely shielding the fragile signal from continuous driving currents.

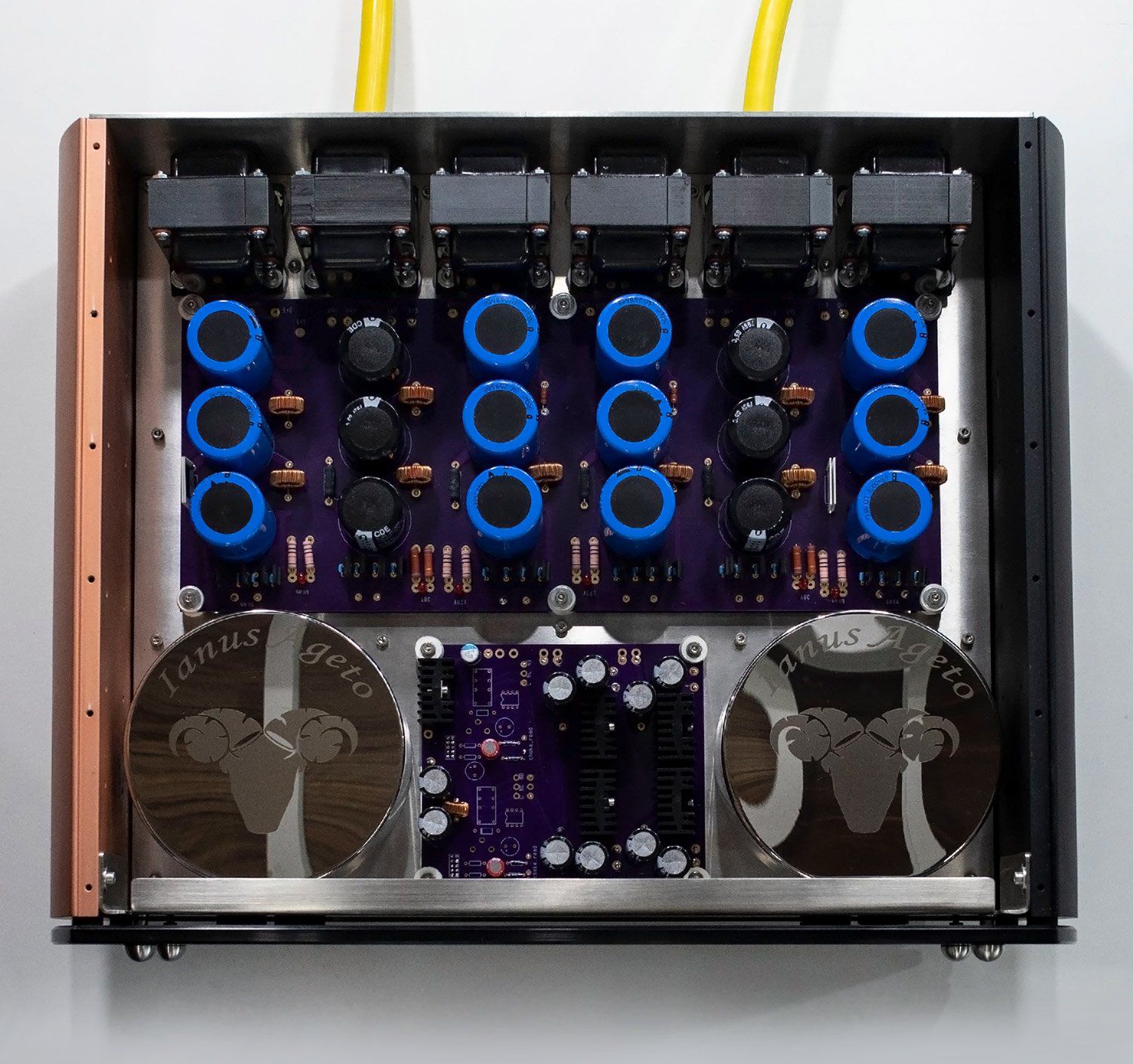

Absolute Power Isolation

Chapter 03

Absolute Power Isolation

Because components like output and inter-stage transformers are highly sensitive to electromagnetic interference, the Ageto segregates all power hardware into a dedicated external chassis. By physically removing the massive energy banks and elaborate choke filters from the main audio unit, the preamplifier achieves a microscopic noise floor of less than -120dB, ensuring complete dynamic freedom and pitch-black silences between notes.

Specifications

TechnologyGeneration 3 and Generation 1 Inverted Triode technology
Number of gain stagesTwo
Tubes used1 x E280F (driver), 1 x Gen 3 IT (or Gen 1) per channel
VolumeTransformer volume control 26 steps
Channel balanceBalanced left/right function
HT bypassHT bypass ready
AC LinkAries Cerat HT Link ready
Input impedance7kΩ < 100Hz
Output impedance12 ohms
Signal bandwidth5Hz to 300kHz
Maximum voltage output2Vrms (low gain), 4Vrms (medium gain)
Maximum gain3dB (low gain version), 9dB (medium gain version)
Noise floor<-120dB unweighted
Inputs4 x RCA, 1 x true balanced XLR
Dimensions (H × W × D)165 × 550 × 430 mm (per chassis)
Weight70 kg per chassis (140 kg total weight)
