Ayon Audio — Pre Amplifiers

Spheris

The absolute reference dual-chassis linestage with integrated AC power regeneration.

The Ayon Audio Spheris stands at the absolute zenith of vacuum-tube pre-amplifier architecture, designed for the most demanding audio systems in existence. Hand-assembled in Austria, this dual-chassis reference system completely isolates the fragile audio circuit from the destructive field anomalies of the mains line. By treating power processing as a fundamental extension of the audio signal, it achieves an incredibly silent, ink-black background from which music emerges with startling physical presence. At the core of the Spheris is a highly complex, single-gain-stage layout utilizing legendary Siemens C3m pentodes wired strictly in triode configuration. Running with absolute zero negative feedback of any kind, the topology avoids the timing errors and spatial flattening introduced by conventional multi-stage correction networks. The absolute purity of the path is maintained by using only a single high-grade coupling capacitor at the output stage, entirely discarding power-sapping followers or solid-state buffers. Sonically, the Spheris provides an expansive, structurally profound three-dimensional soundstage with a level of organic micro-detail that challenges traditional electronic playback. It bypasses the soft, over-saturated warmth common to lesser valve gear, resolving lightning-fast transients and deep, authoritative low-frequency textures with total transparency. Complex acoustic environments are rendered with immaculate timbral accuracy, placing instruments with pin-sharp separation and a tangible, tactile physical boundary.

Key Features

01

Premium Siemens C3m Triode Gain Stage

Utilises long-life industrial C3m pentodes wired in pure triode configuration, celebrated for their exceptional micro-dynamic precision, low distortion, and a minimum service life of 10,000 hours.

02

Active Outboard AC Regenerator Power Supply

Features a separate, dedicated chassis containing an active AC mains regenerator that generates a pure, low-distortion sinus wave to isolate internal tube circuits from external line fluctuations.

03

Advanced Volume Transformer Control

Employs an intricate, 42-position electronic-relay attenuation network driven by multi-winding step-up transformers to ensure complete transparency and a channel balance within 0.05dB.

04

Absolute Zero Feedback Topology

Operates with 0dB of global or local negative feedback, preserving complete phase correctness, unrestrained dynamic tracking, and a natural, non-fatiguing harmonic structure.

05

True Balanced Transformer Integration

Incorporates premium Lundahl step-up coupling transformers to seamlessly balance inbound single-ended signals, ensuring the entire internal amplification array remains fully symmetrical.

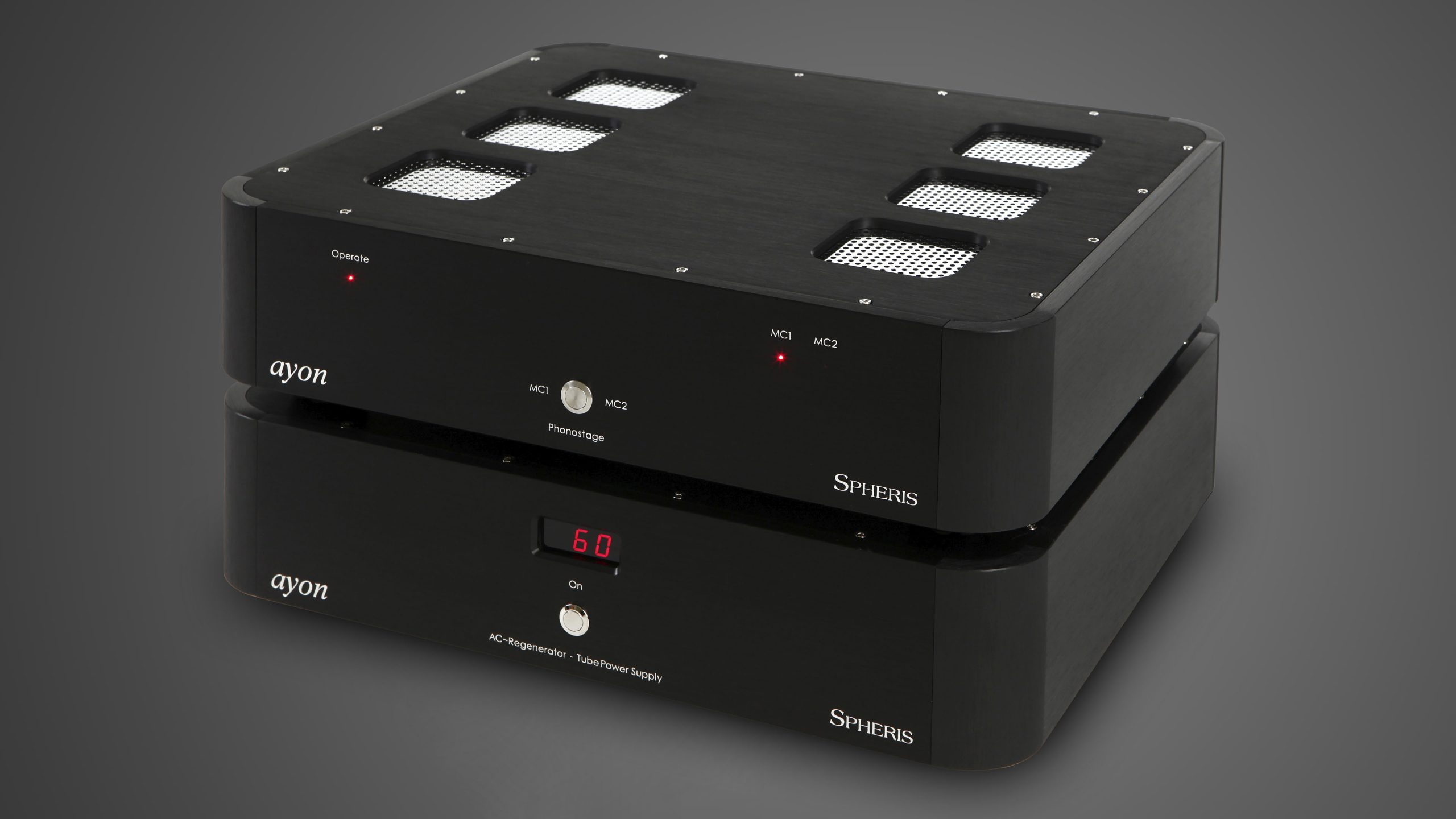

The Art of Power Purification

Chapter 01

The Art of Power Purification

The engineering philosophy behind the Spheris rests on the reality that an amplifier can only ever be as pure as the energy feeding it. Instead of utilizing standard passive filtration, the external Spheris power housing functions as a standalone power station that actively reforms incoming electricity into a pristine, regulated sine wave. This triple-choke filtered power network drives separate, ultra-shielded R-core transformers for the individual gain stages, removing all traces of powerline haze, grain, and high-frequency noise from the listening field.

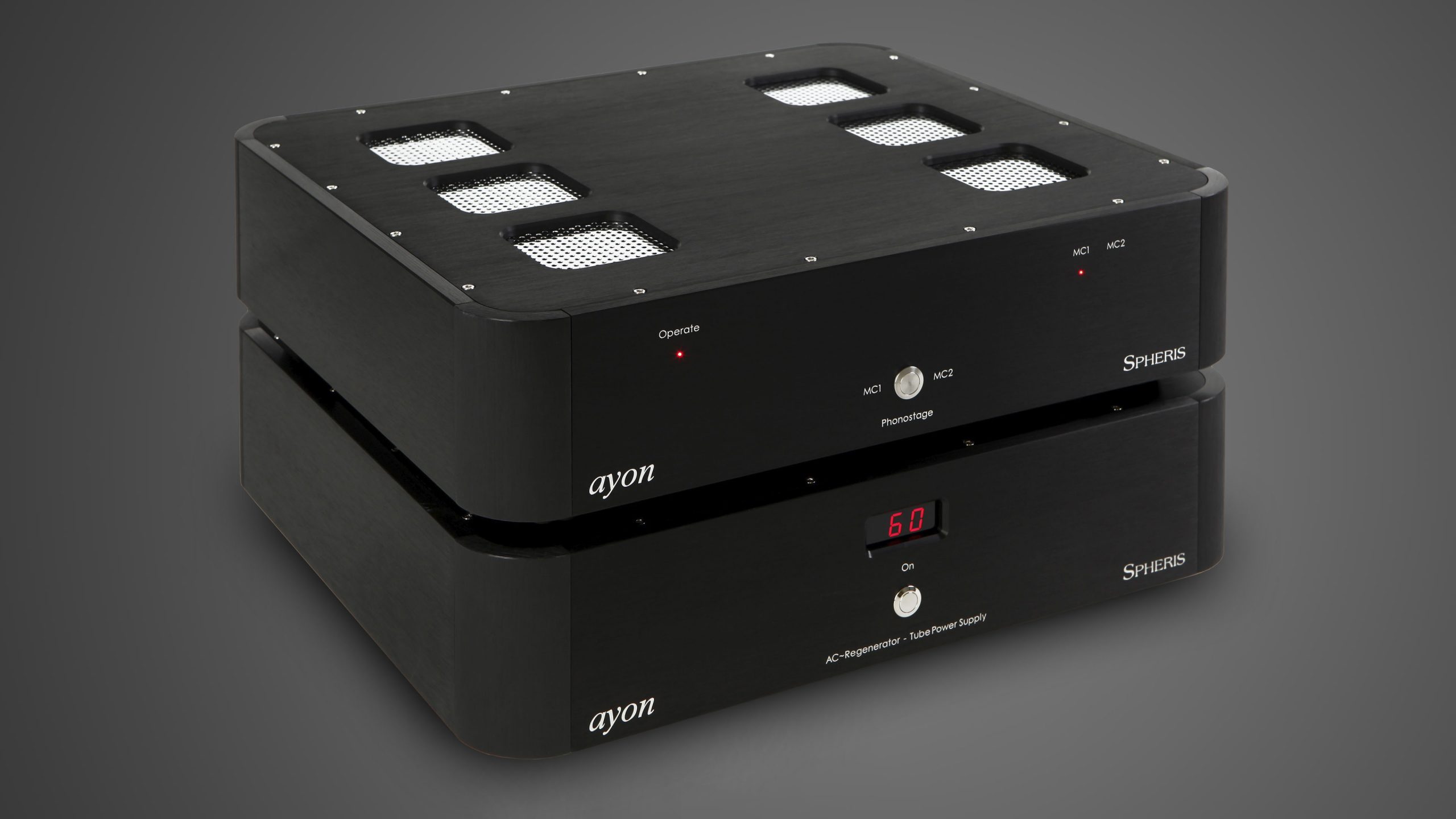

Minimalist Topology & Precision Materials

Chapter 02

Minimalist Topology & Precision Materials

To minimize the degradation of delicate audio information, the Spheris relies on an ultra-short signal path built upon heavy, gold-plated industrial PCBs. Internal signal cable routing is kept to a minimum and constructed from high-purity, soft-annealed copper insulated within low-loss dielectric layers. Every component has been chosen through exhaustive listening evaluations, incorporating custom-milled Ayon tube sockets with beryllium-copper spring contacts, Swiss-made ELMA input selectors, precision Tantalum resistors, and long-life Rifa capacitors.

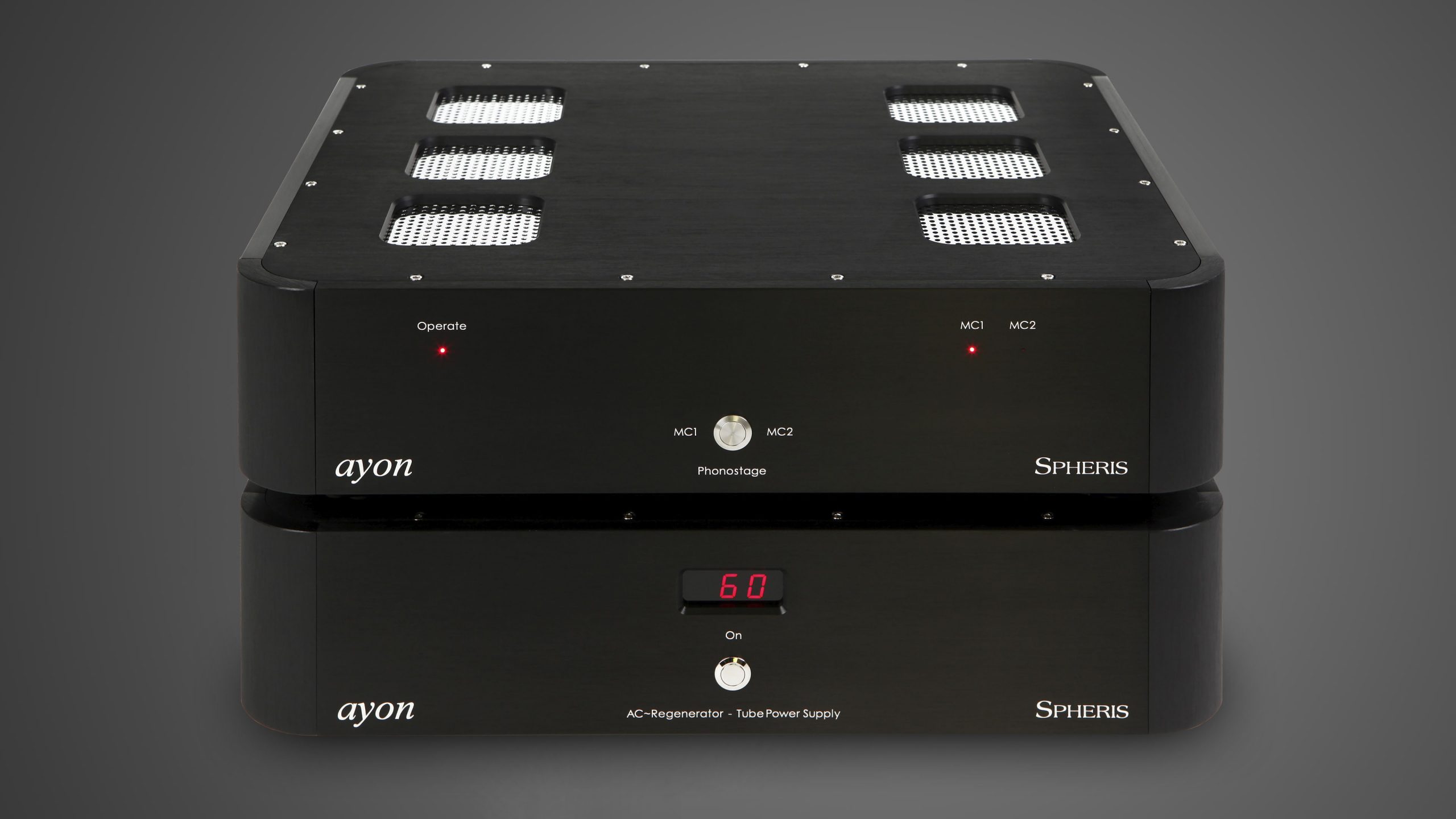

Listening Notes & Mechanical Integrity

Chapter 03

Listening Notes & Mechanical Integrity

Housed within two massive, anti-vibration chassis milled from thick plates of non-magnetic black aluminum, the Spheris implements a sophisticated dual star-earth ground network. A manual grounding switch on the rear panel allows the listener to optimize system-wide electrical isolation, eliminating faint hum loops from connected sources. In the studio or listening lounge, this complete silence enables the pre-amplifier to disappear, projecting an airy, holographic image where vocals and delicate venue echoes hang in midair with complete physical weight.

Specifications

TypePure Class-A dual-chassis reference vacuum tube line pre-amplifier
Frequency response10 Hz – 80 kHz
ImpedanceInput impedance greater than 1 MOhm / Output impedance 300 Ohm
Power / outputMaximum output 5V rms at 1 kHz
Inputs / outputs2 x Phono RCA, 2 x Load
Dimensions (H × W × D)11 × 50 × 43 cm per chassis
Weight46 kg
Tube Complement6H30, 6SL7
S/N ratio> 100 dB
Harmonic Distortion (at 1V ) Phono< 0.1%
AC~ ReGeneratormax. 300 W
Frequency60Hz
