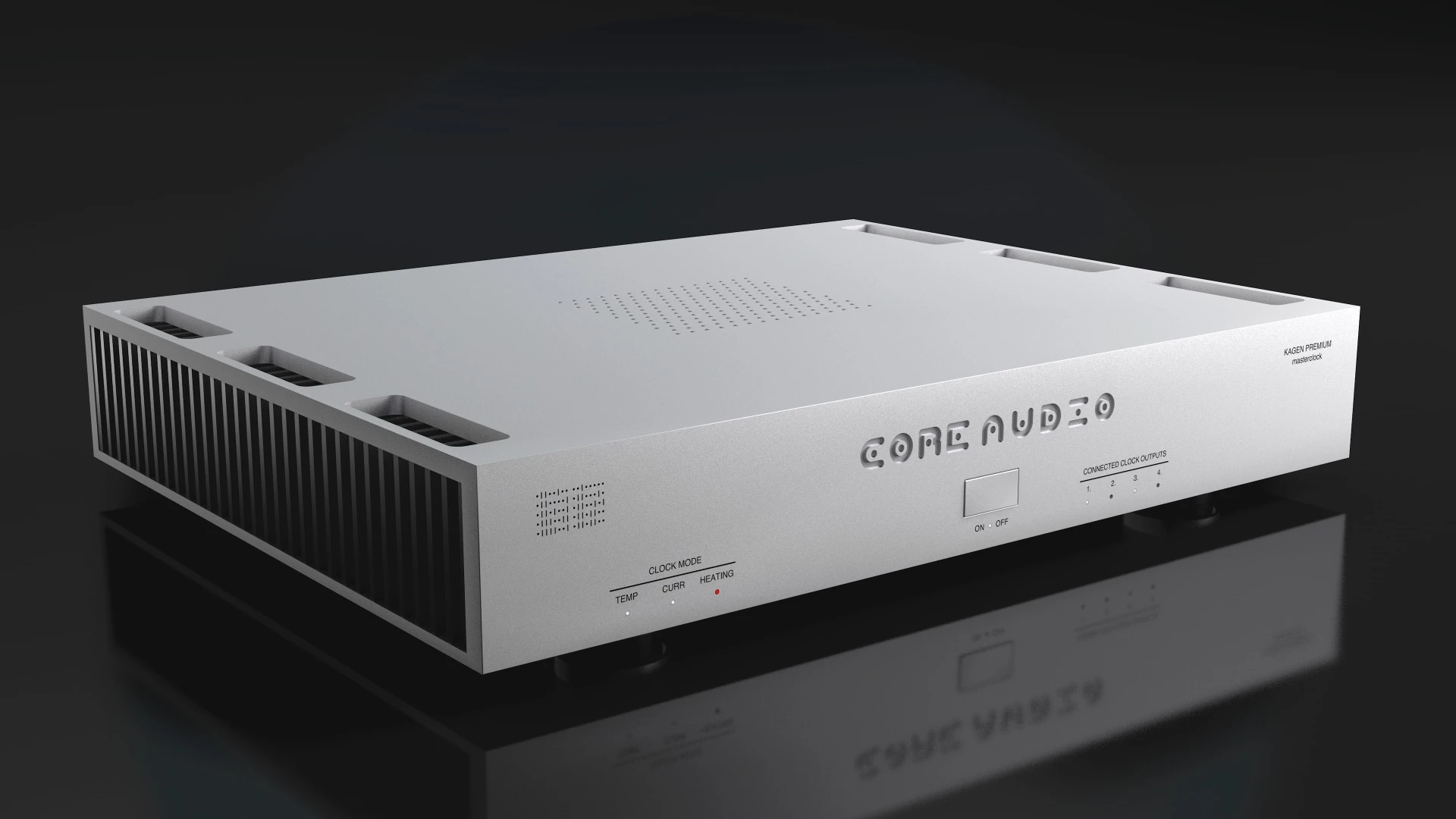

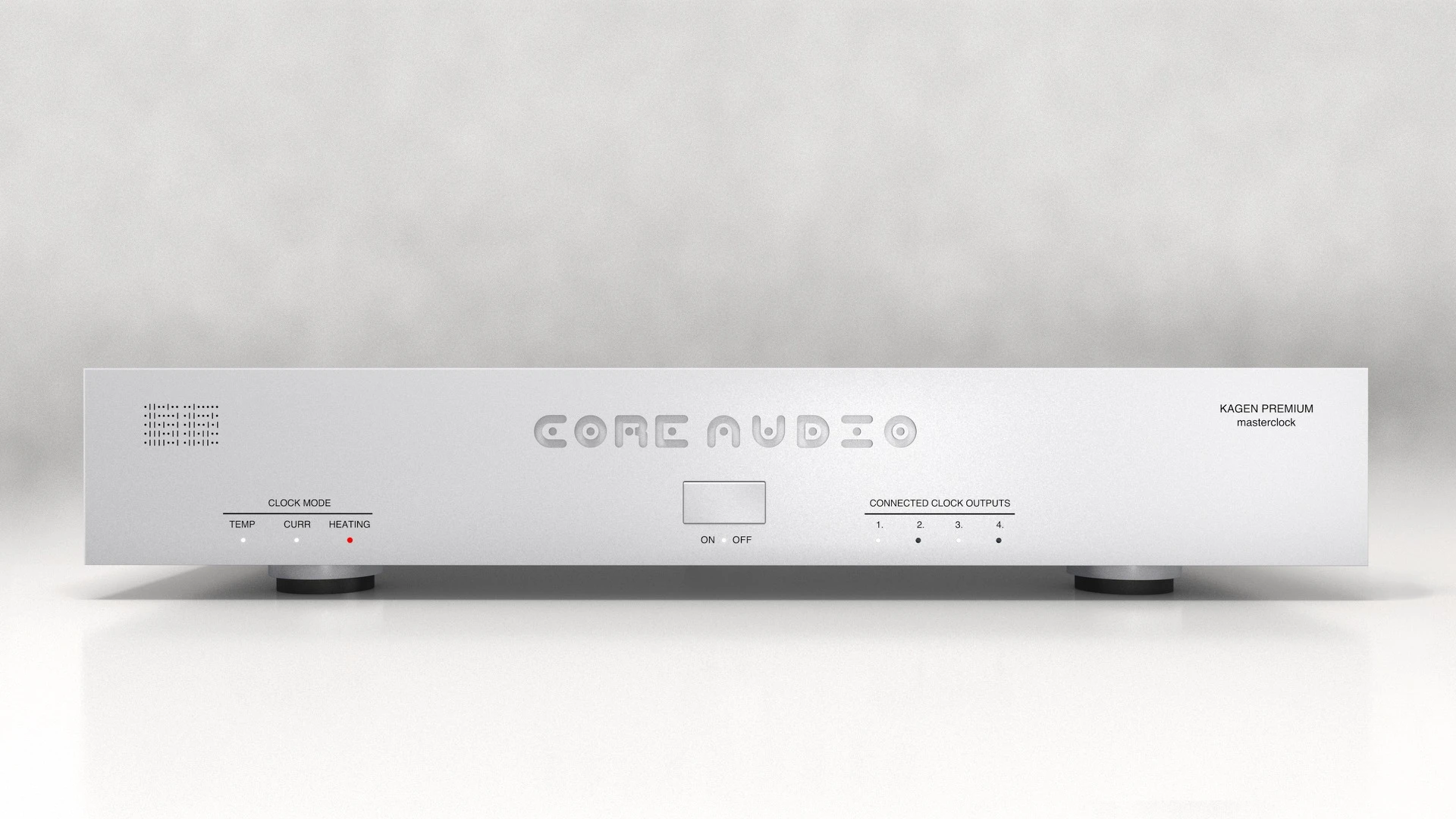

Kagen
The centralized master clock establishing absolute phase alignment across your digital system.
The Kagen Master Clock serves as the absolute temporal anchor for a reference-level digital audio system. In the sphere of high-resolution playback, independent components typically rely on internal, free-running oscillators that inevitably drift, introducing microscopic phase noise and timing inconsistencies. Developed to bring precise instrumentation and recording studio discipline into the home, the Kagen replaces these isolated reference points with a single, ultra-stable master heartbeat that governs your entire digital front end.
By ensuring that your network transport, digital-to-digital converter, and digital-to-analogue converter march in perfect synchronicity, the Kagen dramatically elevates the performance of downstream hardware. It bridges the final gap between cold, clinical digital reconstruction and the fluid, organic flow of a live musical performance. This singular focus on temporal discipline makes it the ultimate upgrade for the serious digital audiophile.
Musically, the presence of the Kagen within a system is felt as a profound sense of calmness and structural solidity. The stereo image gains sharp physical boundaries, lifting the synthetic veil often associated with complex digital setups. High frequencies lose any remaining hardness, instruments sit perfectly focused within a deep soundstage, and low-frequency pulses gain a tactile authority that redefines your connection to the recording.
Key Features
01
Bespoke Low Phase Noise Generator
Engineered with a reference-tier, ultra-stable master oscillator architecture configured specifically to suppress timing jitter at the structural level.
02
Quad Isolated BNC Outputs
Features four independent, isolated 10 MHz 75 Ohm BNC outputs to synchronize multiple audio components simultaneously without cross-interference.
03
Ecosystem Synchronicity
Acts as the unified clock commander for Core Audio chains, seamlessly locking the Daido server, Karuna DDC, and Denpo DAC into single-phase harmony.

Chapter 01
Design & Philosophy
The engineering philosophy behind the Kagen is rooted in the elimination of jitter and phase noise through centralized timing. While high-quality separate components often feature individual TCXO or OCXO modules, they cannot naturally coordinate with one another. Core Audio utilizes a studio-derived, phase-locked topology that forces every linked component to process digital data packets at the exact same physical instant, curing the temporal smear that undermines digital audio reproduction.

Chapter 02
System Integration

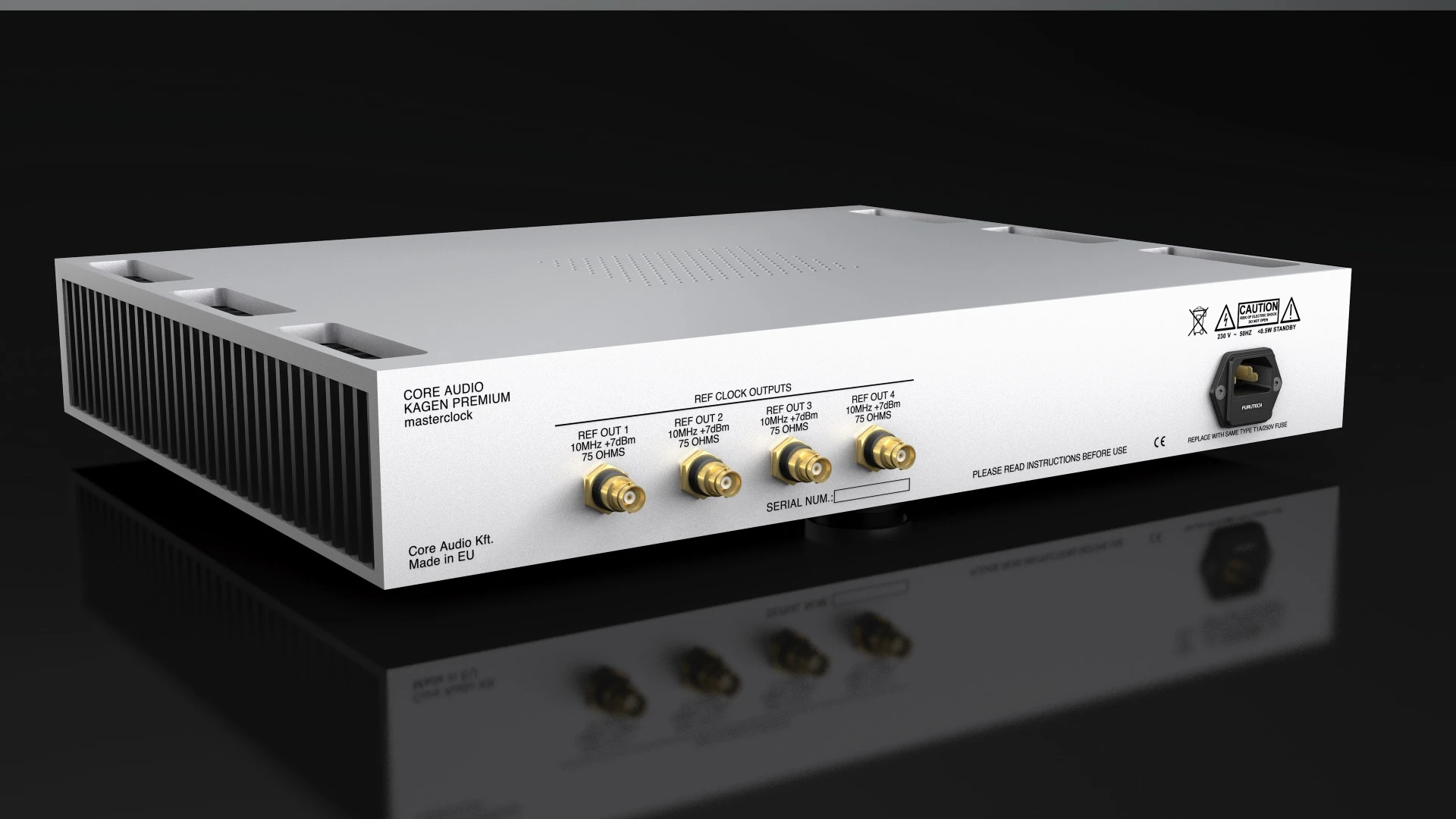

Equipped with four dedicated 75 Ohm BNC clock outputs, the Kagen is built to scale alongside highly complex setups. Connecting even a single digital-to-analogue converter via a standard clock cable yields a tangible audio benefit, but the true masterstroke occurs when the server, re-clocker, and DAC are tied into the same loop, behaving as a single, unified musical organism.

Chapter 03
Listening Notes
Introducing the Kagen to a high-end system does not simply alter the frequency balance; it fundamentally alters the architectural presentation of the recording. The background floor drops into absolute blackness, letting transient micro-details and subtle acoustic reflections reveal themselves naturally. The music takes on an effortlessly human pacing, free from digital fatigue and rich with authentic spatial depth.
Specifications
Output frequency10MHz
No.of outputs4
Output power+4dBm typ. @ 75ohms (1.2Vpp)
Warm-up time3min typ.
Phase noise-130dBc/Hz@10Hz, -155dBc/Hz@1kHz, -160dBc/Hz@10kHz typ.
RMS jitter300fs typ.
Harmonics-30dBc typ.
Frequency accuracy+/-2ppb (Factory set)
Frequency stability+/-10ppb over temperature range
Operating temperature range0 to +50 degC
Type of connectorsBNC 75ohms female (x4)
AC power consumption2W max. ON state, 0.5W max. STANDBY state
Power supply voltageEU 230V AC, 50 Hz (different voltage available for special request)
Fuse specificationT 1A (5x20mm 1ea)
Power consumption40W
Dimensions480mm x 368mm x 88mm
Weight11kg net weight
