ECM 1 MKII High End DAC and Music Streamer

Electrocompaniet — DAC

ECM 1 MKII High End DAC and Music Streamer

Uncannily musical high-resolution network streaming governed by reference-grade balanced analogue engineering.

The ECM 1 MKII bridges the historic, purist traditions of classical analogue amplification with the boundless capability of modern network audio ecosystems. Rather than approaching network streaming as a collection of clinical, mathematical data points, this reference player treats digital files with the exact same circuit-level seriousness reserved for high-end turntables or physical optical transports. It acts as an authoritative digital master control, entirely stripping away the lean, glassy texture that frequently compromises entry-level network audio components. Positioned as the primary, high-performance source component within the brand's celebrated Classic Line, the ECM 1 MKII completely overhauls its digital processing architecture through a newly refined in-house streaming engine. It completely isolates delicate audio pathways from high-frequency network noise, utilising a true balanced configuration and dual reference-grade converters that process the left and right audio channels with complete physical independence. It represents a sophisticated, future-proof command station designed specifically to sit at the core of an ambitious high-fidelity system. Sonically, the ECM 1 MKII separates itself from conventional streaming sources by prioritising an exceptionally wide, organic, and highly dimensional acoustic landscape. It manages complex instrumental layers with an innate sense of rhythmic coherence and time-domain precision, rendering delicate tracking details and spatial venue air from an ultra-quiet, dark-velvet background floor. It trades over-etched, fatiguing analytical sharpness for a natural, rich midband substance and fluid high-frequency decay, making long-term exploration of digital audio deeply communicative and fatigue-free.

Key Features

01

Symmetrical Dual-Mono Conversion

Features two premium Cirrus Logic digital-to-analogue converters configured to manage one channel each, completely optimising channel separation and resolution up to 24-bit/192kHz.

02

Reference Balanced Analogue Stage

Employs a fully discrete, symmetrical analogue output architecture derived from our statement preamplifiers, achieving an exceptionally low noise floor below -145dB.

03

In-House EC Software Engine

Driven by a powerful, custom-developed streaming board that offers native support for Tidal Connect, Qobuz, Spotify Connect, Apple AirPlay 2, and seamless Roon Ready integration.

04

Modular Internal Storage Dock

Outfitted with an internal physical slot that accommodates standard 2.5-inch or 3.5-inch SATA hard drives or SSDs, converting the unit into a self-contained, ultra-low-noise local music server.

The Integrity of Local Storage

Chapter 01

The Integrity of Local Storage

While the ECM 1 MKII operates flawlessly across high-resolution cloud platforms, it introduces a dedicated internal SATA docking bay for audiophiles who demand the absolute peak performance that only locally served files can provide. By hosting your music library directly inside the chassis via an SSD, the system bypasses external network traffic anomalies and data buffering cycles, pulling raw file bits over a direct, shielded interface to preserve maximum dynamic contrast and transient punch.
Classic Line Industrial Architecture

Chapter 02

Classic Line Industrial Architecture

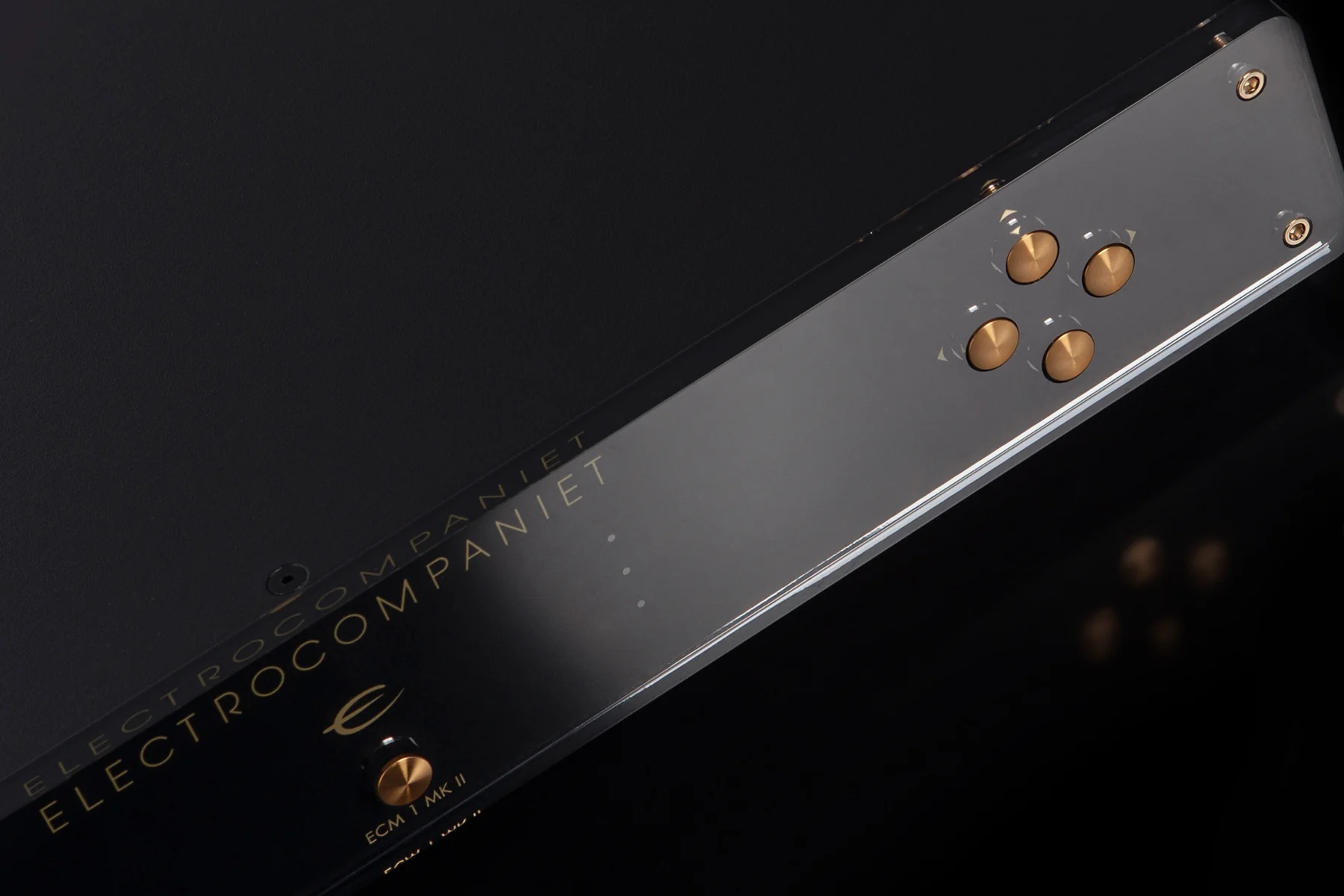

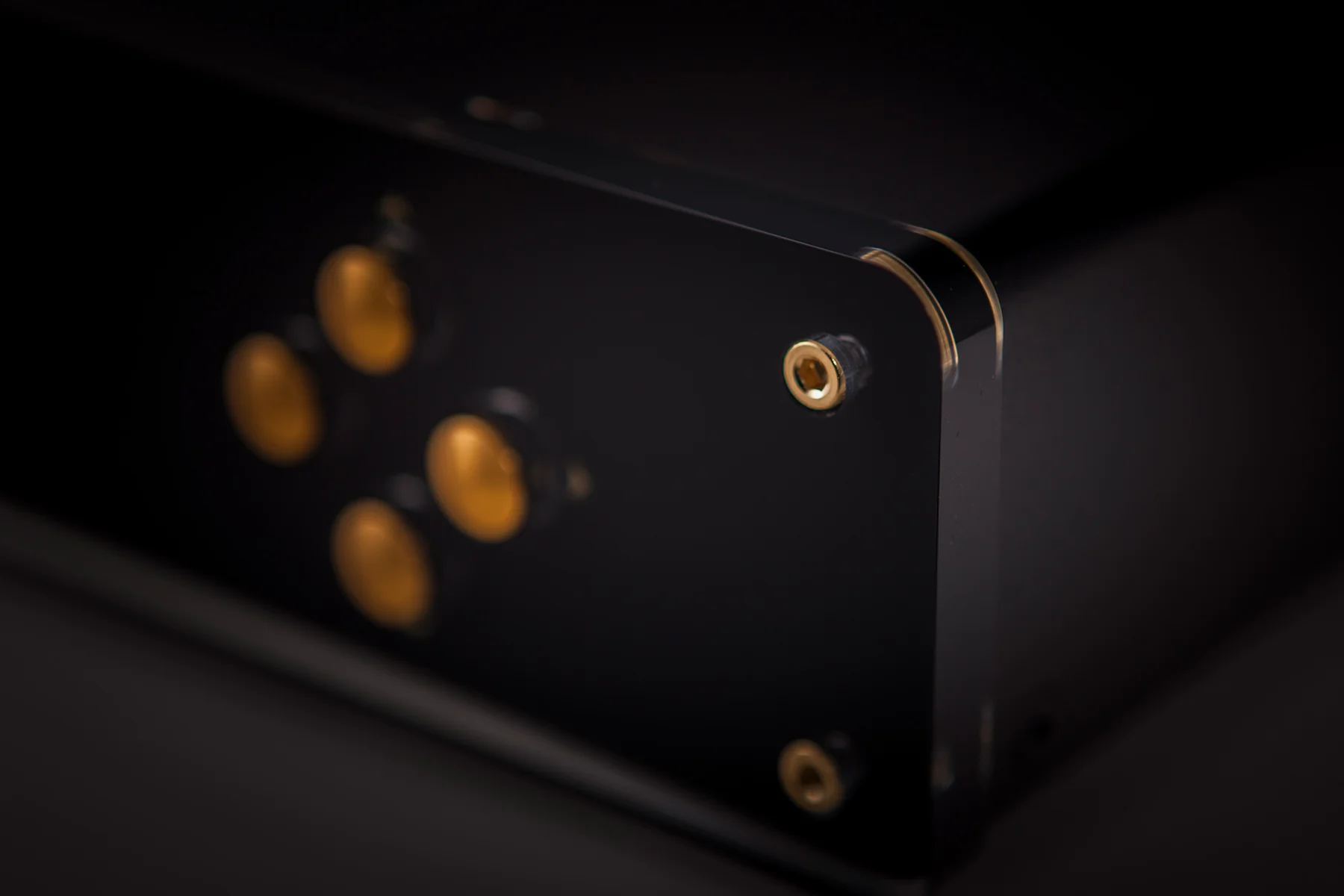

Adhering strictly to Electrocompaniet's historic industrial design, the chassis features the unmistakable 10mm thick acrylic faceplate accented by a highly legible central display and clean brass buttons. The casework is intentionally wide and deep, establishing a low-slung, confident presence on the rack while providing the necessary internal volume to structurally isolate sensitive digital timing clocks from the linear power supply transformer.
Listening Notes

Chapter 03

Listening Notes

When evaluated against complex jazz ensembles and large-scale choral works, the ECM 1 MKII immediately demonstrates an uncanny ability to resolve three-dimensional space and ambient depth. It avoids the clinical, lean presentation typical of modern high-oversampling processors, choosing instead to ground the presentation with a chewy, tactile low-end authority and a silky, non-fatiguing upper-octave extension that lets the recording breathe naturally.

Specifications

No. of channels2
Output Impedance300 Ohms
Noise floor (20 - 20 kHz)< -145 dB
Frequency response 0.5 - 48 kHz
THD+N < 0,0005 %
Upsampling rate192 kHz, 24 bit
Digital/Analog conversion192 kHz, 24 bit
Input sampling rate: 2 x SPDIF Coax, 2 x SPDIF TOSLink 192 kHz, 24 bit; 192 kHz, 24 bit
Network connection:Wi-Fi or LAN
Internal drive:Docking, self installation. 3.5"/2.5" - unlimited capacity.
Supported audio formats:All popular formats including: WAV/WAVE, MP3, AAC+, Vorbis, ALAC, FLAC, APE, AIFF, WMA, up to 192kHZ/24bit, DSD, up to DSD 128 (5.6 MHz)
Supported control interfaces:DLNA, UPnP, Android and iOS remote Internal storage: docking, self installation
Streaming services:• AirPlay 2 ® • Spotify ® Connect • Qobuz ® • Plays with Audirvāna • TIDAL ® Connect • Roon Ready • JPLAY Certified • DLNA • Internet Radio • Bluetooth streaming from any Bluetooth enabled device
Power consumption (no load or signal); standby 50 W; 0.5 W
Dimensions(W*D*H)470mm*381mm*80mm
Weight8.3 kg. / 18 lbs. *(without internal drive)
