EMT · Tonearms
909-HI

EMT — Tonearms

909-HI

Classic broadcast engineering evolved into a premium fixed-headshell design for hi-fi cartridges.

The EMT 909-HI tonearm brings professional broadcast architecture into the modern audiophile space with absolute mechanical poise. As a key standalone entry in EMT's updated component range, this specialized 9-inch design replaces the traditional broadcast connection with a rigidly fixed headshell. This modification expands compatibility beyond proprietary broadcast heads, allowing standard half-inch hi-fi cartridges to benefit from the brand's legendary mechanical foundation. Crafted with exquisite attention to detail, each tonearm is composed of over 150 individual, precision-machined parts manufactured in Switzerland. Solid-milled stainless steel forms the ultra-stable mounting base, while a lightweight aluminum alloy is used for the moving elements to minimize inertia. By avoiding stamped or cast metals, the architecture ensures maximum structural rigidity and flawless resistance to environmental variations. On a sonic level, the 909-HI offers an explosive, dynamic, and wonderfully transparent canvas that allows your chosen cartridge to perform at its peak. The arm ensures a deeply quiet background, revealing fine ambient clues and resolving complex instrumental layers with ease. It maintains a firm, authoritative grip across the entire frequency range, delivering a rhythmically convincing performance that stays true to the source recording.

Key Features

01

Fixed half-inch headshell

Engineered with a rigid headshell for standard half-inch cartridges, featuring a built-in mechanism for accurate azimuth correction.

02

Advanced tension compensating mechanism

A highly integrated ball-bearing design uses hardened, polished steel and custom rubber components to eliminate geometric deviation caused by tightening torque or temperature shifts.

03

Contactless magnetic anti-skating

The skating compensation system utilizes a completely contactless magnetic layout, providing smooth centripetal correction without adding mechanical drag.

04

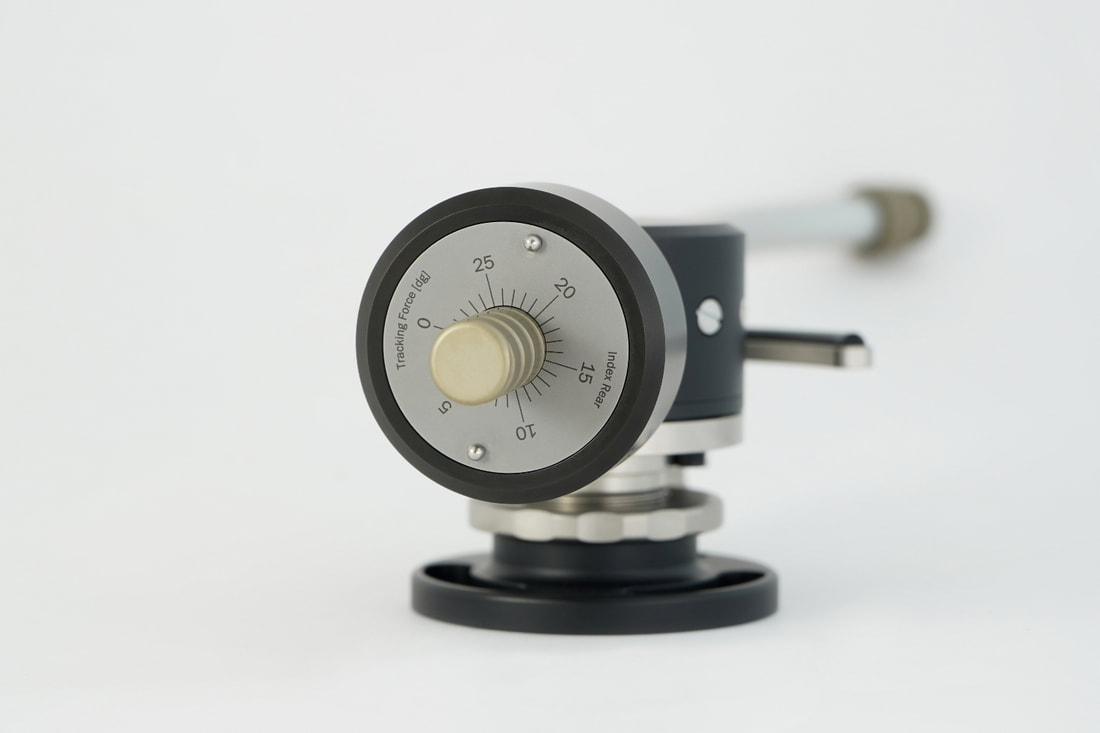

Counterweight with integrated scale

The isolated counterweight includes a resettable zero-scale ring, allowing precise manual tracking force adjustments without strictly requiring an external digital gauge.

05

Fine-pitch VTA adjustment ring

A precision-threaded ring at the tonearm base permits granular control over the vertical tracking angle to match any cartridge profile.

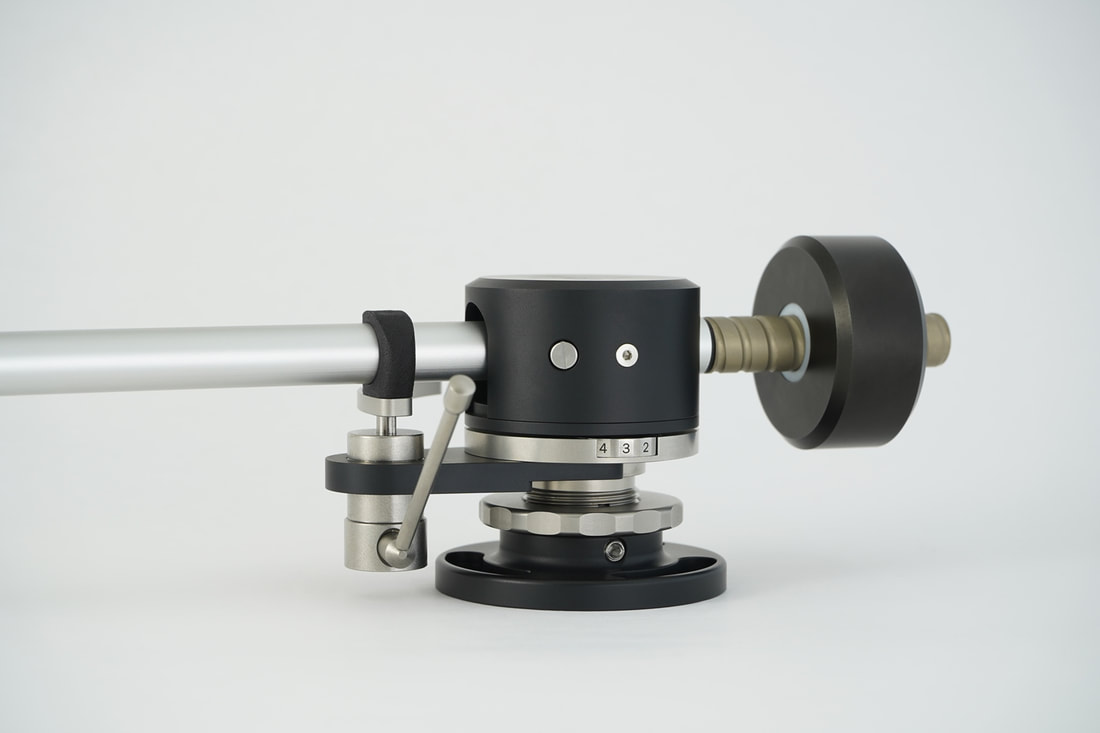

Hi-Fi Cartridge Optimization

Chapter 01

Hi-Fi Cartridge Optimization

While historic EMT tonearms were bound exclusively to broadcast-style plug-in heads, the 909-HI is explicitly tailored for the modern high-end enthusiast. The fixed headshell architecture preserves structural stiffness right up to the cartridge body, while providing full azimuth adjustment. This enables premium audiophile cartridges to trace complex groove modulations with exact channel balance and lowest possible distortion.

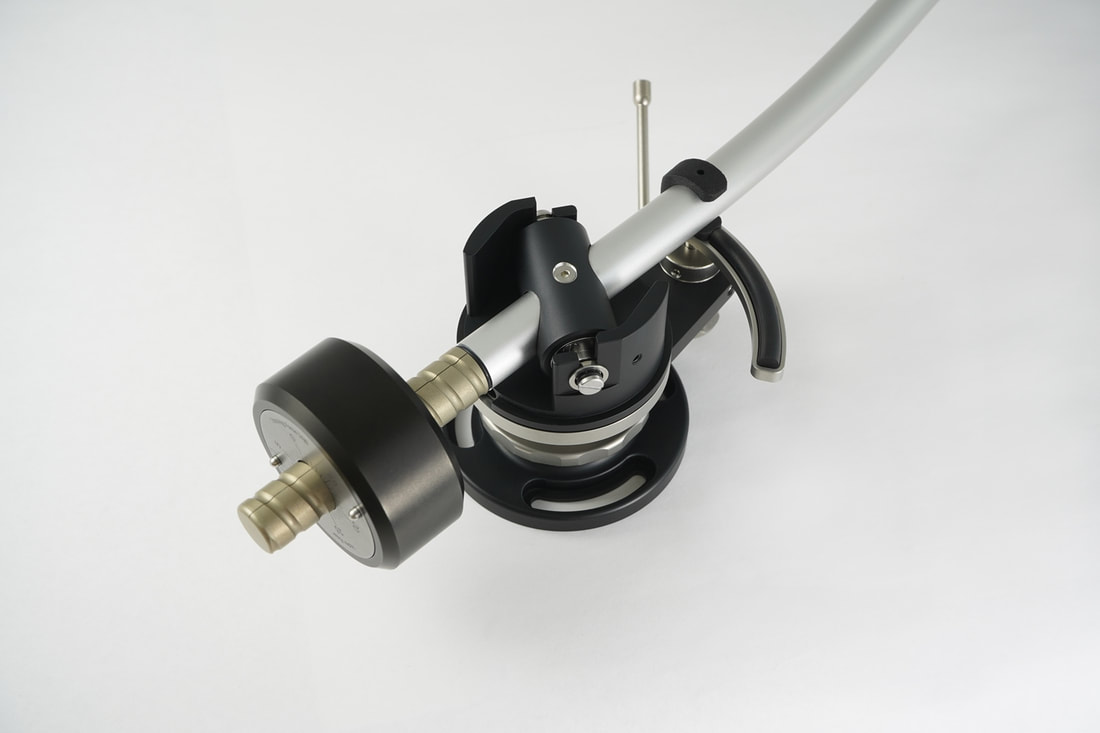

Solid-Milled Construction

Chapter 02

Solid-Milled Construction

Every single structural part within the 150-element assembly is milled from solid stock material to eliminate internal voids and ensure dimensional stability. The heavy stainless steel base forms an inert anchor to ground external vibrations, while the carefully shaped aluminum-alloy arm-tube guides the stylus smoothly without storing resonant energy. The result is an incredibly robust assembly that performs consistently across decades of use.
Listening Notes

Chapter 03

Listening Notes

When tracking difficult pressings, the 909-HI treats music with a sense of effortless, unforced momentum. Complex polyrhythms and dramatic orchestral surges are unfurled with deep acoustic separation and expansive soundstaging. Rather than smoothing over harsh pressings or adding artificial warmth, the arm behaves as an open window, exposing the organic texture, timing, and visceral energy inherent in the vinyl groove.

Specifications

Effektive mass10.2g
Cartridge weight10…25g
Effective length246.75mm
Offset angle22.25°
Overhang16.75mm
Null points120.9 | 66.04mm
Output (Standard)Wire outlet 20cm
Output (Option DIN)5-pin DIN outlet
