NAGAOKA — Cartridges
DJ-03HD
Legendary Japanese precision engineered for the demands of the modern DJ.
Engineered for DJs who refuse to compromise on fidelity, the DJ-03HD brings Nagaoka’s world-renowned micro-manufacturing expertise to the booth. This cartridge is purpose-built to withstand the rigours of professional use, delivering a stable and reliable performance that stands apart in its class.
Positioned as the definitive DJ solution within the Nagaoka lineage, the DJ-03HD marries high-output performance with a refined sonic character. While many DJ cartridges focus solely on durability, this model preserves the hallmark musicality and warmth that Nagaoka is celebrated for globally.
Whether you are mixing in a club or scratching in the studio, the DJ-03HD maintains a secure connection to the groove. Its high output voltage ensures excellent compatibility with a wide range of mixers, providing a clear, punchy sound that cuts through the mix with authority.
Supplied pre-mounted on a high-quality bayonet-type headshell, this cartridge is ready for immediate installation on standard turntable tonearms. It represents a professional-grade upgrade for those seeking a balance of extreme stability and true high-fidelity sound reproduction.
Key Features
01
High-Output Performance
The 6 mV output voltage provides a powerful, clean signal that integrates perfectly with professional DJ mixers.
02
Robust Tracking Stability
Designed with a 3 to 5g tracking force range, it ensures the stylus stays firmly in the groove during backspins and light scratching.
03
Precision Diamond Stylus
The 0.6 mil conical bonded diamond tip is engineered for both durability and precise extraction of detail from vinyl grooves.
04
Ready-to-Play Assembly
Supplied pre-mounted on a professional-grade bayonet-style headshell for effortless setup on Technics and compatible DJ turntables.
Chapter 01

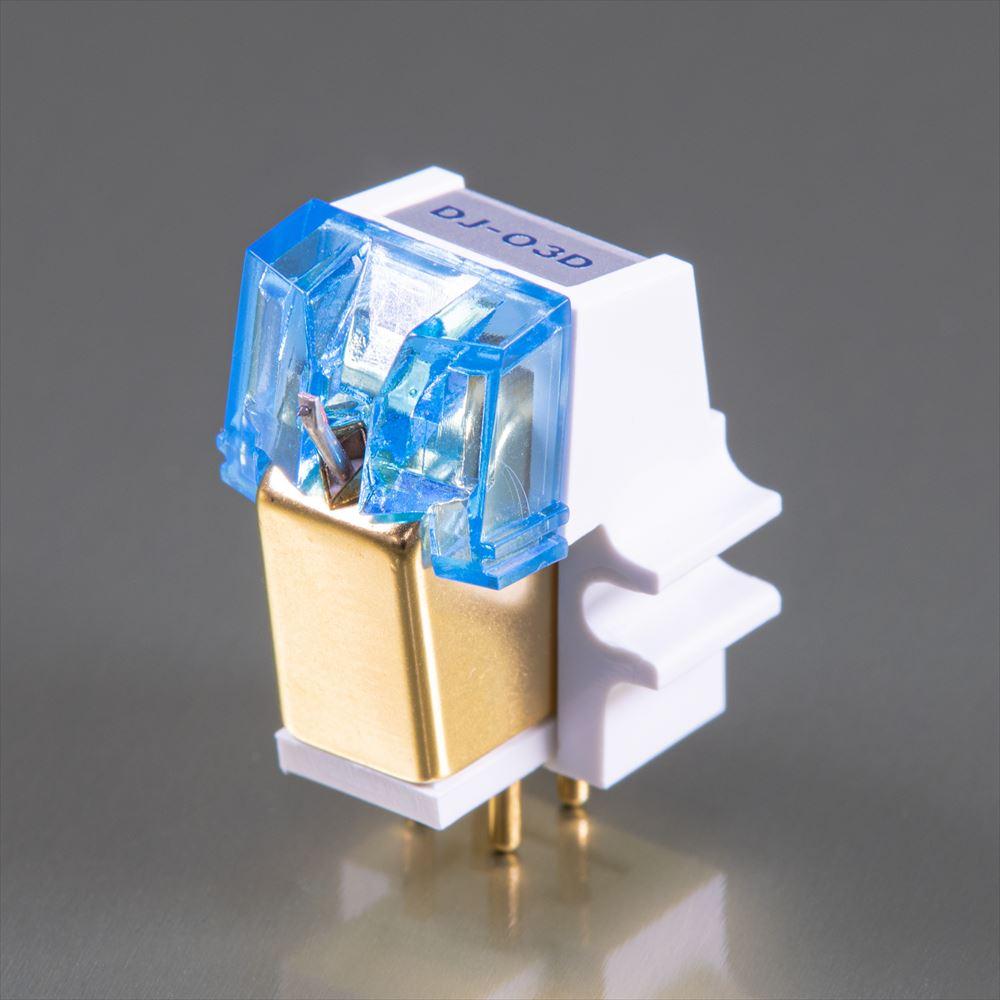

Design & Engineering
Nagaoka’s approach to the DJ-03HD centres on the convergence of high-compliance tracking and stable magnetic circuitry. By utilising an aluminium alloy cantilever and a powerful samarium-cobalt magnet, the cartridge achieves a balanced, energetic sound that remains fatigue-free during long sessions.
Chapter 02

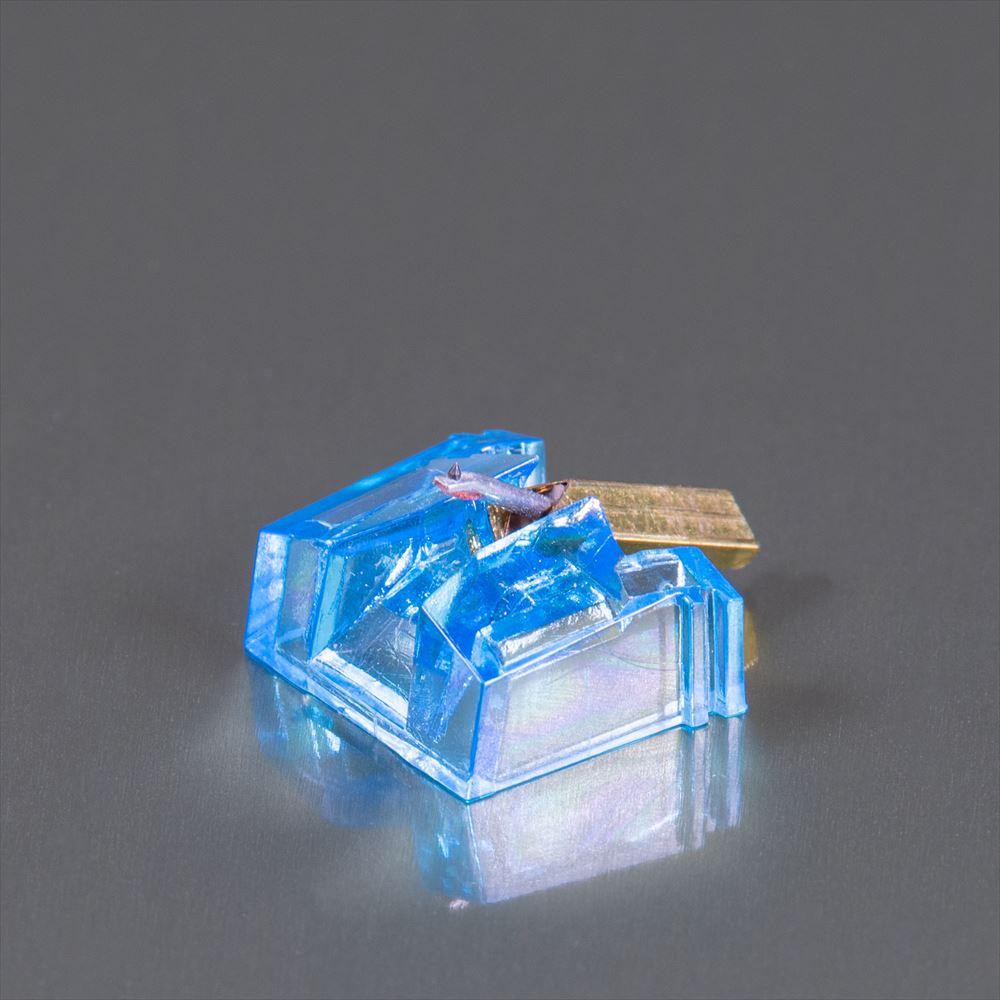

Sonic Signature
While designed for the rigours of DJing, the DJ-03HD retains the natural, warm tonal character associated with Nagaoka’s hi-fi heritage. Listeners can expect articulate, controlled bass and a clear, open top end that gives music a dynamic presence without the harshness often found in other performance cartridges.
Specifications
Frequency response20 Hz – 20,000 Hz
Power / output6 mV (5 cm/sec)
Channel Separation20dB (1kHz)
Channel balance2dB or less
Load Resistance47KΩ
Load Capacity100pF
CantileverAluminum alloy
Needle tip0.6mil cone/joint diamond
Appropriate needle pressure3~5g
Cartridge weight5.1g
Own weight with head shell12.2g
