Soulnote · CD Players / Transport
Z-3

Soulnote — CD Players / Transport

Z-3

The flagship network transport engineered for absolute digital synchronisation.

The Z-3 is a flagship network transport designed to redefine the boundaries of digital audio performance. By eliminating all asynchronous components within the digital signal chain through Soulnote’s revolutionary Zero Link interface, it ensures that only perfectly synchronised, clock-polished data reaches your D/A converter. This approach bypasses the typical bottlenecks of traditional digital playback, resulting in a soundscape of unprecedented clarity, vastness, and temporal precision. At the heart of the Z-3 is a massive 260 VA high-regulation transformer, the same unit utilised in Soulnote’s reference D-3 converter. This provides clean, stable power to four independent non-NFB discrete power supply circuits, ensuring that even the most subtle musical transients are delivered with effortless authority. Every element of the Z-3, from the 16 ultra-high-speed SiC rectifier diodes to the 70 low-magnification electrolytic capacitors, is selected to provide endless expressive power. Engineered for the uncompromising audiophile, the Z-3 offers exceptional versatility. Whether functioning as a dedicated Zero Link network player, a high-quality bridge for computer audio, or a high-definition transport via USB, it maintains an unwavering commitment to musical purity. It is an instrument for those who demand that their digital music collection finally achieves the breathing, vibrant realism typically associated with the finest analogue sources.

Key Features

01

Zero Link Technology

Completely eliminates asynchronous components by transmitting only clock-synchronised signals to the D/A converter.

02

Ultra-Powerful Non-NFB Power Supply

Features a 260 VA large-capacity transformer and 16 ultra-high-speed SiC rectifier diodes for pure, direct power delivery.

03

Flexible Connectivity

Offers three distinct operation modes: Zero Link network player, Zero Link bridge for USB sources, and high-definition network transport.

04

SC-Cut OCXO Clock

An ultra-low phase noise oscillator dedicated to the SFP circuit ensures impeccable timing precision.

05

Non-Rigid Housing

A sophisticated anti-vibration design using titanium washers and spike placement directly under transformers to dissipate mechanical energy.

The Philosophy of Zero Link

Chapter 01

The Philosophy of Zero Link

The Z-3 was developed to resolve the fundamental flaw in digital audio: the reliance on asynchronous clocking. By creating a Zero Link connection, Soulnote has removed the need for the D/A converter to reconstruct the clock from incoming data. This allows the master clock to govern the entire system, resulting in a dramatic leap in transparency and the elimination of jitter-induced harshness.
Build and Materials

Chapter 02

Build and Materials

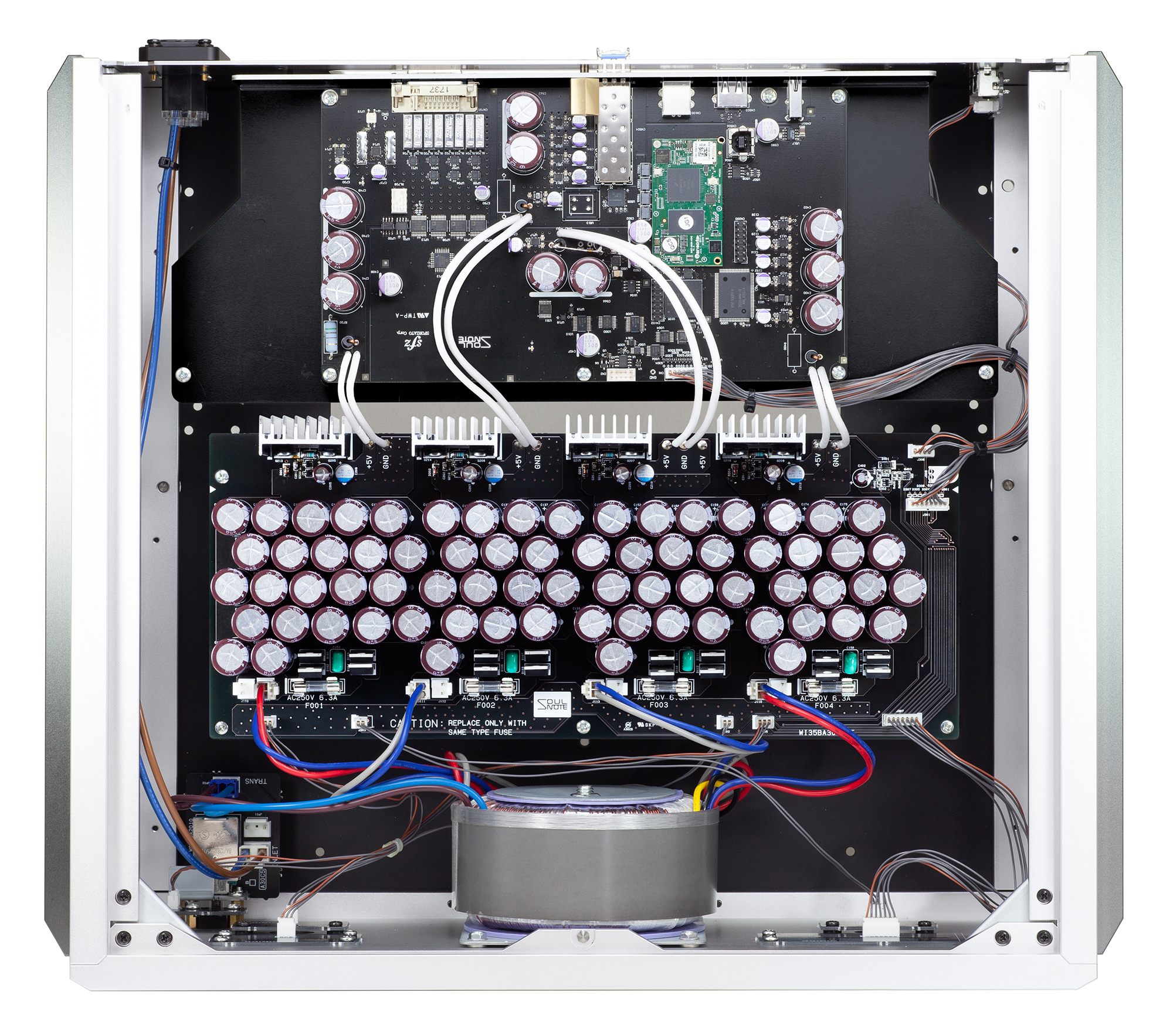

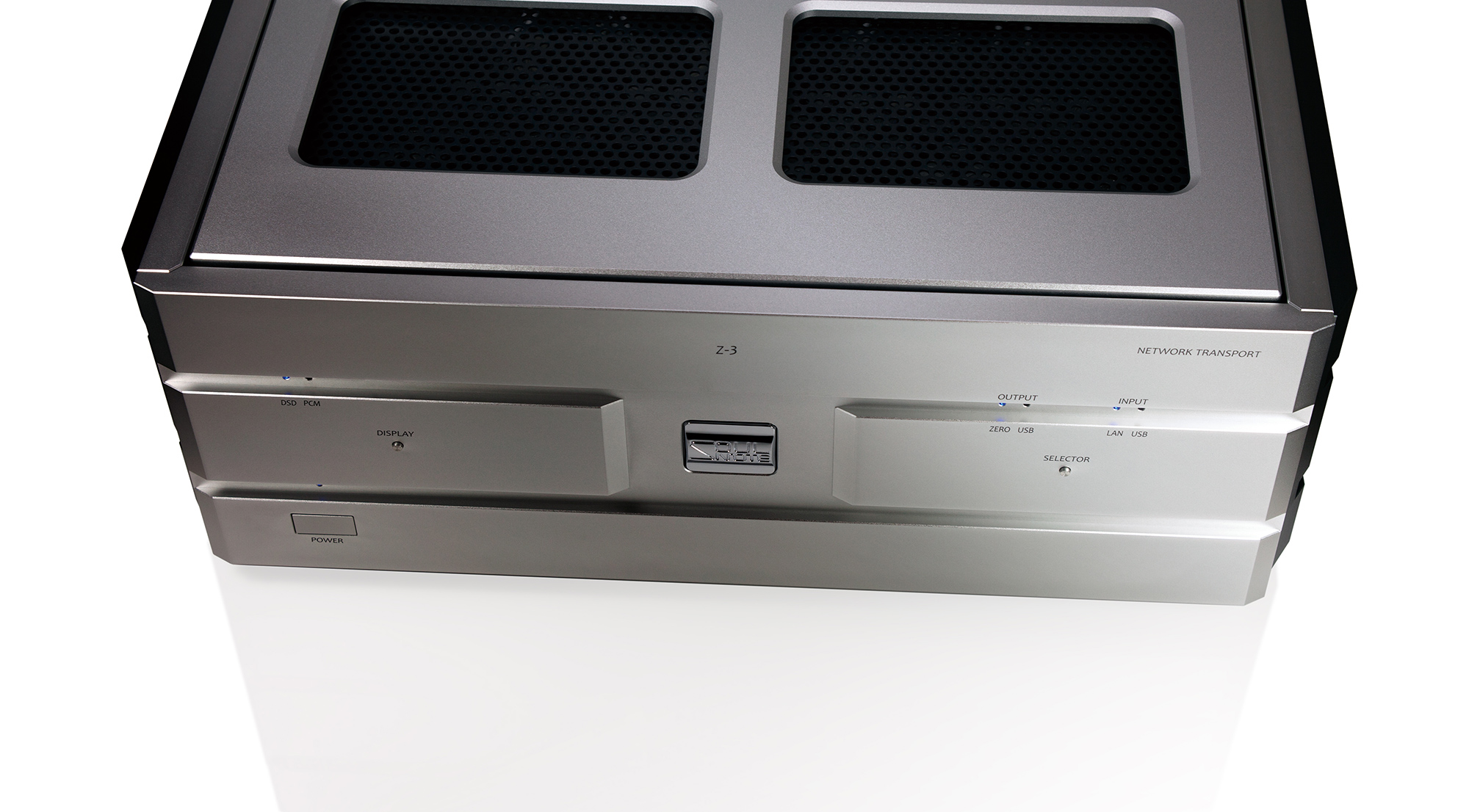

The construction of the Z-3 prioritises sound quality above standard structural rigidity. The unit features an unfixed, floating top cover and circuit board assembly designed to let resonant energy escape naturally. This is complemented by a 260 VA transformer that provides an abundance of headroom, ensuring the transport remains completely unfazed by complex musical demands.
Sonic Signature

Chapter 03

Sonic Signature

The Z-3 provides a playback experience that feels both authoritative and remarkably liquid. It offers an immense sense of scale and depth, with instruments placed in a stable, three-dimensional space that remains focused even during dense crescendos. The presentation is vivid and direct, removing the digital 'veil' and allowing the listener to engage with the music on an emotional level.

Specifications

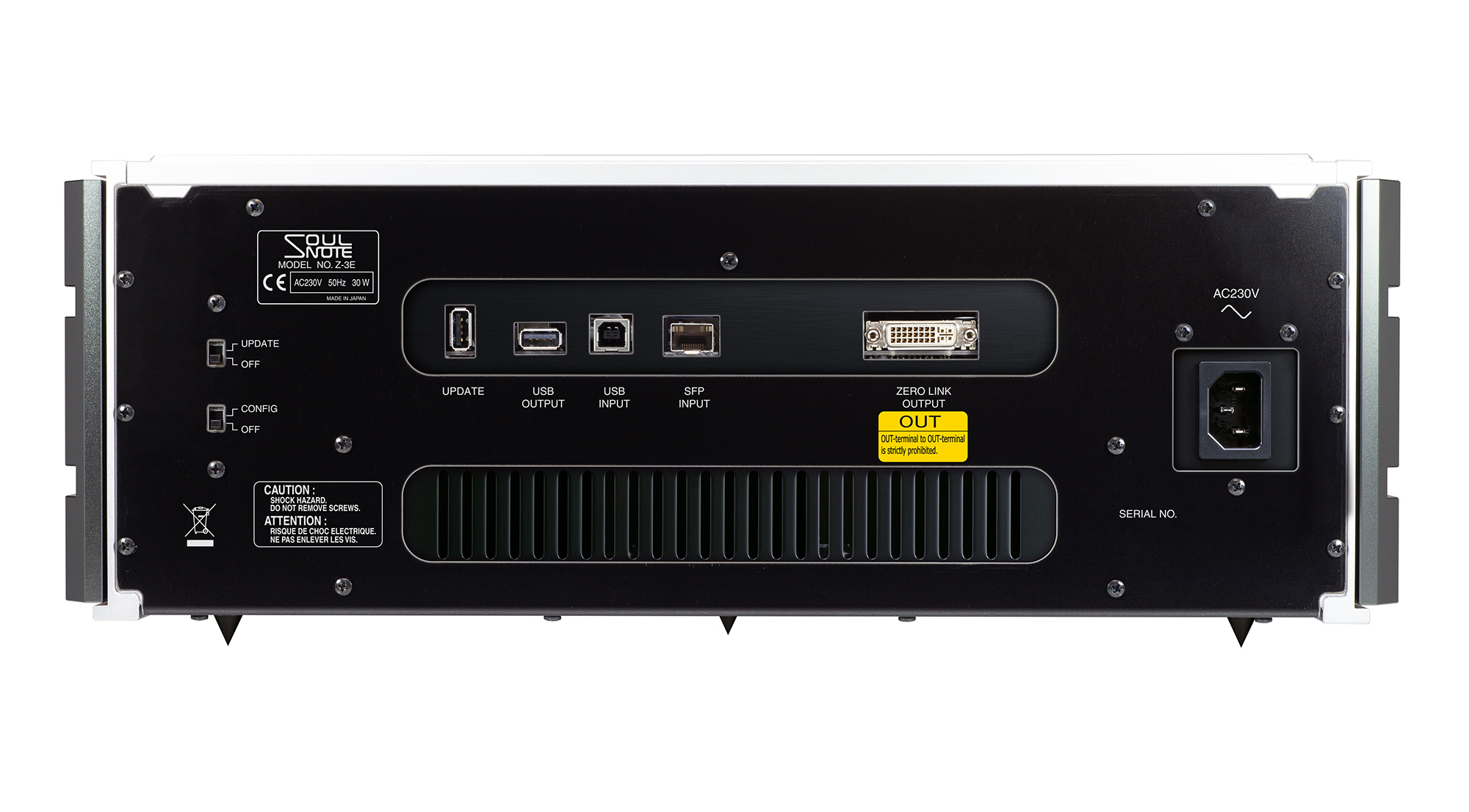

InputSPF, USB
OutputZERO LINK, USB
Supported format (PCM)Maximum 768kHz (AIFF, WAV, FLAC, Apple Lossless, mp3, AAC), 16bit, 24bit, 32bit
Supported format (DSD)Maximum 22,6 MHz (dsf, diff)
Power voltage230V AC 50Hz
Power consumption30W
Maximum external dimensionsMain unit: 454(W) × 174(H) × 393(D)mm
Weight20kg
Included accessoriesSpike Board, spikes, ZERO LINK cable, power cable
