Aries Cerat · Integrated Amplifier
Genus
A definitive Class A single-ended integrated amplifier featuring AC Link technology.
Key Features
01
AC Link Coupling
The input stage uses proprietary AC Link technology to modulate the bias circuit of the output tubes, completely eliminating signal-degrading coupling capacitors from the audio path.
02

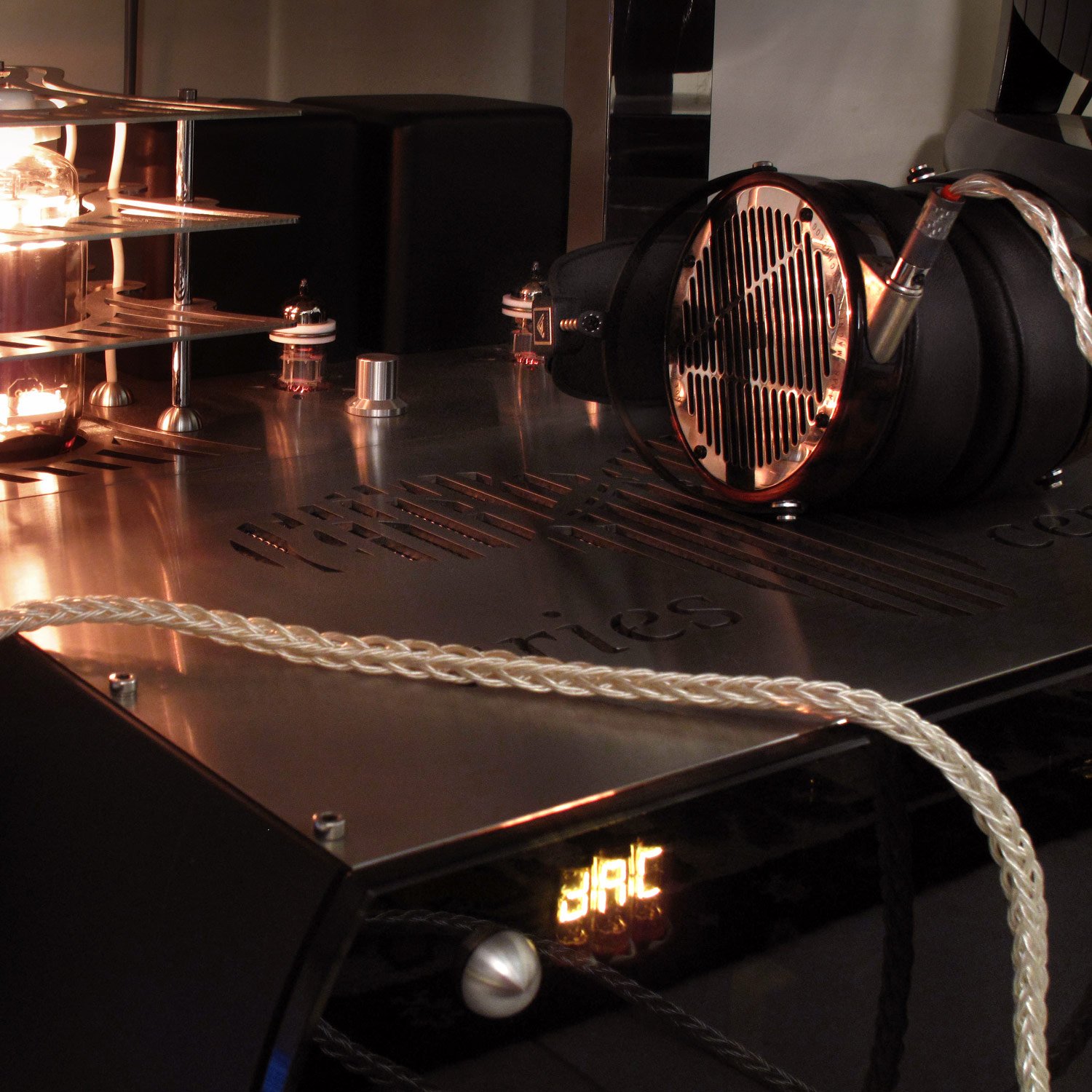

Direct-Drive Headphone Output
The built-in headphone amplifier feeds directly from the main output transformers rather than a compromised secondary circuit. Output impedance is user-switchable for absolute compatibility.
03

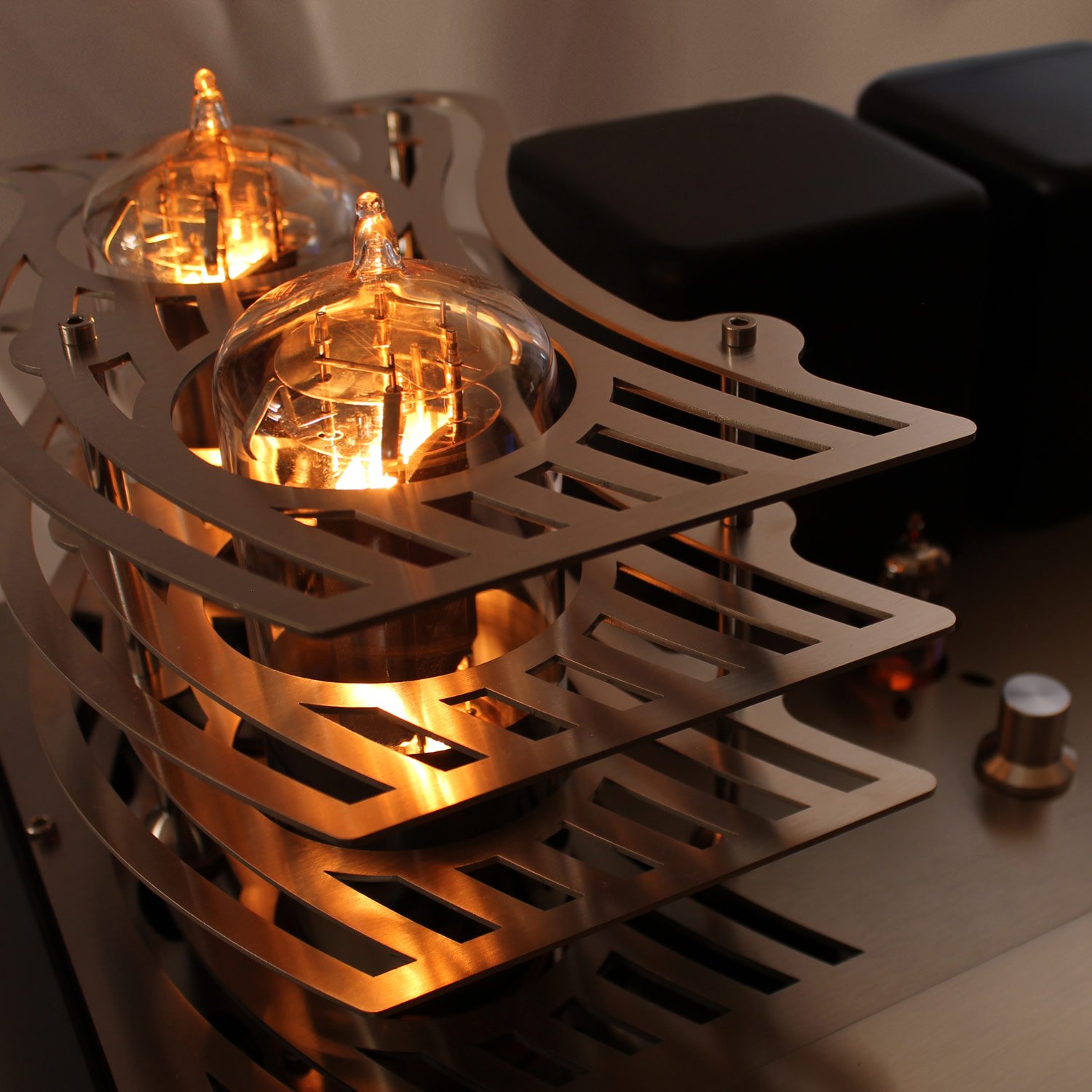

Independent Power Architecture
All four tubes are fed by independent choke-filtered power supplies driven by dual 400VA toroidal transformers. The output stage relies on proprietary film supercapacitors for instant current delivery.
04
Adjustable Tube Biasing
Bias for both the driver and output tubes can be monitored and adjusted on the fly via a built-in meter, allowing users to precisely tune the performance to their preferences.
05
Relay Volume Attenuation
Input selection and volume control are governed by a sophisticated relay-switched resistor system, bypassing the dynamic compression inherent to standard volume potentiometers.

Chapter 01
Design & Philosophy

Chapter 02
Power & Magnetics

Chapter 03
