Exsequor

Aries Cerat · Power Amplifiers

Exsequor

The definitive single-ended triode monoblock for absolute musical truth.

The original Exsequor served as the cornerstone of our electronics development for nearly a decade, and the MKII continues this tradition as our most uncompromising expression of single-ended triode amplification. By rejecting the common industry practice of using small-signal driver tubes, we have built an amplifier within an amplifier to ensure the output stage is driven with absolute authority and zero dynamic compression. The core of the Exsequor is the 813 thoriated tungsten filament tube, which we consider the finest large-format power tube ever produced. It is driven by an 814 directly heated tube, functioning as a complete 14-watt SET amplifier in its own right. This signal is coupled through a bespoke amorphous double-c core bifilar-wound inter-stage transformer, maintaining phase integrity and wide bandwidth across the entire spectrum. The power supply architecture is equally formidable, utilising dual tube rectification and triple-choke filtering with custom low-DCR chokes. Each channel is supported by proprietary SuperFilmCapacitors, providing massive instantaneous energy reserves. Because the directly heated filaments are integral to the signal path, they are triple-filtered and inductively isolated from the power supply, resulting in a vanishingly low noise floor that allows music to emerge from total silence.

Key Features

01

814 Driver Stage

Utilises an 814 directly heated thoriated tungsten tube to deliver 14 watts of Class A power to the grid of the 813s.

02

Transformer-Coupled Topology

Signal is transferred via an amorphous double-c core, bifilar-wound inter-stage transformer for wide bandwidth and minimal distortion.

03

Inductively Isolated Filaments

The filament power supplies are triple-filtered and inductively isolated from the signal path to eliminate ripple and noise.

04

On-the-fly Biasing

Both driver and output stage bias can be monitored and adjusted while music is playing via dedicated knobs and digital displays.

05

Dual-Chassis Isolation

The driver stage and filament power supplies are physically separated to minimise interference with the output stage.

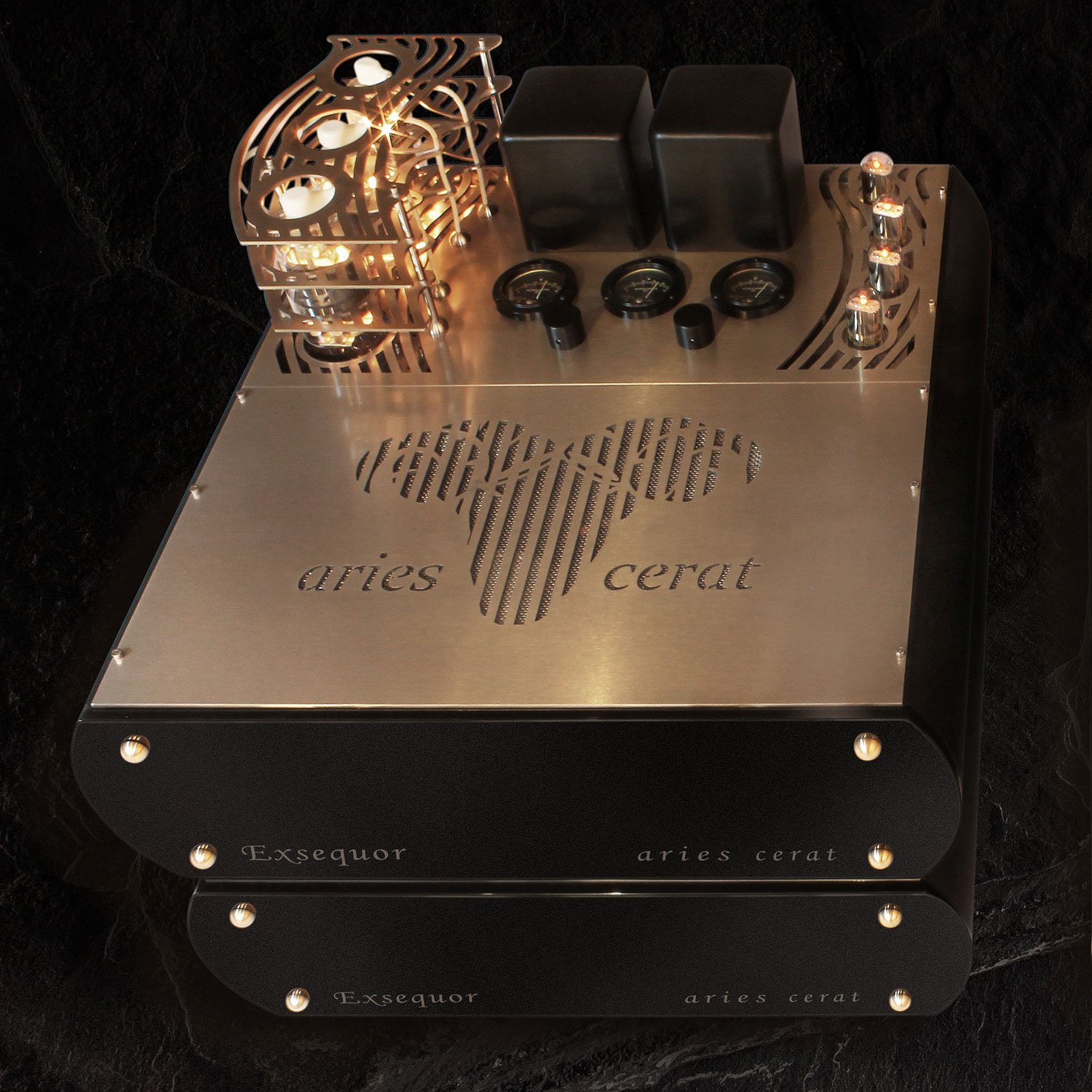

Design & Philosophy

Chapter 01

Design & Philosophy

The Exsequor represents our conviction that SET amplification should never be compromised in dynamic range. By implementing a no-compromise driver-stage design that treats the driver as a complete, independent SET amplifier, we ensure the output tubes are never starved of current, resulting in unmatched transparency.

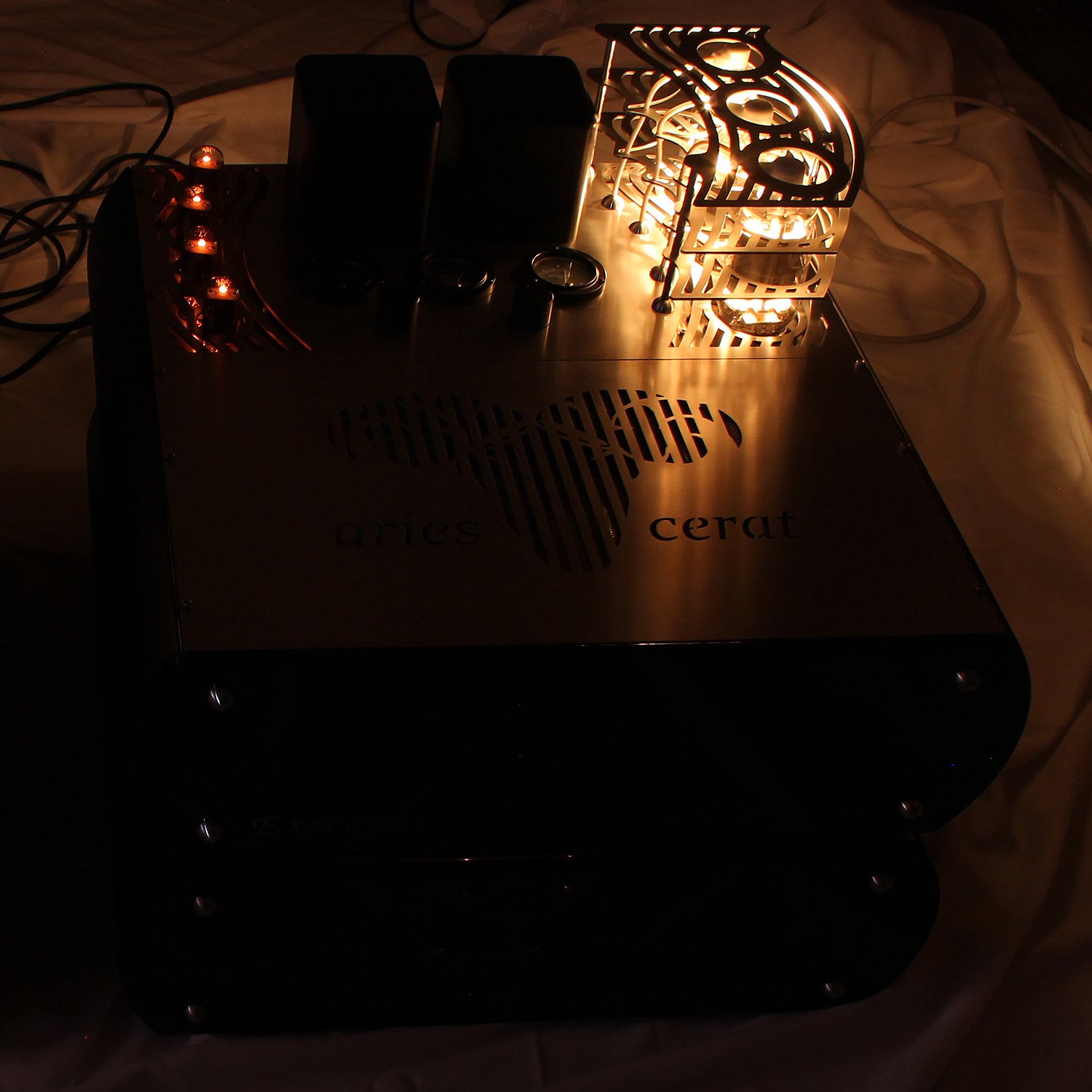

Build & Materials

Chapter 02

Build & Materials

Every aspect of the Exsequor is built to an industrial standard. The power supply utilises high-current dual-tube rectification and massive transformers to support the 813 tubes. With 3,000 joules of energy storage provided by SuperFilmCapacitors, the amplifier delivers effortless current even under the most demanding musical loads.

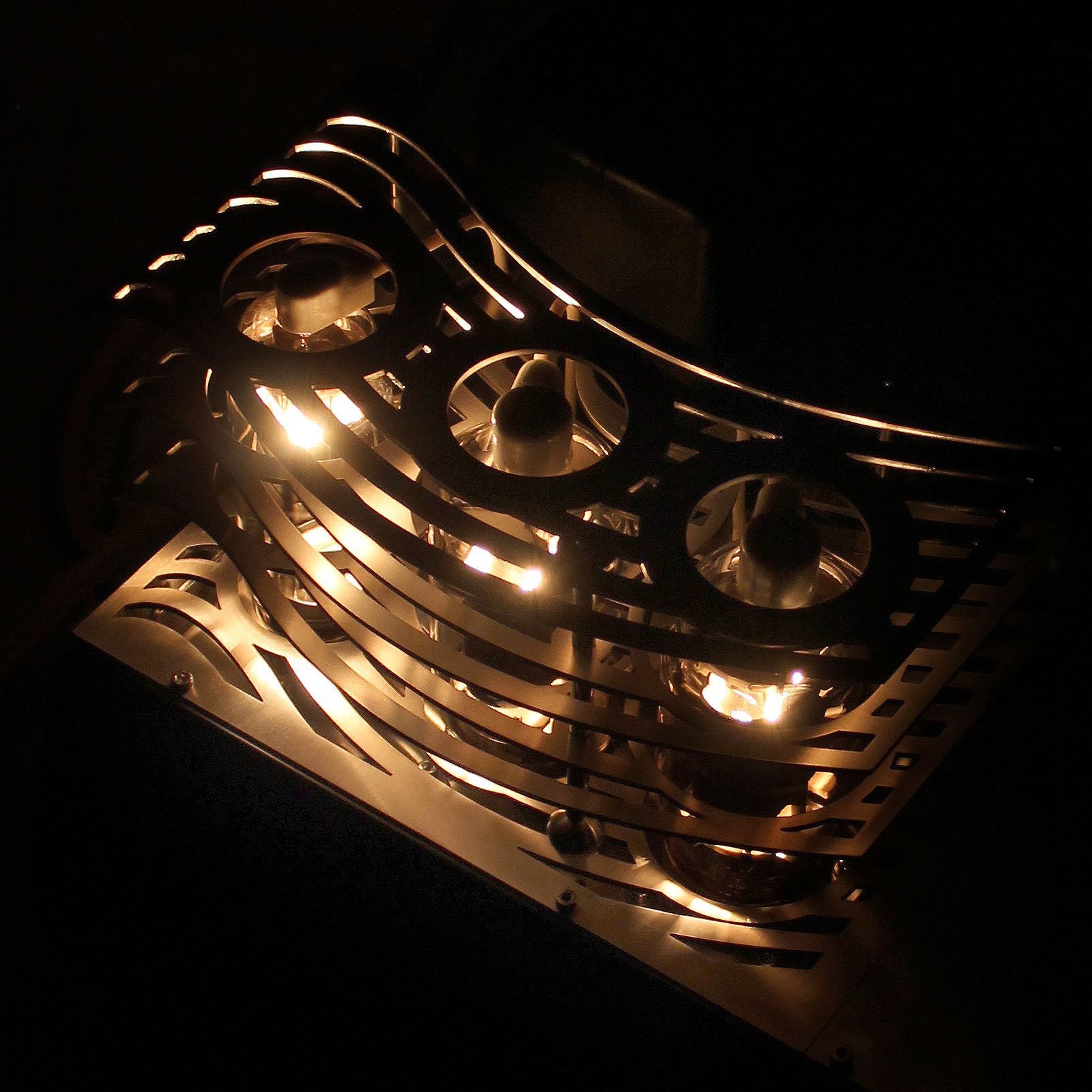

Sonic Signature

Chapter 03

Sonic Signature

The Exsequor provides a masterclass in clarity and 3D imaging. It combines the liquid, organic beauty of the 813 triode with the transient speed and grip of a design free from feedback, driving even the most challenging loudspeakers with effortless grace.

Specifications

Output Power65W
Frequency response15Hz–45kHz (-3dB)
Gainx3 (9.5dB)
Noise floor<105dB un-weighted
Distortion-75dB H2 at 1W
ImpedanceUser-selectable (1.6/0.8/0.4 ohm)
Tube list1 x 814, 2 x 813 (per channel)
Energy storage3000J
Power supply1,800VA transformer
InputsRCA, AC Link proprietary
CapacitorsProprietary film SuperCapacitors
Power Consumption520W per channel
Dimensions (H × W × D)610mm W x 590mm D x 525mm H (2 chassis stacked)
Weight170 kg per channel
