Impera Reference

Aries Cerat · Impera

Impera Reference

A revolutionary inverted triode preamplifier redefining the limits of audio transparency.

Inside the Impera Reference, a completely re-engineered active element changes the fundamental rules of tube amplification. Unlike a traditional vacuum tube where electron flow is impeded by a grid, the proprietary Inverted Triode accelerates electrons towards a wire-grid anode, while a surrounding plate structure pushes them away. This radical topology allows the tube to operate with a fraction of unity gain, resulting in near-zero input capacitance, vastly lower internal resistance, and an exceptional output bandwidth of 2Hz to 500kHz. Positioned as the foundational model within the elite Impera lineage, the Reference maintains an uncompromising approach to power and signal integrity. It houses its robust AC power transformer in a dedicated small external enclosure to eliminate mechanical and electrical interference. The audio signal itself is managed purely through magnetics; volume attenuation is achieved via a bespoke multi-tap input transformer featuring 26 relay-switched taps, bypassing the sonic degradation of resistive potentiometers entirely. The sonic presentation of the Impera Reference is characterised by absolute control and a profound lack of electrical artifact. Because the output stage drives an amorphous Double C-Core transformer without any negative feedback, the resulting sound possesses immense speed and harmonic completeness. It renders the lowest frequencies with physical grip and textural density, while the midrange and upper registers flow with an organic realism that seamlessly disappears into the acoustic space of the recording.

Key Features

01

Inverted Triode Technology

A proprietary amplification device where electron flow control operates entirely differently than standard triodes, functioning as a virtual vacuum state transformer with near-zero input capacitance.

02

Multi-Tap Transformer Attenuation

Volume is governed by a bespoke multi-tap input transformer featuring special bifilar winding, with 26 distinct attenuation steps seamlessly switched by small sealed signal relays.

03

Double C-Core Output Transformer

The inverted triode stage drives a supreme quality amorphous Double C-Core output transformer, engineered with bifilar winding techniques for unhindered frequency extension and transient speed.

04

Quad Choke-Filtered Power Supply

A separate external transformer enclosure feeds four individual special-quality power supplies within the main chassis, equipped with double-choke filtered capacitor banks for a completely silent background.

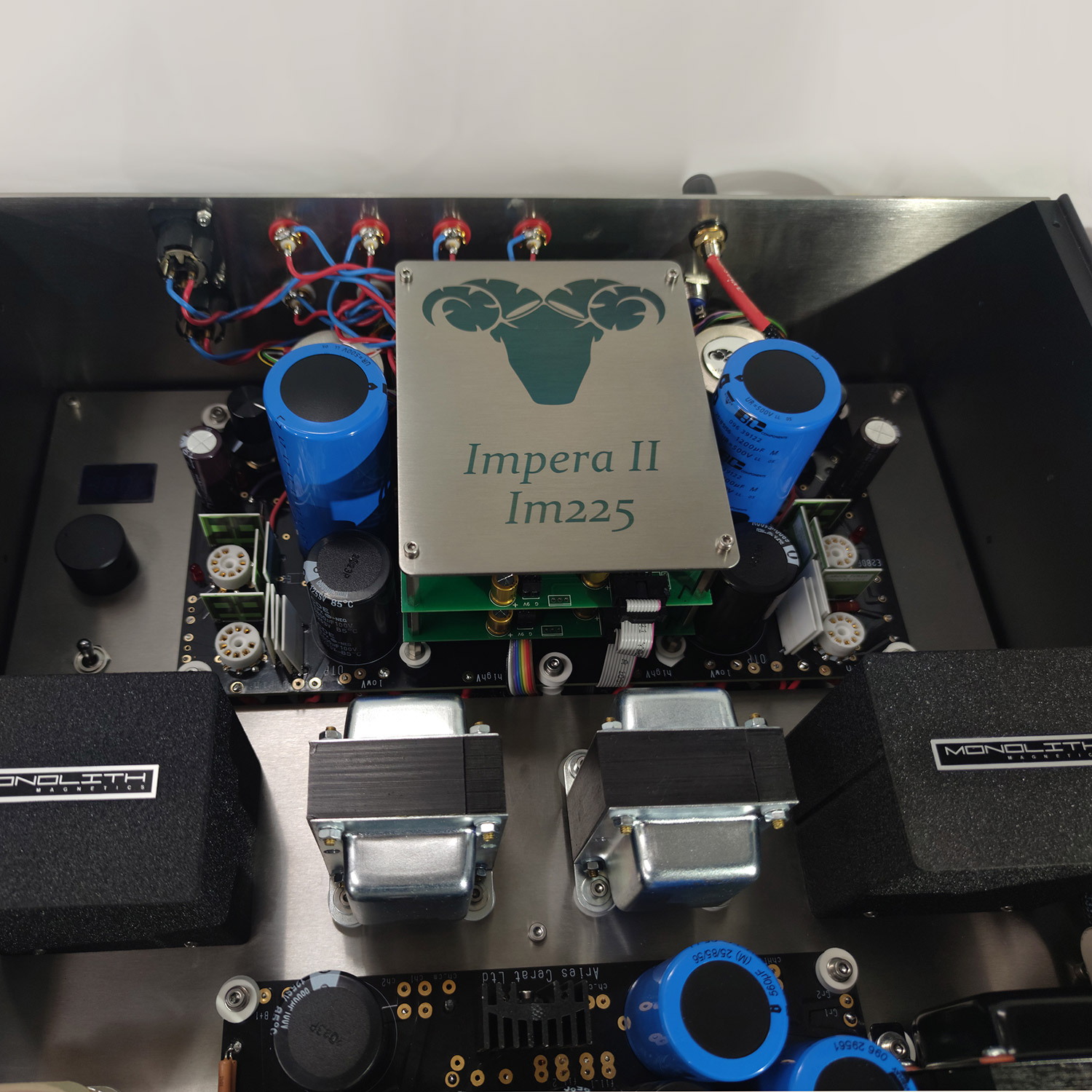

The Inverted Triode Revolution

Chapter 01

The Inverted Triode Revolution

The Impera Reference discards conventional vacuum tube architecture in favour of the Inverted Triode. In a standard tube, the electron stream is physically impeded by a negative grid. Aries Cerat’s design removes this obstacle, instead utilising an enveloping plate structure to shadow the electrical field. This creates an active element with a plate resistance one hundred times lower than a 6SN7 tube and five times the power bandwidth of a classic 300B.

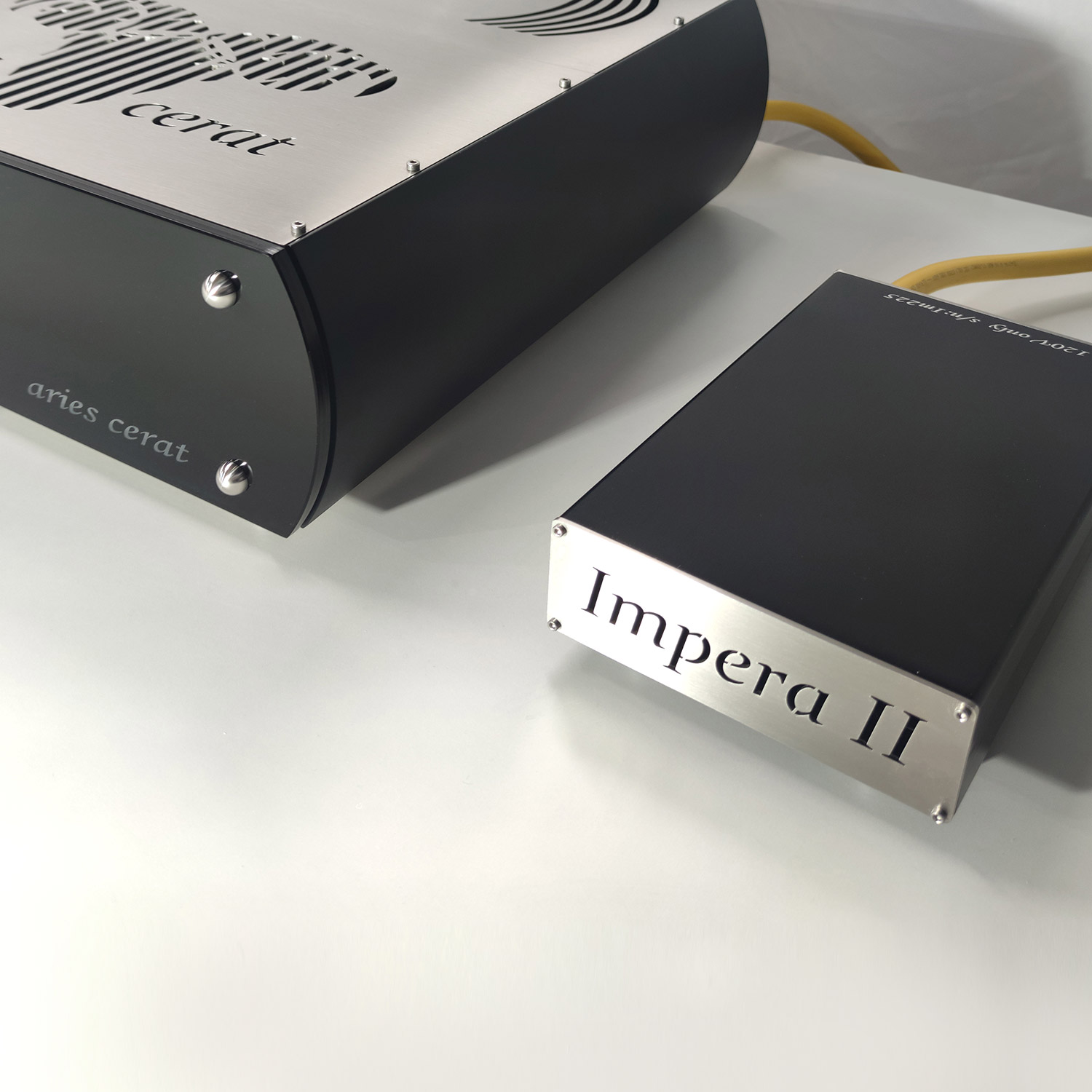

Magnetic Signal Path

Chapter 02

Magnetic Signal Path

Aries Cerat treats the preamplifier as an exercise in magnetic supremacy. Instead of employing resistive volume potentiometers that compress dynamic range, the Impera Reference utilises a uniquely designed multi-tap input transformer for signal attenuation. Combined with an amorphous Double C-Core signal choke and output transformer, the delicate audio signal remains entirely free from the phase anomalies and colouration of traditional resistor-capacitor coupling.

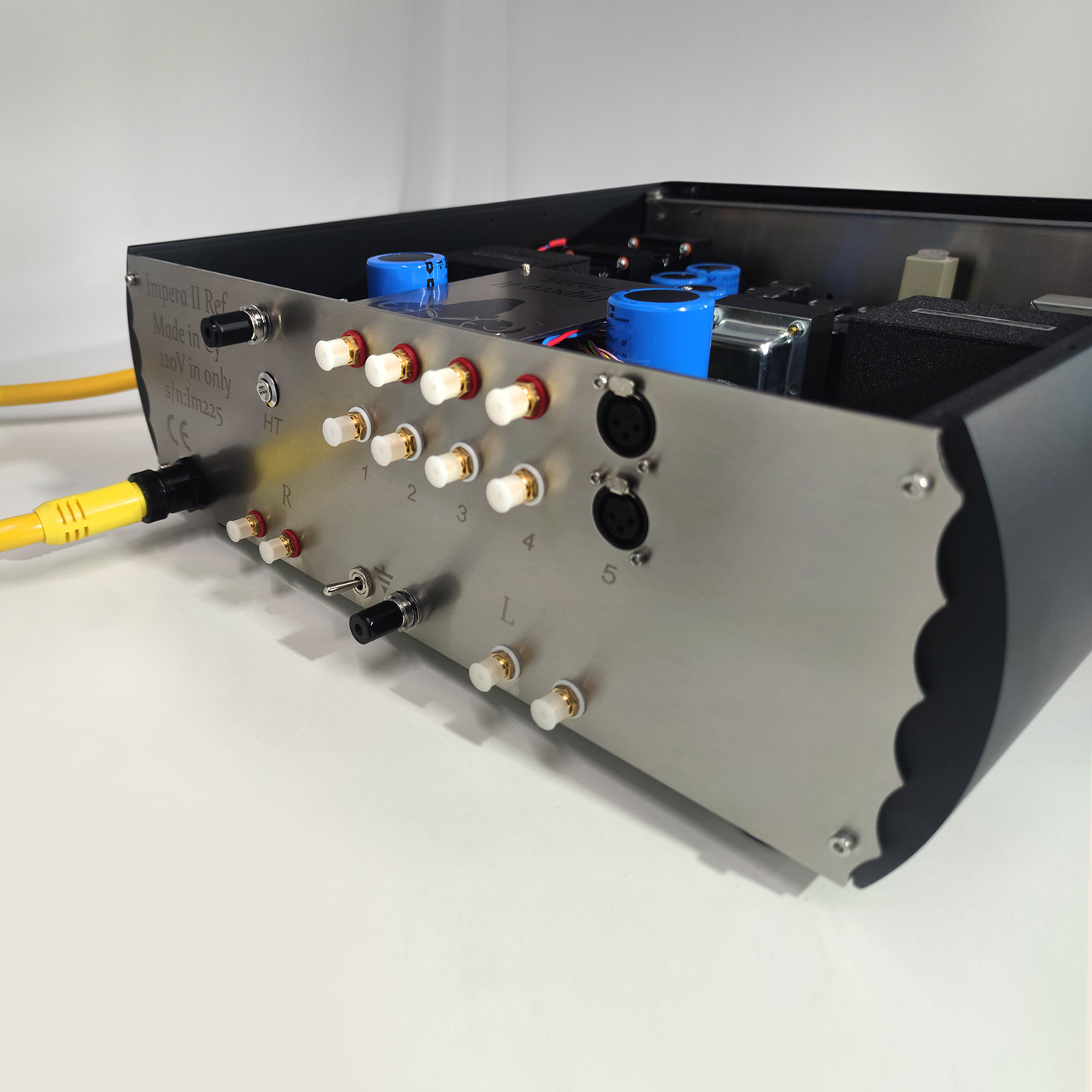

Sonic Signature

Chapter 03

Sonic Signature

The profound engineering of the Impera Reference translates into an unforced, holographic listening experience. Listeners consistently note its ability to deliver fast, articulate dynamics alongside the delicate, organic midrange bloom expected of the finest single-ended triode designs. The vanishingly low noise floor and extreme 500kHz bandwidth ensure that spatial cues, rhythmic pace, and harmonic overtones are reproduced with striking realism and authority.

Specifications

Frequency response2Hz to 500kHz (output stage bandwidth)
Maximum gainx7
Attenuation methodMulti-tap input transformer
Inputs5x unbalanced (balanced optional), 1x HT pass-through
Outputs15V RMS max unbalanced (balanced optional)
Power supplyDouble choke filtered quad power supplies
Weight110 kg (unpacked total weight)
