Symphonia Aeris

Aries Cerat · Symphonia

Symphonia Aeris

Uncompromising zero-diffraction horn architecture delivering true full-spectrum acoustic realism.

The Symphonia Aeris represents a profound evolution in Aries Cerat’s acoustic engineering, standing as a definitive expression of their flagship horn architecture. Designed to solve the inherent flaws of traditional horn theory, this loudspeaker moves beyond conventional folded structures and conical flares. By maintaining a constant curvature through 360-degree bullet-shaped horns, the Aeris operates as a flawless acoustic impedance transformer, free from the mechanical losses or frequency ripples that plague typical designs. At the core of the speaker’s performance is its astonishing time-domain accuracy. A custom RAAL ribbon tweeter is loaded into a unique zero-diffraction horn, seamlessly integrating with a massive four-inch titanium midrange driver backed by an 11-kilogram magnetic motor. This array eliminates the secondary sound emissions and transient smearing commonly known as horn shout, perfectly bridging the gap between compression-driver authority and ribbon-transducer delicacy. Anchoring the system is a 3.3-metre folded tractrix bass horn crafted from stacked, CNC-machined plywood. This immensely rigid structure easily withstands extreme internal acoustic pressures, producing deep, visceral bass with vanishingly low resonance. Hand-finished in the exclusive Aeris treatments, featuring striking metallic or liquid copper horns against natural wood veneers, this speaker is both a visual masterpiece and an uncompromising reference transducer.

Key Features

01

Zero-Diffraction Solid Wood Horns

Custom 360-degree flares completely eliminate diffraction-induced colouration and transient smearing across the mid and high frequencies.

02

3.3m Tractrix Bass Horn

Constructed from vertically stacked, CNC-carved plywood sheets for ten times the stiffness of conical designs, ensuring deep bass without cabinet resonance.

03

Modified RAAL Ribbon Tweeter

A true aluminium foil transducer loaded into a custom horn to combine delicate high-frequency resolution with extreme dynamic capability.

04

4-Inch Titanium Midrange

Driven by an oversized 11kg magnetic motor and adjustable via a multi-tap transformer for precise room acoustic integration.

05

Constant Group Delay Crossovers

External proprietary filter networks shape phase and attenuation to deliver near-perfect time-domain alignment across all three drivers.

Engineering Philosophy

Chapter 01

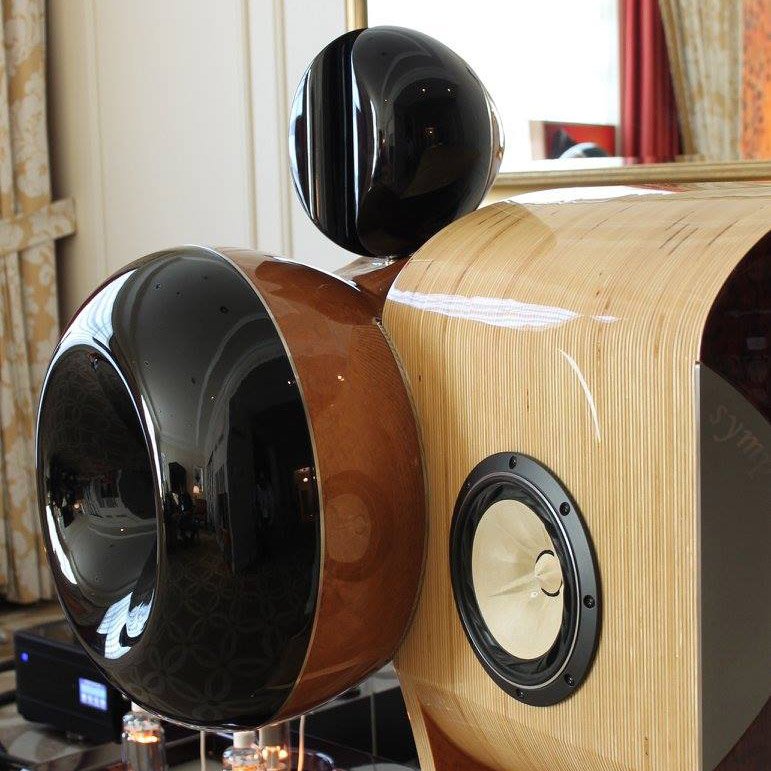

Engineering Philosophy

The Symphonia Aeris was born from a rigorous research project aimed at eliminating diffraction, the secondary sound emission responsible for the characteristic horn sound. By employing advanced modelling, Aries Cerat developed 360-degree, constant-curvature flares. This true tractrix geometry ensures that the speaker converts electromagnetic energy to sound without the time-domain smearing or colourations inherent to standard flat-panel folded designs.
Build & Construction

Chapter 02

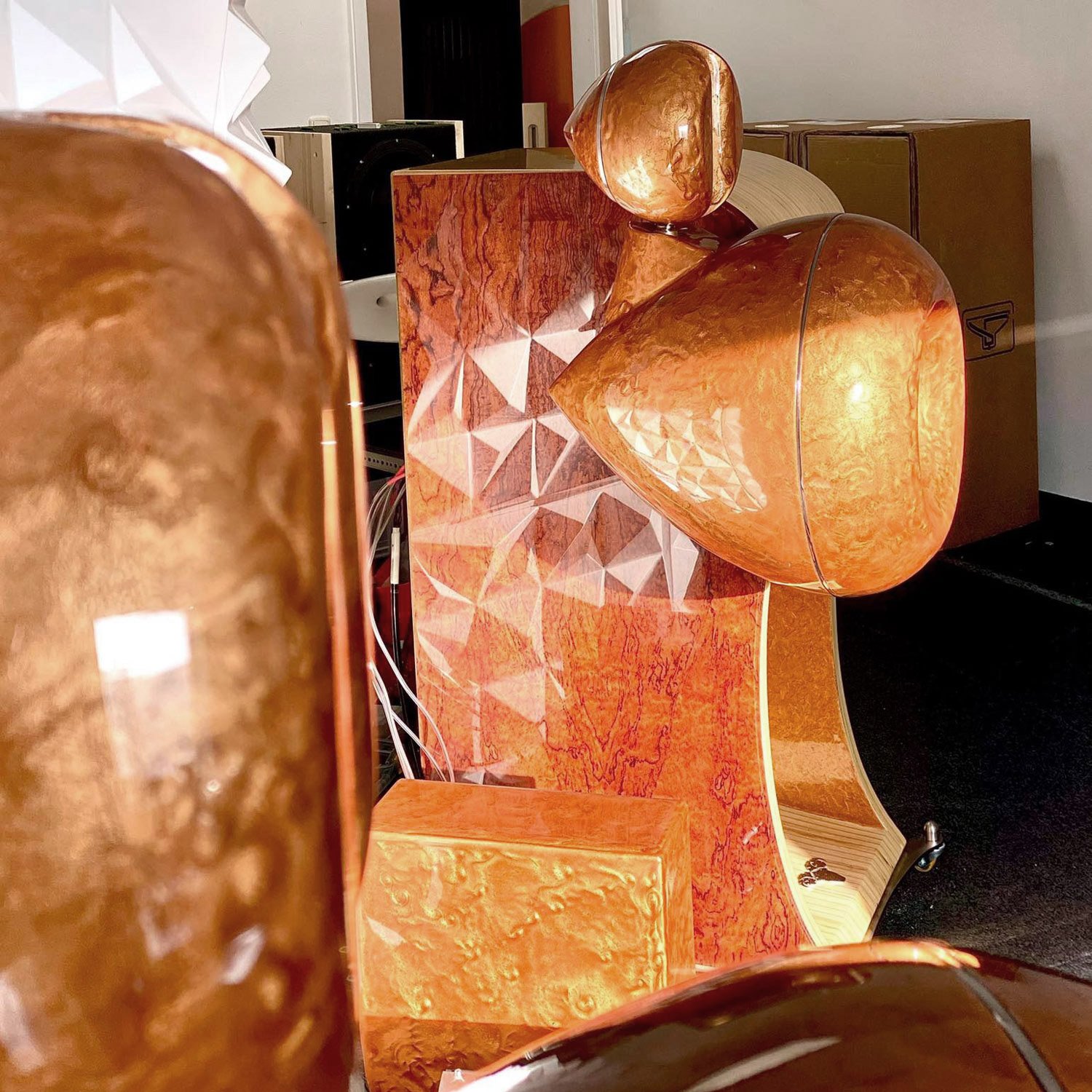

Build & Construction

Constructing a horn capable of withstanding massive internal acoustic pressure requires extraordinary structural integrity. The 3.3-metre bass horn uses thick, vertically stacked sheets of CNC-carved plywood, providing ten times the stiffness of a standard folded horn. The midrange and treble flares are similarly uncompromising, machined from solid blocks of poplar plywood for superior strength-to-weight ratio and acoustic damping. The exclusive Aeris editions elevate this construction further with striking bronze metallic or liquid copper finishes.
Sonic Signature

Chapter 03

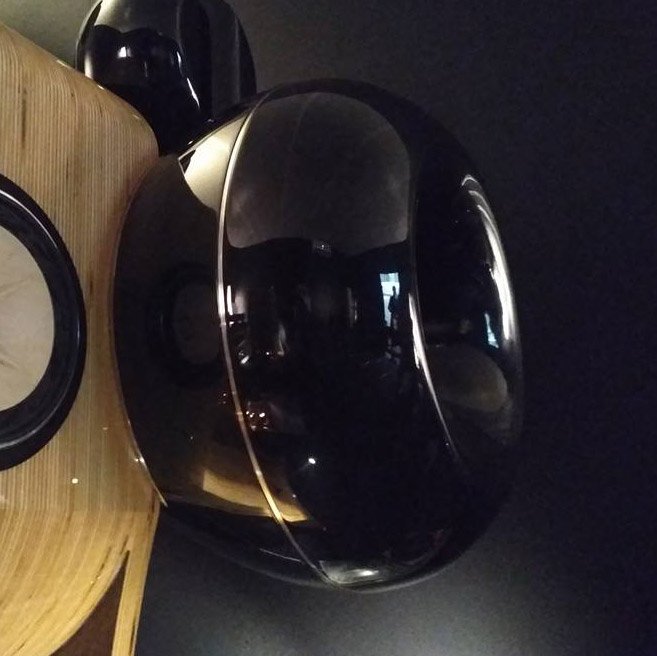

Sonic Signature

The Aeris delivers a listening experience defined by its complete lack of a sonic footprint. It avoids the boxy or aggressive qualities of typical high-efficiency speakers, presenting a vast, holographic soundstage that is fluid, lightning-fast, and entirely coherent. With 101dB sensitivity, it effortlessly reproduces the explosive dynamics and physical weight of a live performance while retaining the delicate micro-dynamic resolution expected of a reference ribbon transducer.

Specifications

High frequency transducerRAAL Ribbon tweeter with modifications, housed in a 360° flare with lateral adjustment
Midrange Horn Unit4-inch compression driver, oversized magnets, CNC machined solid plywood enclosure
Bass UnitTractrix horn loaded enclosure, custom internal 3.3 metre horn exiting to a large mouth
CrossoverCustom 3-way constant group delay filters with adjustable gain for room tuning
Sensitivity101dB
Frequency response32Hz - 100kHz (-3dB), ±0.5dB at 250Hz - 20kHz
Dimensions (H × W × D)1400 × 930 × 880 mm
Weight170 kg per channel
Paint finishes Aeris versionBlack with Bronze Metallic horns, wood veneer bass unit sides
Paint finishes Custom Aeris versionLiquid Copper finish for horns, wood veneer bass unit sides
