Triton Evo

Ayon Audio · Integrated / Evo Integrated

Triton Evo

Pure class A triode performance with authoritative power and holographic imaging.

The Triton Evo sits at the pinnacle of the Ayon Audio integrated amplifier range, meticulously crafted to bridge the divide between clinical precision and soulful musicality. As a true reference-grade component, it has been engineered with a completely redesigned driver stage and an advanced power supply to ensure the shortest possible signal path, free from the interference of solid-state devices or negative feedback. At the core of its design philosophy is the conviction that the most complex musical signals require the simplest circuit topologies. By utilizing a zero-feedback, pure Class A circuit, the amplifier preserves the transient speed and harmonic richness of the original studio recording. Whether operating in triode or pentode mode, the Triton Evo maintains a stable, controlled grip over even the most demanding loudspeaker loads. The sonic character is defined by a rare combination of weight, fluidity, and three-dimensional transparency. It projects an expansive soundstage where instruments are placed with pinpoint accuracy, delivering a natural, fatigue-free presentation. From the deepest bass transients to the finest high-frequency textures, the amplifier provides an authoritative, coherent, and deeply immersive listening experience that reveals the true intent behind every performance.

Key Features

01

Switchable triode and pentode modes

Allows for immediate adaptation to different loudspeaker sensitivities and musical genres, providing both refined intimacy and powerful dynamic punch.

02

Zero negative feedback topology

Ensures the signal remains pure and untainted, resulting in superior transient speed and the preservation of low-level harmonic information.

03

Dual choke filtered power supply

Provides total isolation between input and output stages, creating a silent backdrop that allows for greater resolution and clearer musical articulation.

04

Super-wide bandwidth output transformers

Custom-engineered to deliver deep, controlled bass while maintaining high-frequency speed, ensuring a linear and natural square wave response.

05

KT150/KT170 compatibility

Designed to leverage the latest high-performance power tubes for enhanced stability, current delivery, and overall sonic authority.

Engineering Philosophy

Chapter 01

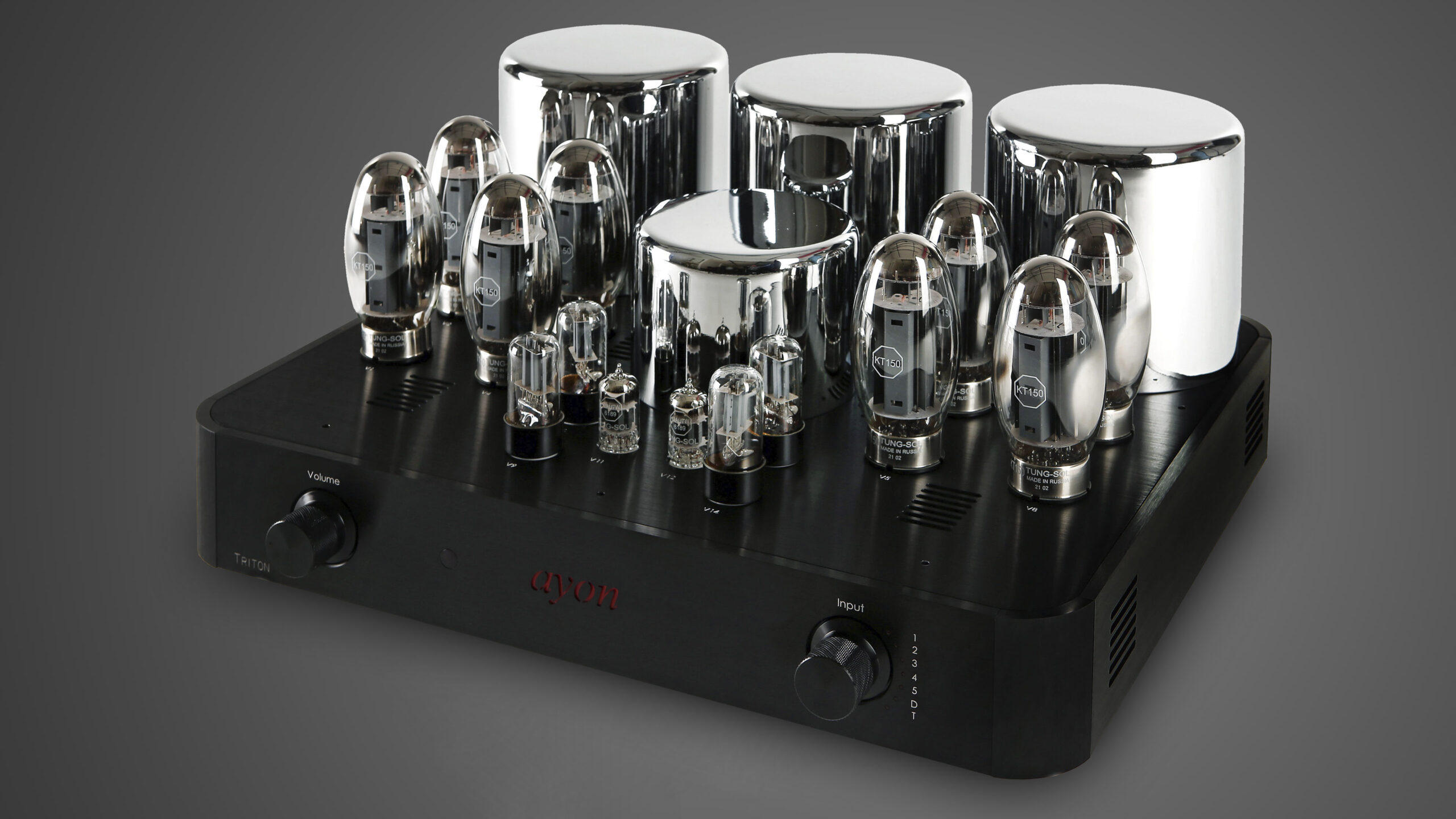

Engineering Philosophy

The Triton Evo is built on the belief that the shortest signal path is the most effective. By stripping away non-essential solid-state circuitry and avoiding negative feedback, Ayon Audio creates a direct, honest connection between the digital or analog source and the speakers. This commitment to simplicity is supported by a sophisticated grounding system that provides the necessary stability for the high-current demands of modern music reproduction.
Build & Materials

Chapter 02

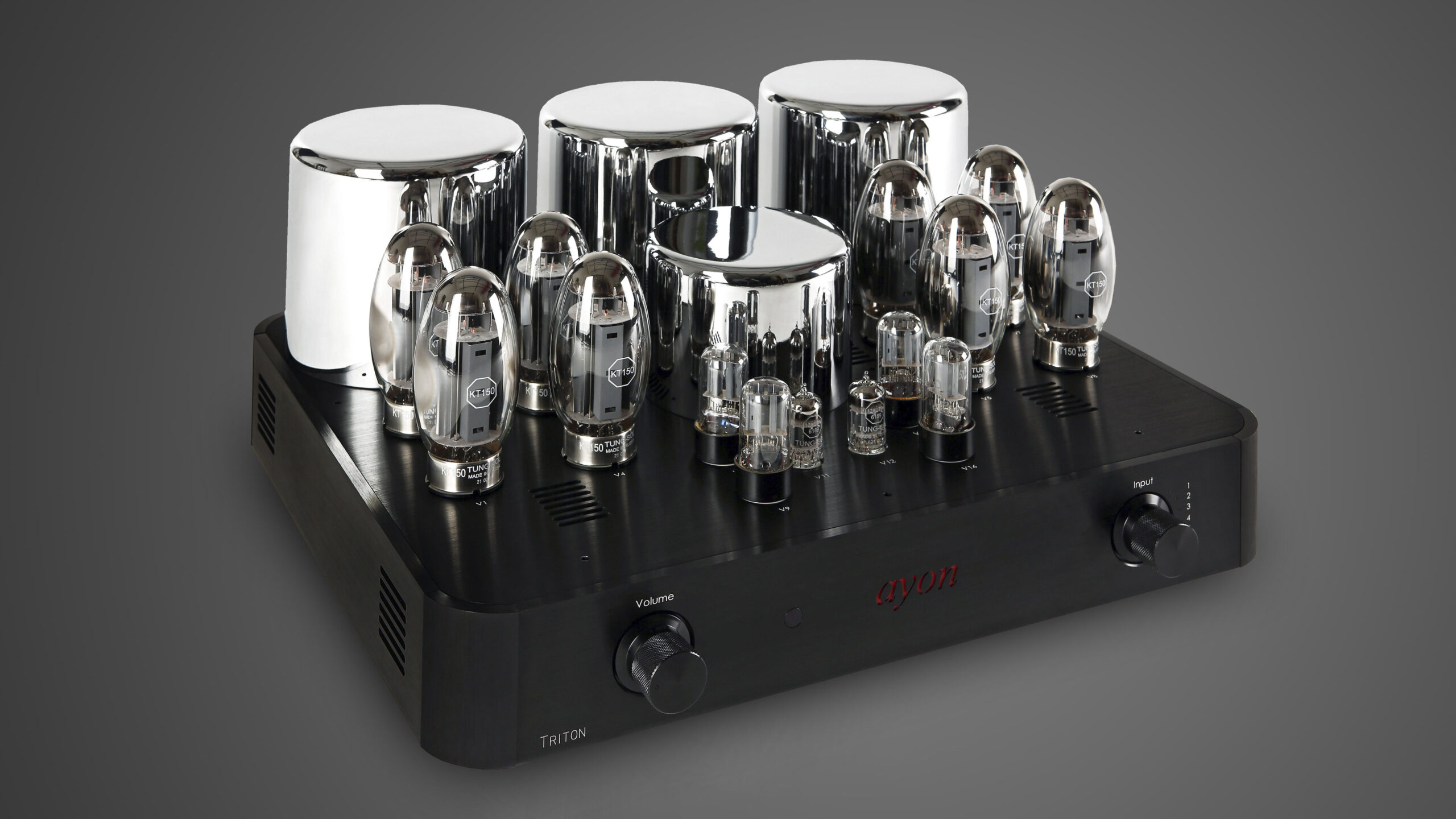

Build & Materials

Housed in a robust, brushed anodized aluminium chassis, the Triton Evo is as much a physical achievement as it is an acoustic one. The non-magnetic, resonance-absorbing construction protects delicate internal signals from external interference. Every detail, from the engraved paneling to the custom-made beryllium-copper tube sockets, reflects a pursuit of craftsmanship intended to serve the amplifier for decades.
Listening Notes

Chapter 03

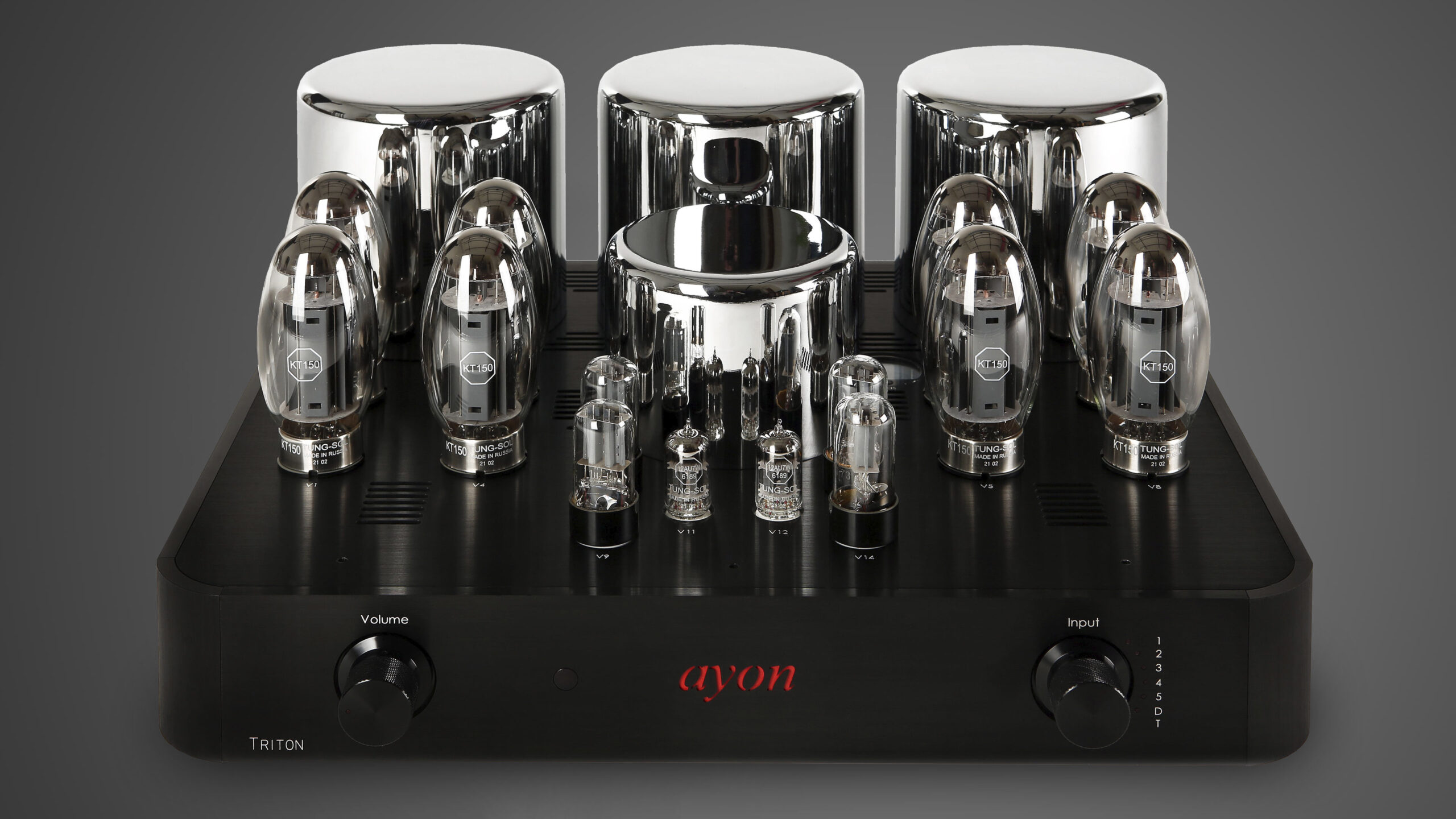

Listening Notes

Listeners will find the Triton Evo strikes an ideal balance between the lush, organic midrange associated with the best triode designs and the effortless dynamic authority required for orchestral scale. It creates a massive, holographic soundstage that extends well beyond the speakers, rendering recordings with a tactile sense of presence and an articulate, punchy low end that remains balanced at all volume levels.

Specifications

TypeTriode* or Pentode mode, Class-A*
Frequency response8 Hz – 60 kHz
Sensitivity380mV
Impedance4 and 8 Ohms
Power handling2 x 120 W (pentode) / 2 x 70 W (triode)
Dimensions (H × W × D)25 × 51 × 42 cm
Weight45 kg
Tube ComplementKT150 or KT170
Bandwidth8Hz-70kHz / -3db
Input Impedance at 1 kHz100 KΩ
Input sensitivity (full power)380mV
NFB0db
Volume ControlAlps Potentiometer
Inputs3 x Line IN, 1 x XLR IN, 1 x Direct IN
Output1 x Pre-Out
Conversion rate for USB-DAC (option) Up to 384kHz / 24 bit & DSD256
