Spheris Evo

The supreme dual-chassis reference linestage with integrated AC sine-wave regeneration.

The Spheris III occupies a singular, unchallenged position at the absolute summit of Ayon Audio's engineering achievements, built specifically for the most uncompromising audio installations. Hand-built in Austria, this third-generation state-of-the-art dual-chassis controller represents a dramatic evolution in ultra-purist circuit topology. By isolating the critical audio electronics from a newly overhauled, tube-rectified AC power generator network, it completely eliminates modern line contamination from entering the delicate voltage grids. At the technological core of the Spheris III sits a highly specialized line gain stage using premium Siemens C3m postal tubes, wired directly into triode configuration. This single-gain-stage framework runs with absolute zero negative feedback, bypassing the micro-dynamic flattening and compression inherent to multi-tube circuits. The engineering eliminates followers and buffers completely, routing the signal path across minimal copper traces to ensure a direct, unrestrained connection between source components and heavy power amplification. Sonically, the Spheris III projects an imposing, holographic acoustic soundstage that strips away the analytical glaze and artificial warmth typical of lesser pre-amplification. It handles music with lightning-fast transient snap and deep, organic low-frequency authority while rendering the finest micro-details with natural fluid grace. The background remains completely silent, dark, and still, creating a broad three-dimensional room where complex vocal layers and room ambiance can unfold with relaxed, effortless focus.

Key Features

01

Bespoke Siemens C3m Gain Stage

Deploys ultra-reliable German post-office pentodes wired as triodes, recognized for low noise, low microphony, and an extraordinary operational life span exceeding 10,000 hours.

02

Integrated Active AC Regenerator

Houses an active mains regenerator within the dedicated power chassis that synthesises a low-distortion 60Hz AC sine wave, delivering stable energy to the audio electronics.

03

Advanced Relay Transformer Volume Control

Features a masterfully re-engineered electronic-relay attenuation system based on super-permalloy step-up transformers, tracking volume adjustments with zero signal loss.

04

Absolute Zero Feedback Geometry

Operates with zero decibels of local or global negative feedback, maintaining time-domain correctness and preserving the expansive harmonic bloom of live recordings.

05

Dual Ground Circuit Breaker Switch

Incorporates a one-point star earth design matched to a switchable rear grounding break, allowing manual separation of signal and chassis grounds to drop line noise.

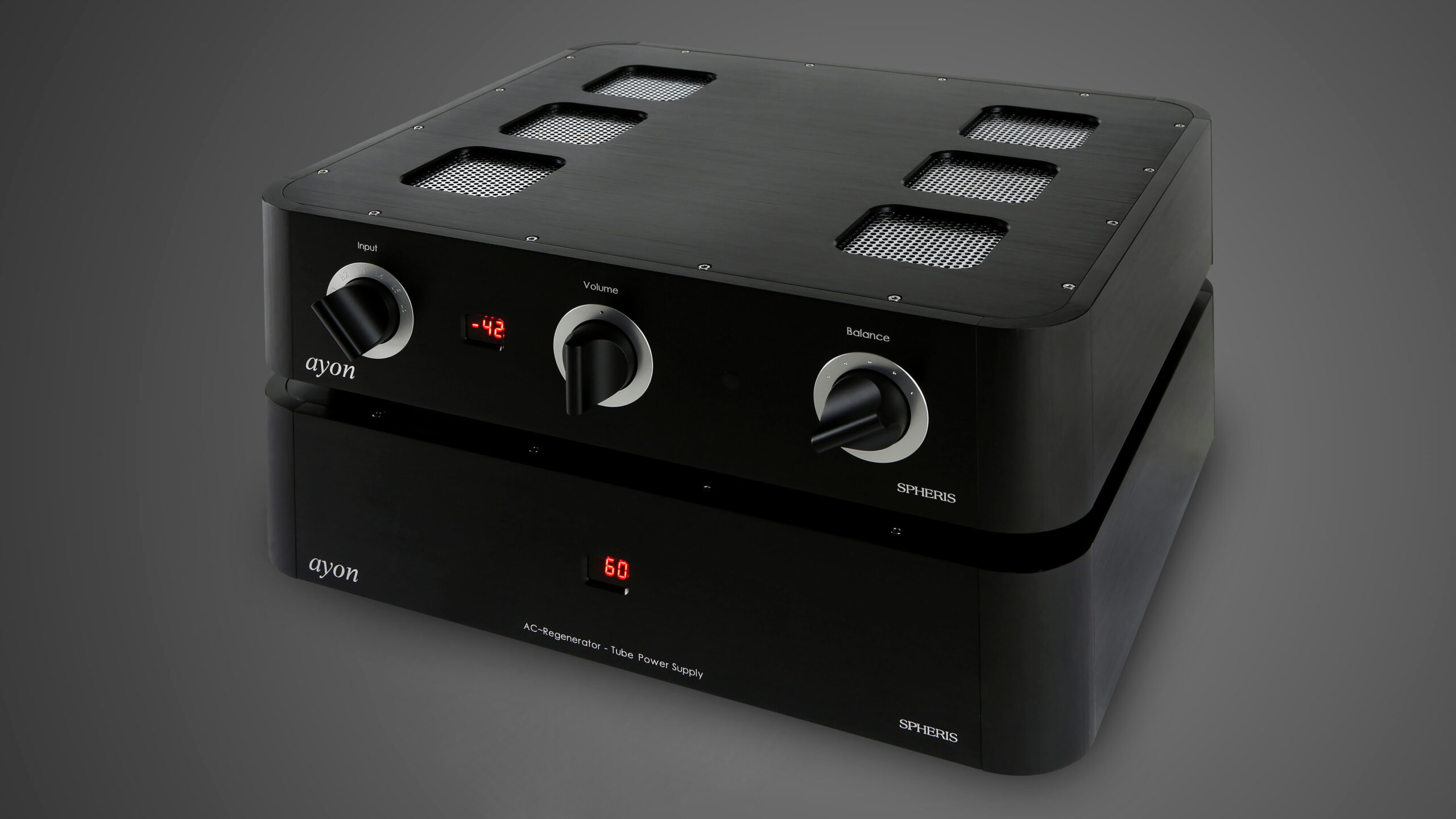

Uncompromised Single-Stage Topography

Chapter 01

Uncompromised Single-Stage Topography

The engineering foundation of the Spheris III is built upon the truth that electronic complexity corrupts low-level detail. Ayon avoids multi-stage layouts, phase-splitting loops, and solid-state devices in the signal pipeline because they limit spatial clues and natural instrument texture. The main layout positions gas-sealed relays close to the premium RCA and Neutrik XLR input jacks, routing the audio through an ultra-short path that terminates into a single high-speed coupling capacitor.

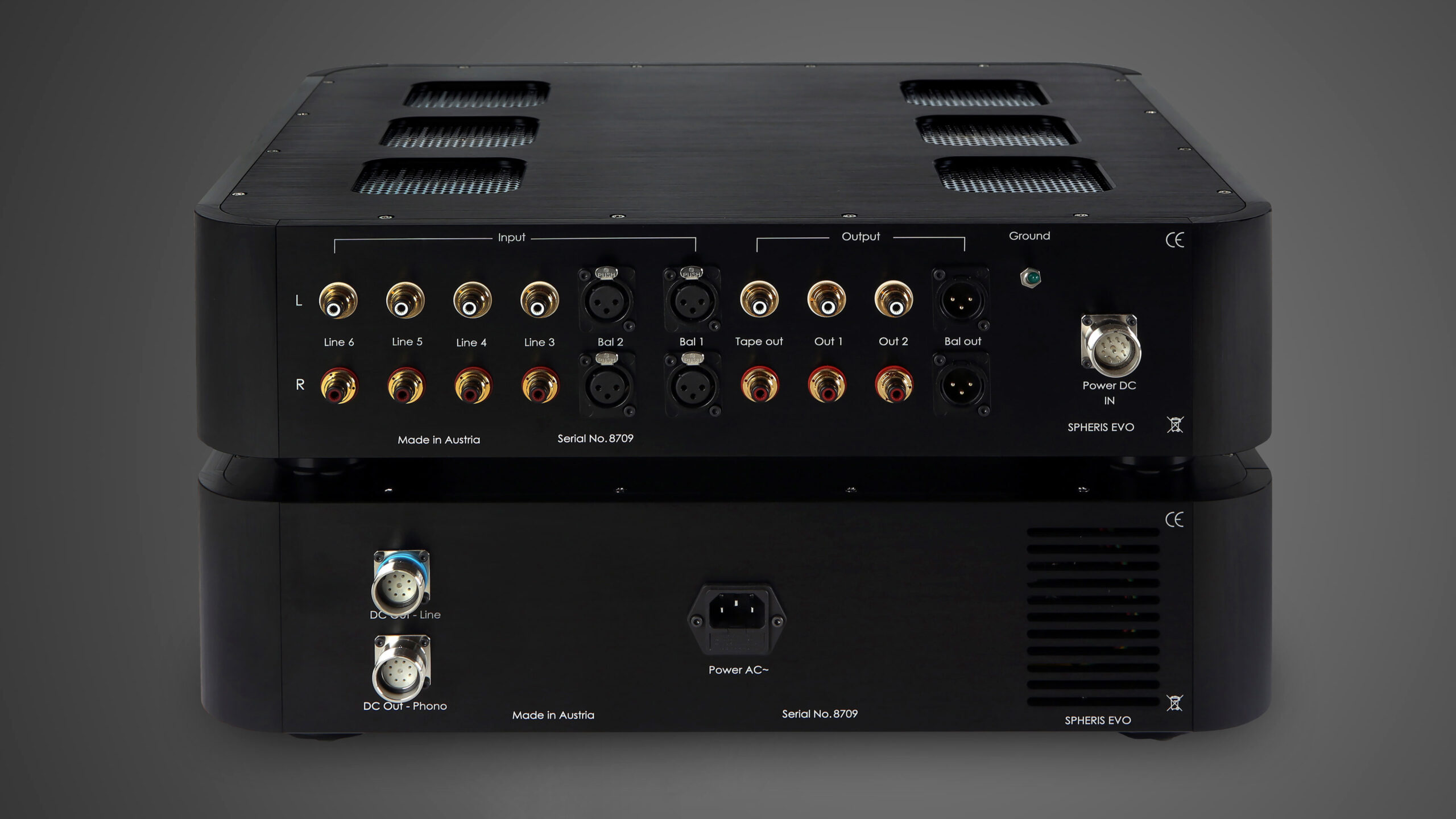

The Power Re-Generation Sanctuary

Chapter 02

The Power Re-Generation Sanctuary

To keep the sensitive grid voltages of the C3m triodes insulated from AC line anomalies and household hash, the Spheris III employs an external energy reservoir that takes up nearly half of the secondary chassis. Backed by dual choke filtration, regulated DC filament supplies with soft-start sequencing, and independent R-core transformers for individual stages, this tube-rectified power station supplies immediate transient energy reserves while maintaining absolute separation between input and output layers.

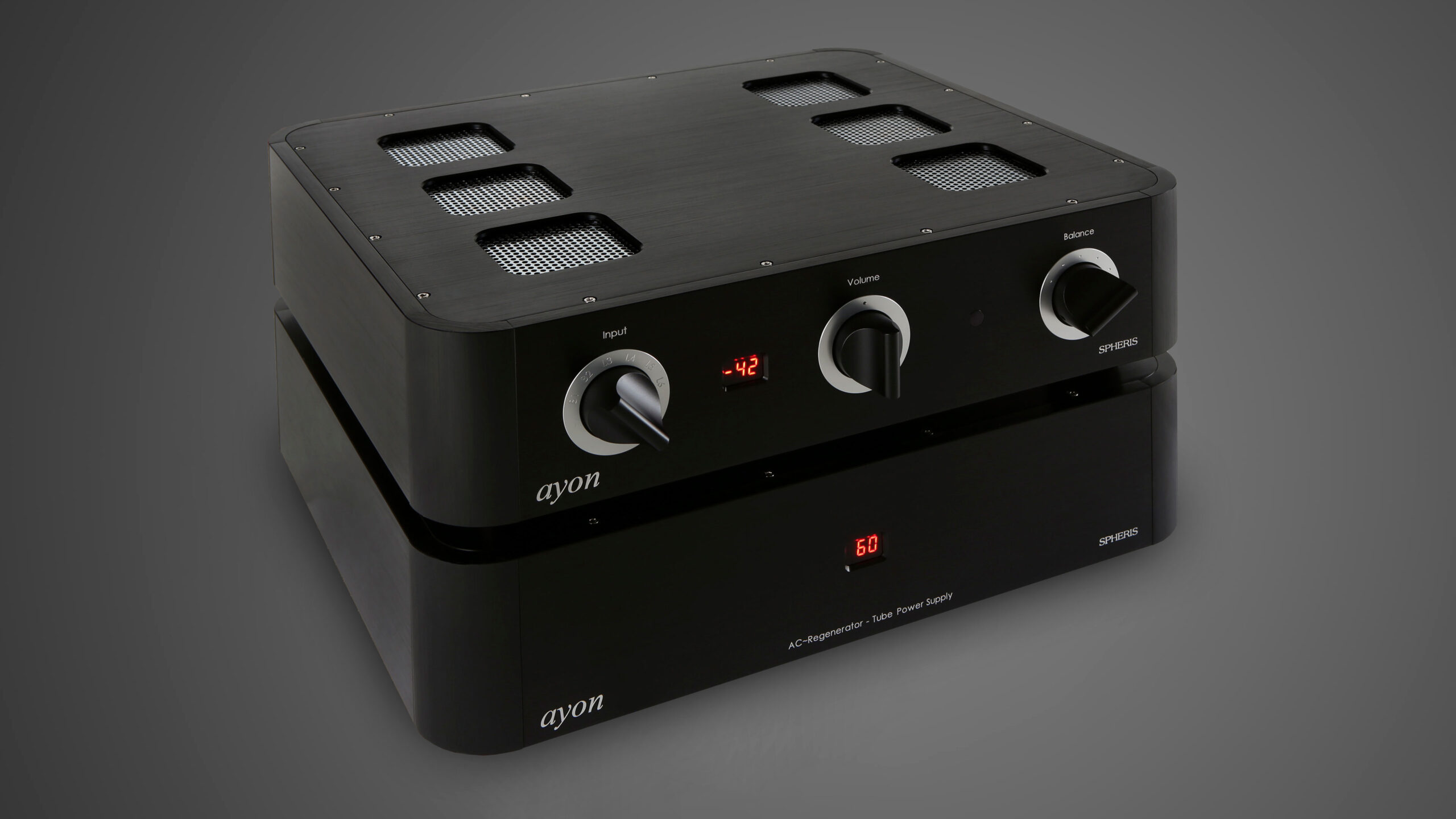

Listening Notes

Chapter 03

Listening Notes

Constructed from heavy, non-magnetic brushed aluminum chassis panels that absorb environmental resonances, the Spheris III demands a dual-shelf installation but rewards the listener with profound musical space. It delivers an unconstrained sense of freedom, where instruments detach cleanly from the loudspeaker boundaries and float against an ink-black background. From large-scale orchestral sweeps to intimate horn arrangements, it manages complex recordings without structural compression or tonal thinning.

Specifications

TypePure Class-A triode dual-chassis vacuum tube line pre-amplifier
Frequency response0.5 Hz – 500 kHz
ImpedanceInput impedance greater than 1 MOhm / Output impedance 30 Ohm
Power / outputMaximum output 40V rms at 1 kHz
Inputs / outputs4 x Line RCA inputs, 1 x Balanced XLR input / 2 x RCA outputs, 1 x Balanced XLR output, 1 x Tape out
Dimensions (H × W × D)11 × 50 × 43 cm per chassis
Weight43 kg
Tube ComplementC3M,12AU7
S/N ratio > 98 dB
Harmonic Distortion (at 1V ) Line< 0.01%
AC~ ReGeneratormax. 300 W
Frequency 60Hz
