Ayon Audio · Fullrange

BlackEagle

An uncompromised multi-way ceramic driver system voiced for absolute valve transparency.

The Ayon Audio BlackEagle stands as a landmark achievement within the brand's premium transducer catalogue. Developed as the definitive modern evolution of Ayon's foundational ceramic speaker portfolio, this reference monitor pairs sophisticated chassis engineering with uncompromising crossover development. It is built strictly to free premium tube and solid-state electronics from the complex electrical phase shifts that typically mask pure musical architecture. Positioned at the upper tier of the Fullrange collection, the BlackEagle leverages high-impedance ceramic voice coils to fundamentally elevate its overall electrical load. This specific optimization permits the deployment of a purist, ultra-simple 6dB acoustic crossover configuration. Rather than draining the current reserves of low-powered valve designs, the speaker forms an inherently stable, cooperative alliance with the amplifier. Sonically, the BlackEagle delivers an incredibly fast, linear presentation marked by exceptional dynamic authority and zero mechanical overhang. Highs and mid-frequencies are rendered with holographic transparency and rich, unforced textual detail. The low-frequency response is agile and foundational, effortlessly decoupling itself from the physical enclosures to suspend a vast, enveloping musical field within the listening space.

Visit on Ayon Audio Enquire / Audition

Key Features

Bespoke Transistor-Tube Crossover Adjuster

Equipped with a proprietary rear toggle circuit that adjusts the crossover matrix to complement the specific electrical characteristics of either solid-state or valve amplifiers.

Cell-Ceramic Driver Architecture

Features a specialized 1-inch cell-ceramic inverse-dome tweeter, a 6.7-inch cell-ceramic midrange unit, and three 6.7-inch ceramic woofers working in absolute phase harmony.

High-Impedance Coil Engineering

Employs custom-manufactured high-impedance bass coils to flatten the impedance curve, allowing a minimalist, phase-perfect first-order network across the spectrum.

Elongated Elliptical Instrument Cabinet

Constructed from curved, steam-pressed instrument-grade plywood with an un-damped layout that disperses back-wave energy without killing acoustic micro-dynamics.

WBT NextGen Terminals

Finished with authentic WBT NextGen reference single-wire binding posts coupled to premium custom internal wiring for uncorrupted current transfer.

Chapter 01

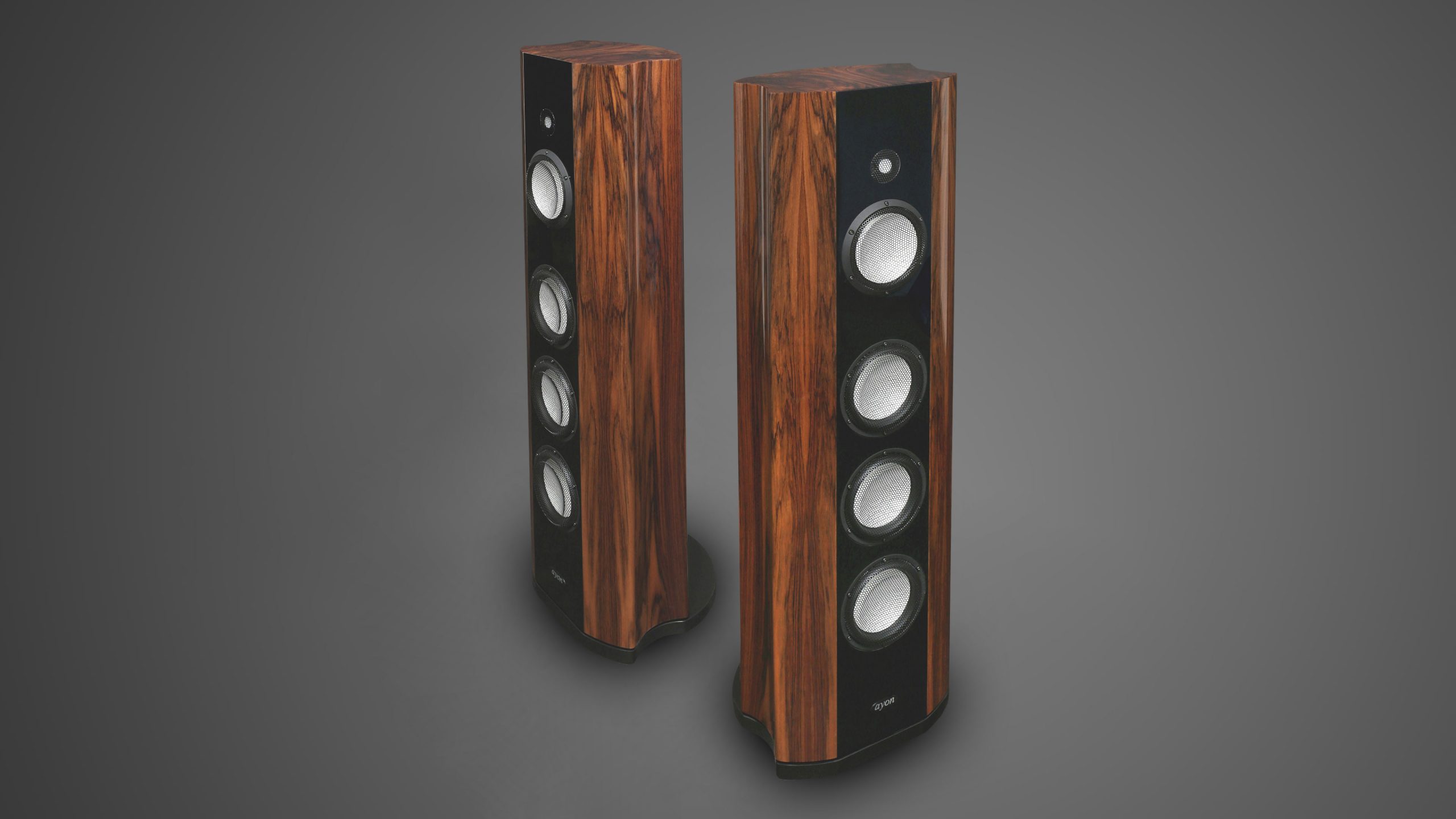

Acoustic Geometry & Damping Philosophy

The structural design of the BlackEagle abandons conventional box geometry in favour of a complex, steam-bent elliptical shape. By avoiding parallel internal surfaces and utilizing resonance-optimized instrument plywood, the speaker eliminates internal standing waves without relying on thick, energy-absorbing damping pads. This instrument-like cabinet allows the back-wave energy to disperse organically, ensuring the system remains incredibly fast and responsive to minor transient shifts.

Chapter 02

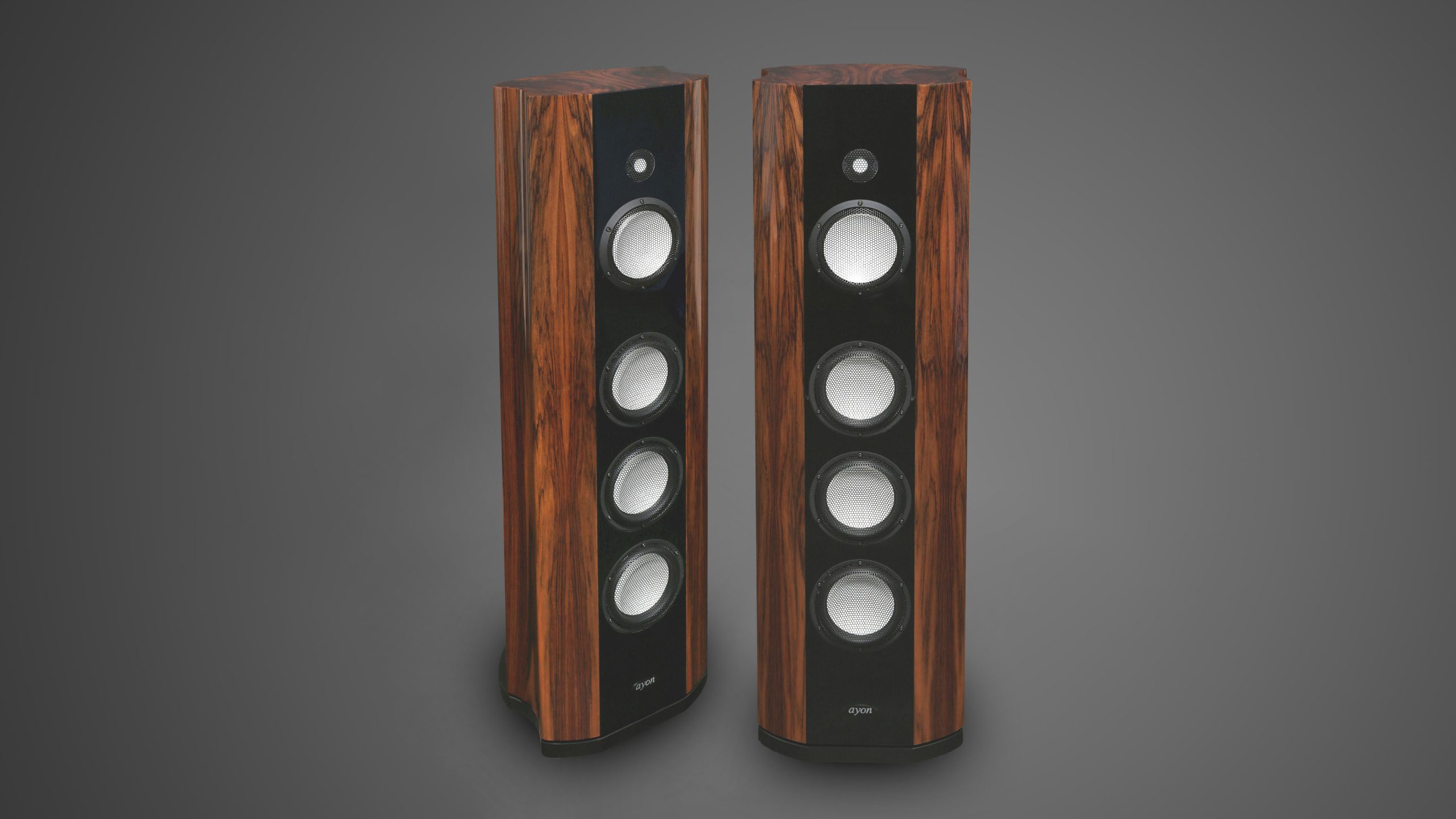

The Linear Low-Frequency Network

Low frequencies are tightly regulated by Ayon's proprietary Airflow Damping System, a multi-chamber venting design that controls cabinet internal pressure without introducing chuffing or phase delays. The front baffle profiles are carefully elongated to direct energy smoothly across a wide radiating axis. This creates a deeply immersive, quasi-surround sound field, causing the substantial physical enclosures to entirely vanish from the room.

Chapter 03

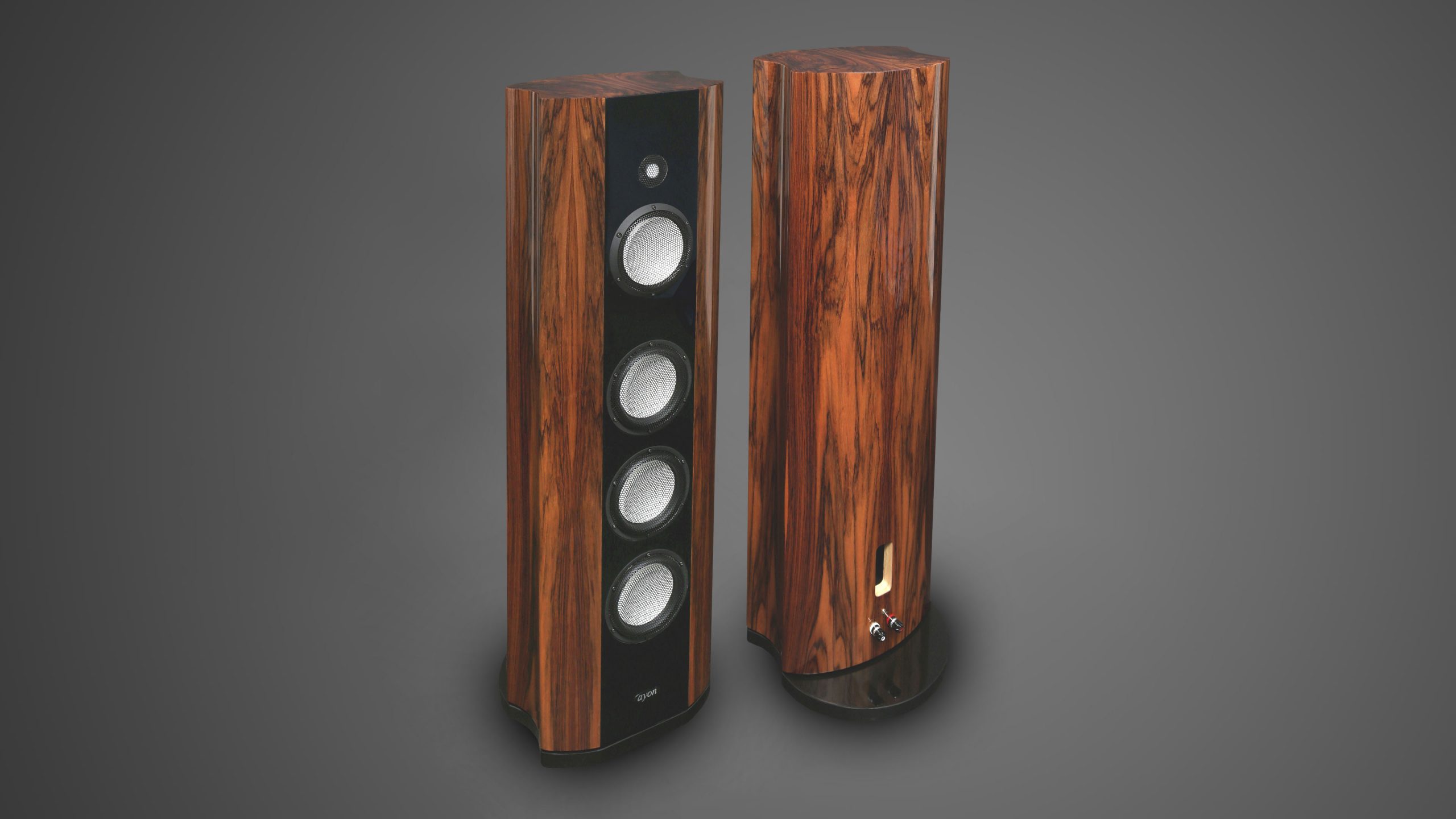

On the Bench & System Synergy

While standard multi-way ceramic speaker arrays present punishing, reactive electrical loads, the BlackEagle is specifically designed for straightforward system matching. Lovers of pure Class-A solid-state configurations and low-powered single-ended triodes will find an ideal match due to the highly flat impedance profile. The selectable amplifier adjustment circuit ensures that the mechanical speed of the drivers translates perfectly into organic warmth and lifelike scale, regardless of amplifier choice.

Specifications

Type3.5-way floorstanding loudspeaker with Airflow Damping System

Frequency response32 Hz – 33 kHz (-3 dB)

Sensitivity93 dB (1W / 1m)

Impedance4 Ohm

Power handling15 W – 150 W

Dimensions (H × W × D)122 × 37 × 26 cm

Weight52 kg each

Cabinet DesignElliptic

Cabinet MaterialResonance optimized instrument plywood

Driver Complement1 x 1” Cell-Ceramic Tweeter 1 x 6.7” Cell-Ceramic Midrange 3 x 6.7” Ceramic Woofer

Crossover frequencies 400Hz / 3500Hz

Terminal WBT NextGen

Internal WireCustom made

Transistor or Tube amplifier – Crossover network adjustment Switchable
