BlackHeron

Ayon Audio · Fullrange

BlackHeron

A masterfully unified ceramic driver system optimized for low-powered valve amplification.

The Ayon Audio BlackHeron represents a decisive evolutionary step in the brand's long-standing ceramic-driver lineage. Developed as the spiritual successor to acclaimed designs like the Seagull and Hawk, this loudspeaker incorporates advanced chassis technologies that re-establish the performance benchmarks for high-efficiency floorstanding monitors. It is engineered from the ground up to eliminate the parasitic loads that compromise the performance of premium amplification. Positioned centrally in the Fullrange collection, the BlackHeron strikes a flawless balance between domestic elegance and reference-level acoustic scale. Unlike standard multi-way loudspeakers that impose complex electrical hurdles, this model implements bespoke high-impedance voice coils that allow for a purist, low-loss crossover configuration. It functions not as a difficult load for an amplifier to conquer, but as a pure, cooperative extension of the source components. Sonically, the BlackHeron is defined by its astonishing spatial three-dimensionality and light-footed agility. The presentation is devoid of the typical grain or analytical coldness associated with early ceramic designs, offering instead an organic warmth and microscopic low-level resolution. Bass notes are rendered with deep, visceral authority and zero structural overhang, creating an expansive, holographic soundstage where the physical cabinets entirely disappear.

Key Features

01

Advanced Cell-Ceramic Driver Array

Features a 1.2-inch cell-ceramic tweeter working in perfect tandem with three 6.7-inch ceramic mid-bass and woofer drivers for total tonal consistency across the frequency range.

02

Purist First-Order Crossover

Bespoke high-impedance bass coils allow for a minimalist 6dB crossover network, drastically reducing phase distortion and optimizing current transfer.

03

Instrument-Grade Elliptical Cabinet

Constructed from resonance-optimized instrument plywood with a curved, un-damped interior to preserve natural acoustic energy and eliminate internal standing waves.

04

Airflow Damping System

A proprietary multi-chamber internal venting mechanism that controls cabinet pressure without using thick, energy-absorbing damping materials.

05

Switchable Bass Boost Circuit

An integrated, low-loss rear toggle switch permits precise low-frequency contouring to match the loudspeaker perfectly to room acoustics and amplifier topology.

Acoustic Architecture

Chapter 01

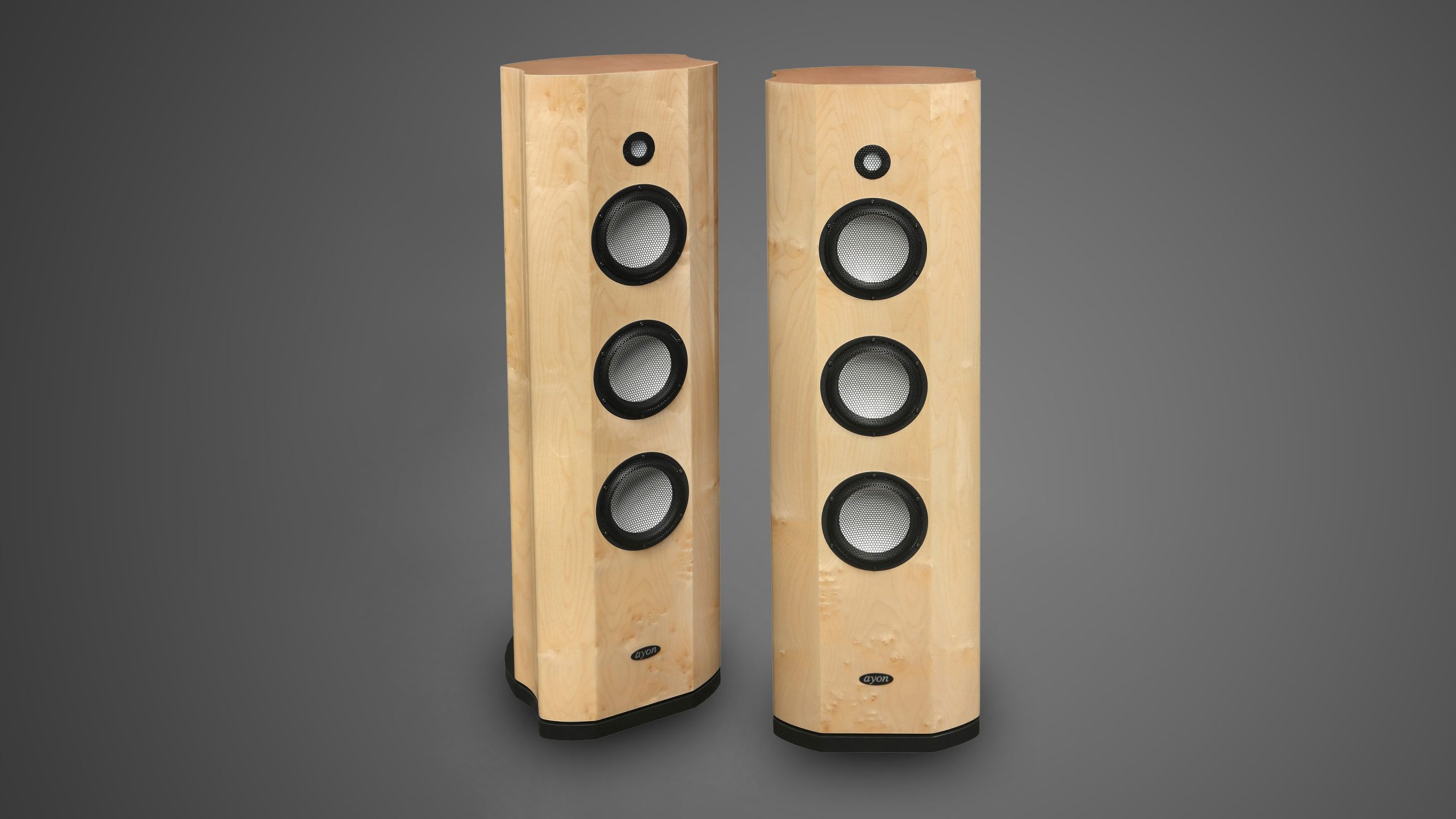

Acoustic Architecture

The BlackHeron relies on an elongated elliptical cabinet geometry that serves a vital acoustic purpose. By abandoning parallel walls and utilizing a meticulously curved instrument-grade plywood shell, the enclosure disperses internal back-wave energy rather than trapping it. This creates a highly rigid, non-reactive housing that allows the ceramic drivers to operate without cabinet-induced colorations, projecting an unconstrained, room-filling sound field.
The Valve-Friendly Impedance Solution

Chapter 02

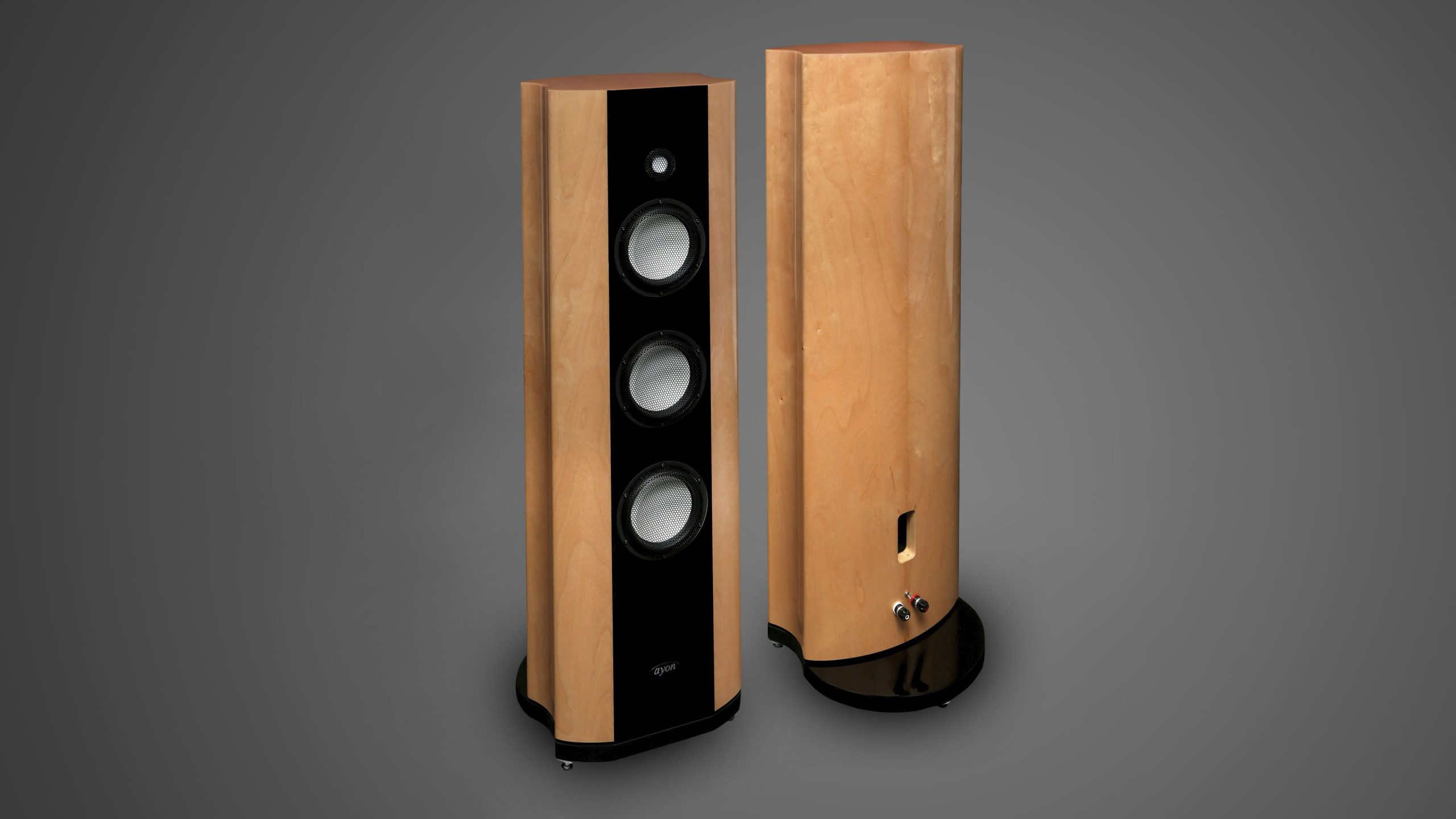

The Valve-Friendly Impedance Solution

Traditional multi-driver ceramic loudspeakers are notoriously difficult to drive, frequently suffering from severe impedance dips that exhaust tube amplifiers. Ayon Audio circumvents this by engineering proprietary voice coils with elevated native impedance. This allows the crossover network to remain remarkably simple and non-reactive, presenting a flat, stable 4-Ohm load that enables single-ended triode and low-power push-pull valve designs to maintain absolute linearity.
Listening and Integration

Chapter 03

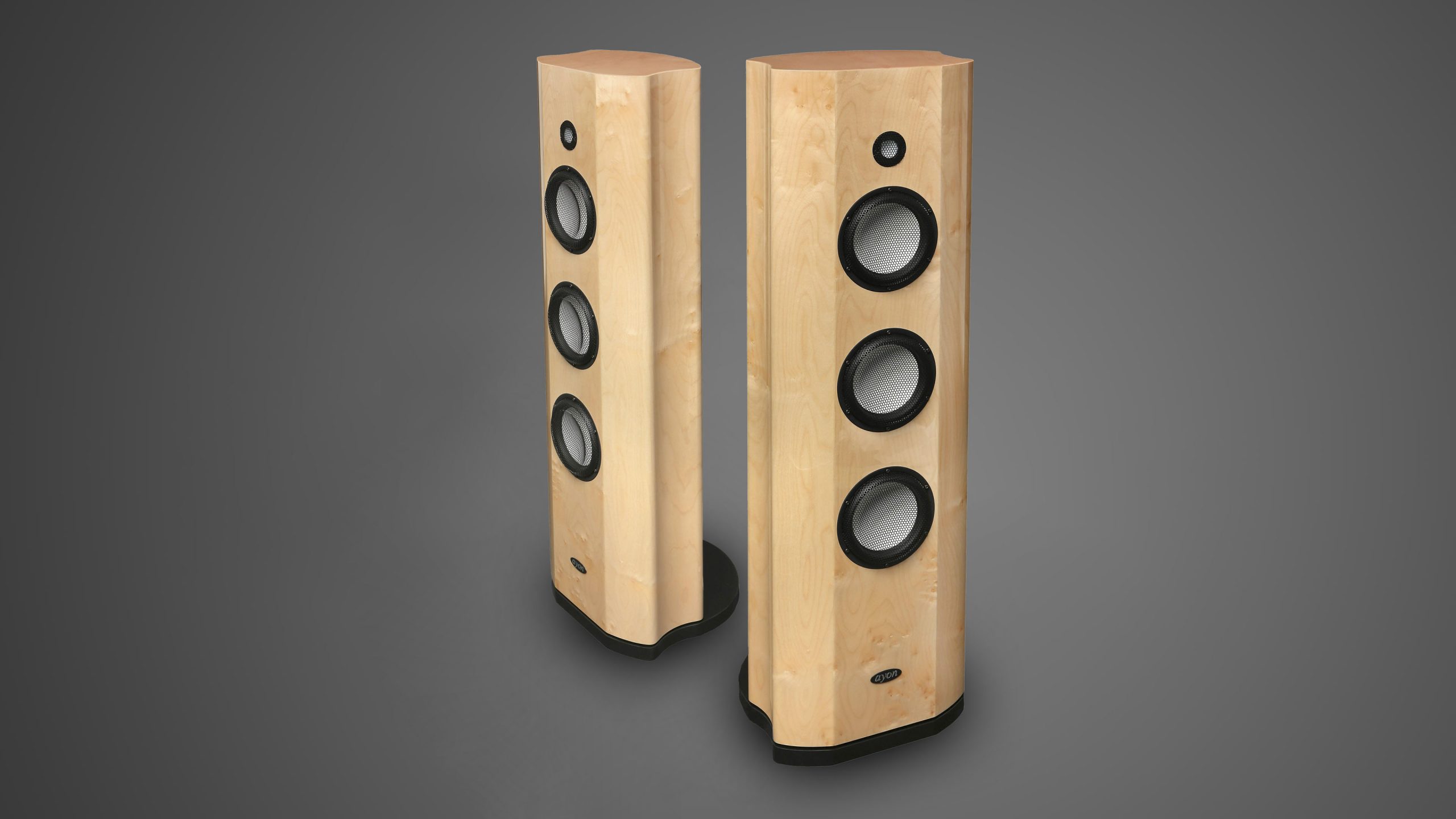

Listening and Integration

Equipped with premium WBT NextGen binding posts and custom internal wiring, the BlackHeron ensures an uncompromised signal path from the terminal to the voice coils. For spaces requiring flexible placement, the mechanical integration is enhanced by an adjustable bass contour circuit. On the test bench and in the listening room, the loudspeaker exhibits an effortless, lifelike transient response, tracking sudden dynamic shifts with absolute precision while maintaining a relaxed, organic flow.

Specifications

Type3.5-way floorstanding loudspeaker with Airflow Damping System
Frequency response34 Hz – 30 kHz (-3 dB)
Sensitivity93 dB (1W / 1m)
Impedance4 Ohm
Power handling5 W – 120 W
Dimensions (H × W × D)116 × 36 × 25 cm
Weight38 kg each
Cabinet designElliptic
Cabinet materialResonance optimized instrument plywood
Driver complement1 x 1.2″ Cell-Ceramic Tweeter 1 x 6.7″ Ceramic Woofer/Upper-Mid 1 x 6.7″ Ceramic Woofer/Lower-Mid 1 x 6.7″ Ceramic Woofer
Crossover frequencies180Hz / 400Hz / 1000Hz / 2500Hz
Internal wireCustom made
Bass BoostSwitchable
TerminalWBT NextGen
