ECI 80D Integrated Amplifier

Electrocompaniet · Integrated Amplifiers

ECI 80D Integrated Amplifier

Pure Scandinavian musicality, scaled perfectly for the modern high-fidelity home.

The ECI 80D represents an elegant evolution in the legendary Classic Line, engineered to grant access to the authentic Electrocompaniet experience within a more approachable, lifestyle-friendly physical footprint. It masterfully solves the modern dilemma of space without sacrificing the foundational principles that have defined the brand's heritage for decades. By optimizing the internal architecture for a low-profile, lighter cabinet, the design remains unapologetically audiophile in execution while adapting seamlessly to contemporary living environments. Positioned as the introduction to the brand's integrated range, this unit is far more than a scaled-down version of its larger siblings. It is an all-in-one hub that integrates a built-in moving magnet phono stage, a multi-input digital-to-analogue converter, and a sophisticated, two-way high-definition Bluetooth system. Every element is implemented with the engineering rigor expected of Scandinavian high-fidelity design, ensuring a pure and uncompromised signal path across both digital and analogue sources. Sonically, the ECI 80D is distinctively fluid, supple and organic, steering entirely clear of the clinical and fatiguing edge often found in modern solid-state entry points. It trades aggressive analytical sharpness for an expansive, deeply involving soundstage that prioritizes instrumental texture, midband richness and an natural sense of body. It remains remarkably unfussy with speaker pairings, controlling various loads with fluid ease and a refined, non-fatiguing presentation that simply allows the listener to connect directly with the performance.

Key Features

01

In-House Class A/B Output Stage

An custom-engineered amplifier circuit capable of delivering 2 x 80 Watts into 8 Ohms, nearly doubling into 4 Ohms to drive demanding loudspeakers with absolute control.

02

Integrated High-End Phono Stage

Equipped with a dedicated, low-noise RIAA preamplifier specifically tailored for Moving Magnet cartridges, enabling a direct and pristine connection for turntable enthusiasts.

03

Two-Way High Definition Bluetooth

Supports aptX HD streaming from your phone, tablet or computer, whilst simultaneously allowing transmission from the amplifier out to premium wireless headphones.

04

Dual-Drive Headphone Amplifier

Features a built-in, highly potent discrete headphone circuit with dual rear outputs, engineered to drive challenging head-fi loads simultaneously with minimal distortion.

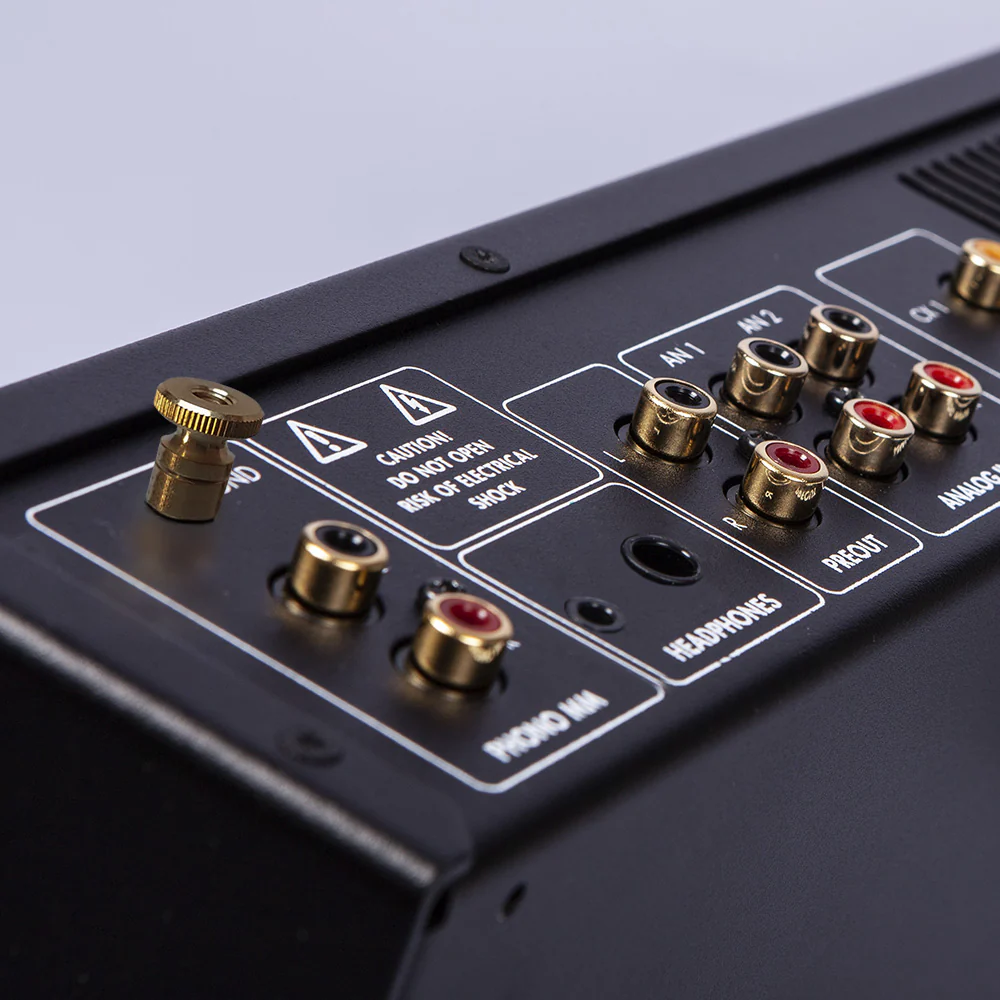

The Classic Line Aesthetic

Chapter 01

The Classic Line Aesthetic

Adhering to the proud Scandinavian design language of Electrocompaniet, the ECI 80D features the unmistakable 10mm thick Perspex front panel accented by tactile brass buttons and large, highly legible fluorescent blue display digits. The casework is wider but shallower than the typical component norm, establishing a low-slung, confident presence on the equipment rack while maintaining clean lines by cleanly concealing complex connectivity and headphone inputs on the rear panel.

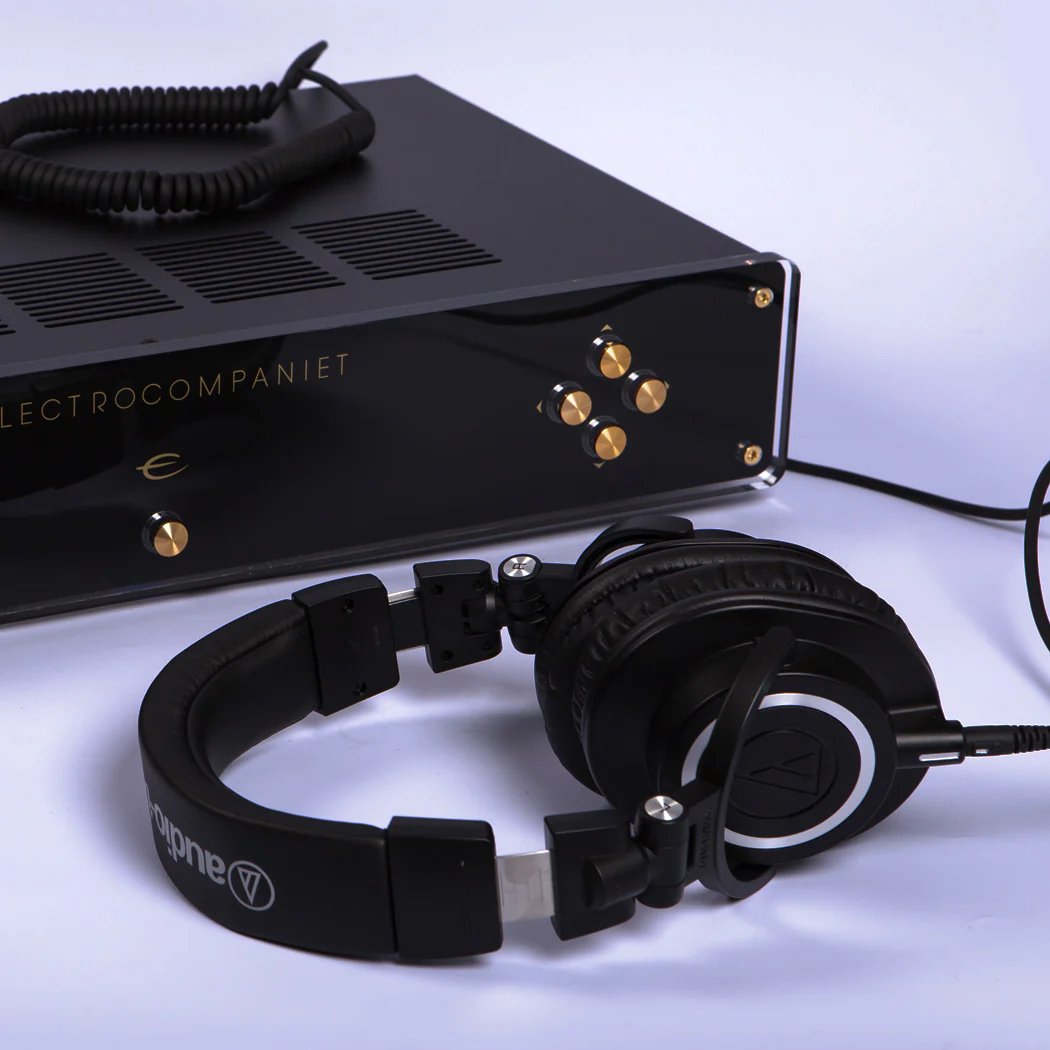

An Integrated Core

Chapter 02

An Integrated Core

Rather than relying on generic third-party chips, the internal layout positions its power supply on a dedicated board to isolate noise from sensitive digital and phono circuits. The on-board 5-input digital-to-analogue converter supports 24-bit/192kHz PCM playback over optical and coaxial connections, handling digital inputs with a level of sonic refinement, depth, and structural weight that bypasses the limitations of lesser, integrated platforms.

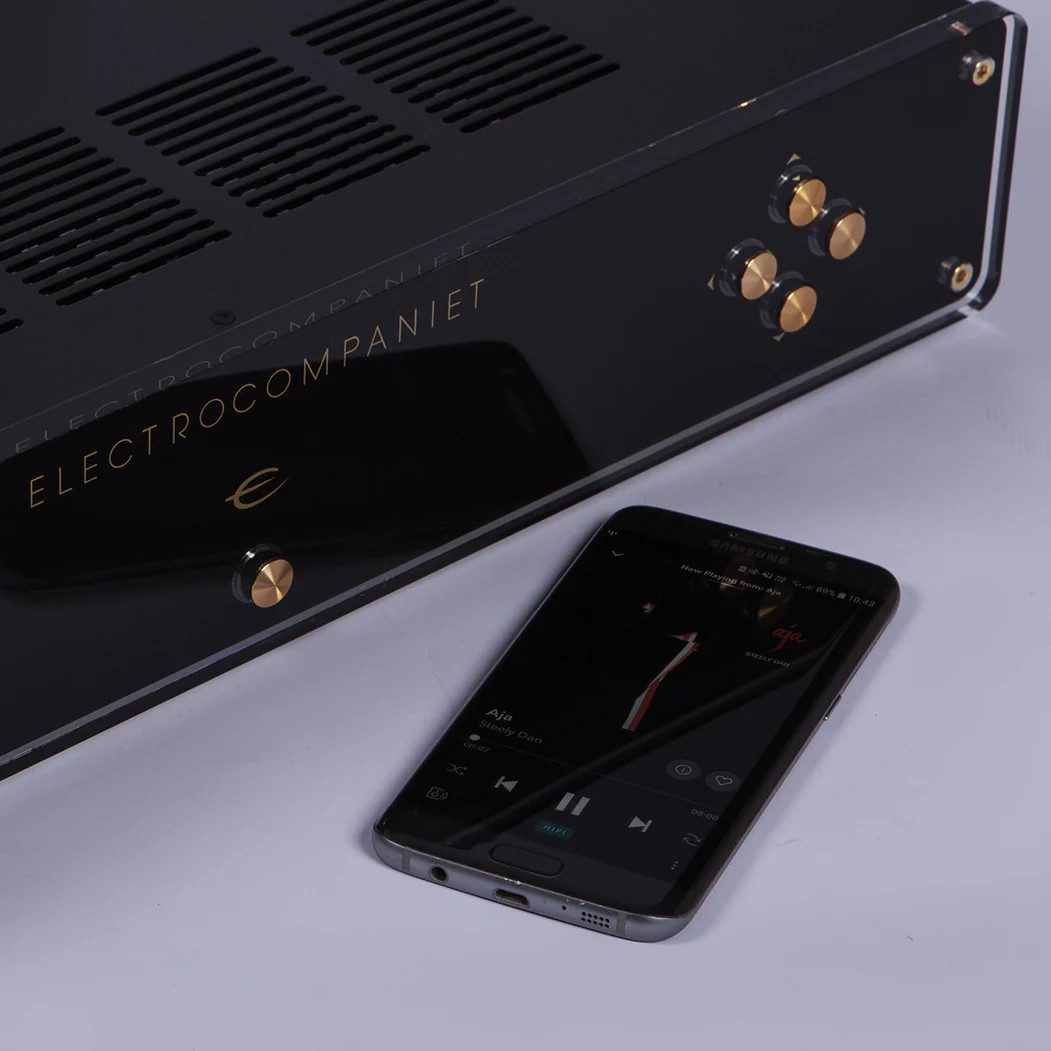

Listening Notes

Chapter 03

Listening Notes

On evaluation, the ECI 80D immediately establishes a tonally rich and harmonic presentation that feels deeply enveloping rather than overly analytical. It organizes complex musical information into a cohesive, organic whole, tempering aggressive transient edges with a smooth, fluid presentation and excellent low-frequency damping that preserves the delicate micro-dynamics and natural decay of acoustic recordings.

Specifications

PREAMPLIFIER:Input impedance: 75 kOhms; Noise floor:< -130dB; THD+N: < 0.002%; Frequency response (-3dB): 1 – 150 kHz; Volume adjustment range: - 110dB to +15 dB
OUTPUT AMPLIFIER:THD+N: < 0.005%; Output power (into 8 Ohms): 2 x 80W; Output power (into 4 Ohms): 2 x 150W; Damping factor (8 Ohms load): > 300; Frequency response (-3dB): 1 – 150kHz; SNR (input shorted, ref 1W into 8 ohms, A-weighted): 102 dB; Gain: 25 dB; Protection: DC, overload, temperature
RIAA PHONO:Pickup support: Moving Magnet; Gain: 40 dB @ 1kHz; Input impedance: 47 kOhms || 100pF; RIAA correction accuracy: +/-0.1dB, 25-20kHz; Subsonic filter: -3 dB @ 14 Hz; THD: < 0.001%; SNR: 83 dB (A-weighted); Overload margin: 30dB @ 1kHz
HEADPHONE AMPLIFIER:THD+N: < 0.001%; Load impedance single output in use: > 16 Ohms; Load impedance both outputs in use: > 32 Ohms; Max output power (into 16 Ohms load): 0.4W; Max output voltage swing: +/-8V peak; Output impedance: 10 Ohms; Protection: DC, overload
DIGITAL & STREAMING:Optical input: PCM: 44.1kHz/16bit up to 192kHz/24bit; Coaxial input: PCM: 44.1kHz/16bit up to 192kHz/24bit; Bluetooth support: BT5.0, A2DP, SBC, AAC, aptX-HD
CONNECTIVITY:Digital inputs: 2 coaxial, 3 optical; Analog inputs: 2 RCA; Analog preamplifier output: 1 RCA; Service port: 1 USB; 12V trigger: 1 input, 1 output; Phono MM: 1 RCA; Headphone outputs: 3.5mm jack + 6.35mm jack; Speaker outputs: 1 pair binding posts
WEIGHT & DIMENSIONS:Weight: 8 kg – 17.6 lbs; Width: 470 mm – 18.5 inches; Depth: 262 mm – 10.3 inches; Height: 90 mm – 3.5 inches
VOLTAGE & POWER CONSUMPTION:Mains input voltage: 100-240VAC, 50/60Hz, 3A; Idle (no load or signal): 30 W; Standby: < 0.5 W; OFF (main switch OFF): 0 W
