HSD SC6

EMT · HIFI

HSD SC6

The specialized moving-coil engine engineered explicitly for sub-chassis turntable architectures.

The EMT HSD SC6 introduces a highly targeted solution to a classic mechanical dilemma that often plagues suspended, sub-chassis turntables. When a high-mass moving-coil cartridge is mounted onto a floating platter system, the structural resonant frequencies of the tonearm and the chassis suspension can bleed into one another, resulting in acoustic feedback or bloated bass. By systematically altering the physical weight mass and the interior spring behavior of the transducer, EMT engineers managed to isolate these conflicting vibration platforms. Positioned intentionally within the HIFI line as an entry-tier specialist component, the HSD SC6 occupies a unique technical niche alongside the standard HSD 006. It preserves the brand's legendary studio-grade generator while implementing crucial revisions tailored for classical and modern suspended decks. By reducing total body weight to 10 grams and elevating compliance to 15μm/mN, the design places the structural resonance envelope safely outside the danger zone of floating sub-chassis systems. Sonically, the HSD SC6 manifests a beautifully relaxed, texturally rich, and three-dimensionally open presentation. Freed from the parasitic resonance boundaries of floating assemblies, it achieves a remarkably low noise floor that allows subtle room acoustics and micro-details to breathe without restriction. It retains the classic, muscular pacing, authoritative mid-range presence, and explosive dynamic thrust that defines the historic EMT signature, delivering it with an added layer of ambient warmth and unforced musical liquidity.

Key Features

01

Sub-Chassis Resonance Optimization

Engineered with elevated needle compliance and a lighter physical profile to keep the resonant frequencies of the cartridge and floating turntable suspension completely separated.

02

Super Fine Line Diamond

Equipped with a highly polished Super Fine Line diamond tip that sits deep inside the groove profile to maximize contact area while suppressing tracing noise.

03

Nickel-Plated AlNiCo Magnet

Utilizes a traditional, highly efficient AlNiCo magnetic core treated with a protective nickel layer to preserve optimal flux uniformity and lifelike analog tone.

04

Lightweight Aluminium Body

Milled to exact tolerances from high-grade alloy and yellow-anodized, dropping the overall cartridge mass down to 10 grams for reduced loading on delicate arm bearings.

05

High-Output Broadcast Generator

Employs hand-wound 4N copper coils onto a traditional cross-armature to generate a powerful 1mV signal, delivering immense dynamic energy directly to standard phono inputs.

The Suspended Platform Solution

Chapter 01

The Suspended Platform Solution

Classic floating sub-chassis turntables possess a natural compliance that handles external shock beautifully, yet they can become compromised by heavy, stiff moving-coil cartridges. The HSD SC6 rectifies this by loosening the internal suspension of the cantilever assembly to a compliance rating of 15μm/mN. This mechanical adjustment forces the core tracking system to work in total harmony with the platter suspension, eliminating low-frequency baseline wobbles and ensuring tracking authority across warped or difficult record pressings.
Swiss Watchmaker Precision

Chapter 02

Swiss Watchmaker Precision

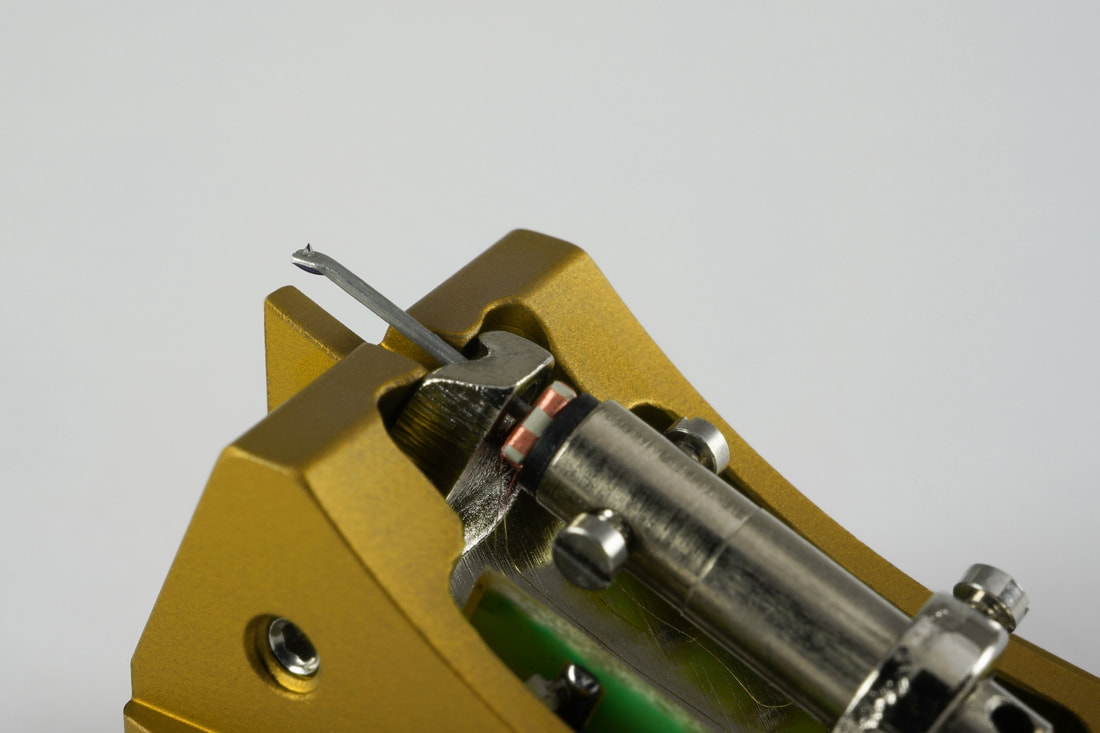

Beneath its striking yellow-anodized shell, the HSD SC6 relies entirely on the micro-mechanical architecture that cemented EMT's professional reputation across global radio networks. Every single cartridge is built by hand and tuned individually in Switzerland, ensuring that channel balance and vertical tracking angles match theoretical ideals. By fitting this broadcast engine into a standard half-inch threaded top-plate, the unit attaches securely to modern audiophile headshells without requiring complex mounting hardware.
Listening Notes & Synergy

Chapter 03

Listening Notes & Synergy

When paired with a high-quality suspended turntable, the HSD SC6 uncovers an authentic, organic sonic signature that avoids modern analytical harshness. Bass lines lose their typical muddy overhang, tightening up to show clean geometric edges and visceral slam, while vocal lines lock firmly into the center of the stereo soundfield. The top end is beautifully silk-textured and wide, conveying venue reflections and tape hiss with total transparency, allowing the true recording to shine through.

Specifications

DiamondSFL
CantileverAluminium
TransducerMC Stereo
CoilCopper 4N
MagnetAlNiCo, nickel-plated
BodyAluminium
Connection1/2" – 4pin
Vertical tracking angle23°
Weight10g
Tracking force2,0g
Output voltage1mV @ 5cm/s
Compliance15µm/mN
Frequency response20 - 25‘000Hz
Impedance2x 24Ω
Recommended load200 - 300Ω
