JSD 6

EMT · HIFI

JSD 6

The definitive studio-bred moving-coil cartridge optimized for the domestic listener.

The EMT JSD 6 embodies the direct physical legacy of the brand's legendary studio transducers, skillfully re-engineered for classical high-fidelity tonearms. First created to mark a pivotal anniversary in the company's long analog history, this reference cartridge translates the raw dependability and drive of their radio-broadcast models into a standard half-inch mounting footprint. It represents a vital, foundational component for listeners seeking the uncompromised realism of a master tape. Positioned within the HIFI line as a versatile all-rounder, the JSD 6 occupies a highly respected stance by offering an incredibly reliable tracking interface. While typical high-end moving coils can sound lean or overly critical of poorly pressed vinyl, this model uses its broadcast-refined mechanics to preserve structural scale without sanitizing the performance. It sits alongside the JSD 5 but offers a marginally more forgiving profile that emphasizes continuous tracking stability across varied records. To listen to the JSD 6 is to feel an immediate, deeply tactile connection to the music's core pacing and energy. It treats recordings with massive structural color and an authoritative low-end grunt, entirely bypassing the cold, clinical glare that often passes for modern resolution. Voices are projected into the room with an organic, three-dimensional weight, floating smoothly within an expansive, symmetrically focused soundstage that respects the genuine acoustics of the original performance space.

Key Features

01

Super Fine Line Diamond

Features a high-polish, multi-faceted Super Fine Line diamond tip that maximizes contact with the groove walls while drastically minimizing tracing noise.

02

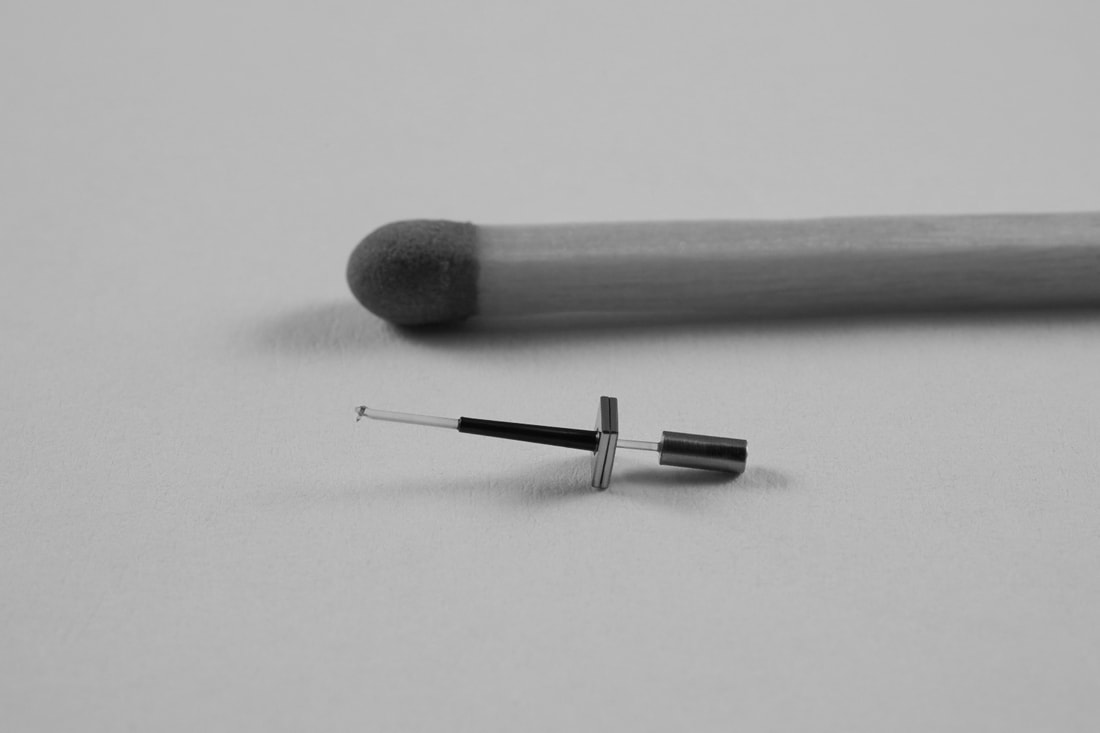

Solid Boron Cantilever

Employs an ultra-stiff boron rod assembly to transmit the absolute finest groove modulations straight to the generator with instantaneous transient speed.

03

Gold-Plated AlNiCo Magnet

Utilizes a highly stable, traditional AlNiCo magnet core finished with a protective gold layer to secure an exceptionally uniform magnetic flux field.

04

Milled Aluminium Housing

Precision-machined from a solid block of aircraft-grade aluminum and naturally anodized to serve as a robust, low-resonance mechanical ground.

05

High-Purity 4N Copper Coils

Hand-wound by Swiss watchmakers onto a traditional cross-armature to retain the muscular presence, rich midrange, and timing accuracy of the classic EMT house sound.

The Classic Broadcast DNA

Chapter 01

The Classic Broadcast DNA

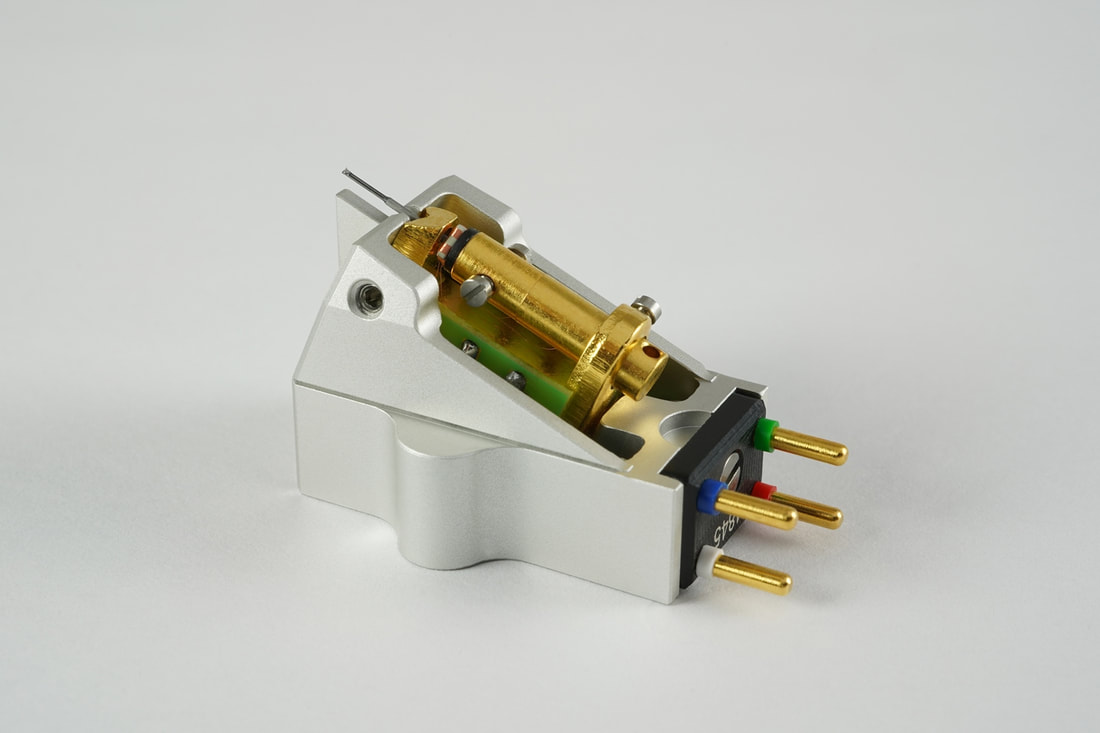

The internal architecture of the JSD 6 traces its descent straight from the celebrated TSD 15 generator, an instrument that defined professional vinyl playback across Europe for decades. Unlike contemporary cartridges optimized solely to look perfect on static measurement benches, this motor layout is purpose-built to withstand intense dynamic tracking demands. Hand-assembled piece by piece in Switzerland, it delivers a massive one-millivolt output that unlocks an unconstrained, lifelike signal-to-noise ratio when paired with premium step-up transformers.
Real-World Tracking Mastery

Chapter 02

Real-World Tracking Mastery

With a chosen tracking force of 2.4 grams and a robust 12-micron compliance profile, the JSD 6 is physically optimized for medium-to-high mass tonearms. It behaves with immense mechanical composure across heavily modulated passages or worn vinyl surfaces, confidently cutting through surface pops and groove debris. This exceptional tracking stability ensures that high frequencies remain extended, silky, and structurally integrated with the lower frequencies, avoiding the top-end separation that common consumer cartridges suffer from.
Listening Notes

Chapter 03

Listening Notes

On the turntable, the JSD 6 stands out for its unique ability to manhandle recordings in a way that uncovers deep spatial depth without ever sounding analytical or fatiguing. It acts as a comprehensive all-rounder across musical genres, injecting rock and orchestral movements with visceral authority while preserving the delicate micro-detail of intimate jazz vocalists. It steers clear of artificial, over-sweetened warmth, maintaining an honest, explosive presentation that reminds the listener why the long-playing vinyl record remains an unbeatable high-resolution medium.

Specifications

DiamondSFL HP
CantileverBoron
TransducerMC Stereo
CoilKupfer 4N
MagnetAlNiCo, vergoldet
BodyAluminium
Connection1/2" – 4pin
Vertical tracking angle23°
Weight10g
Tracking force2,4g
Output voltage1mV @ 5cm/s
Compliance12µm/mN
Frequency response20 - 25‘000Hz
Impedance2x 24Ω
Recommended load200 - 300Ω
