JSD Novel Titan

EMT · HIFI

JSD Novel Titan

The flagship moving-coil cartridge engineered for absolute resolution and transient clarity.

The EMT JSD Novel Titan represents the absolute zenith of modern moving-coil design, establishing a new standard for speed and spatial resolution. Developed after six years of extensive research into micro-mechanics and material science, this reference transducer evolves the company's historic broadcast heritage for the modern high-end listener. It is engineered specifically for those who demand the highest degree of transient fidelity and an uninhibited window into the original recording space. Positioned at the apex of the HIFI range alongside its gold-wound counterpart, the Titan variant is defined by its pursuit of structural neutrality and electrical purity. While other models in the lineup lean into a more saturated tone, the Titan leverages silver metallurgy and titanium architecture to strip away energy storage and acoustic blurring. The result is a high-performance instrument that refuses to add self-caricature to the groove. To experience the JSD Novel Titan is to encounter an extraordinarily open, fast, and unconstrained sonic signature. It uncovers the finest micro-details, acoustic trails, and micro-dynamics with effortless precision, yet never lapses into clinical hardness. Notes ignite and decay with realistic immediacy, surrounded by an expansive, three-dimensional soundstage where instruments are focused with absolute topographic stability.

Key Features

01

Multi-Layer Core Transducer

A sophisticated two-part coil core systematically arranged around a high-strength titanium carrier to diminish eddy current losses and secure an exceptionally quiet background.

02

Pure Silver Coils

Hand-wound with 4N pure silver wire to maximize signal conductivity, yielding an airy, transparent, and highly resolved top-end register.

03

Titanium Body with DLC Coating

Milled entirely from solid titanium and treated with a Diamond-Like Carbon finish to ensure supreme resonance dissipation and structural rigidity.

04

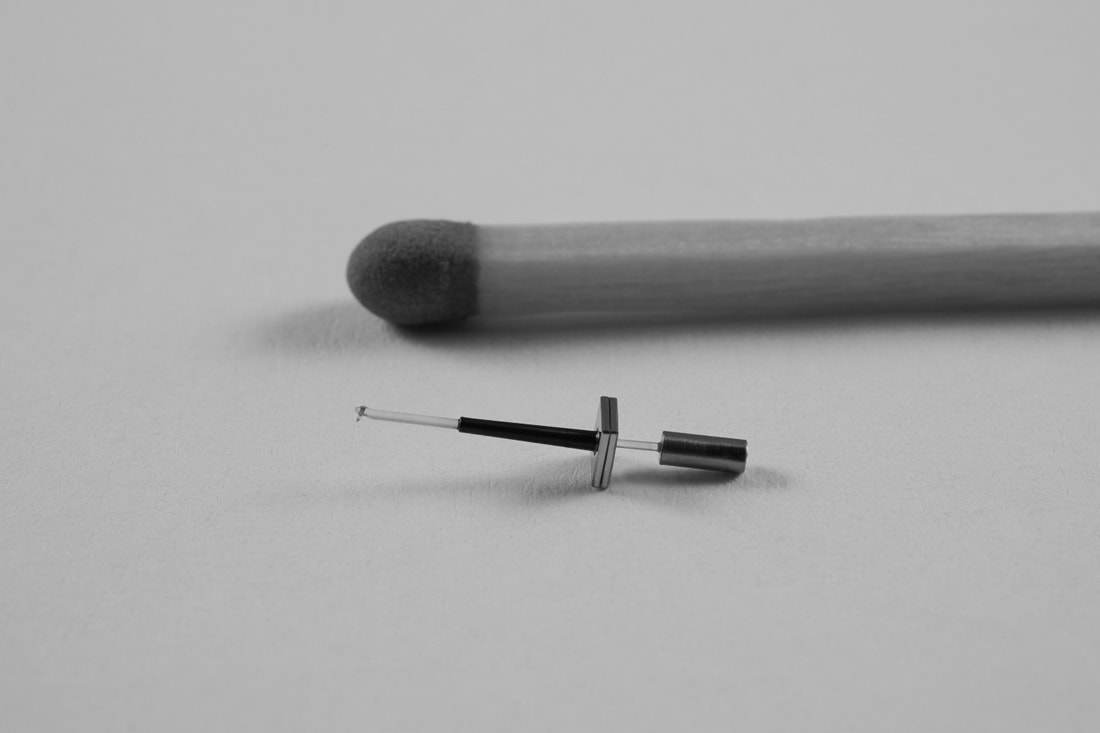

Sapphire and Titanium Cantilever

A rigid, low-mass multilayer cantilever assembly combining a titanium tube structure with a sapphire needle carrier for instantaneous transient response.

05

MR HP Diamond Stylus

A high-polish, multi-radial diamond profile shaped to match the original cutting lathe geometry, maximizing tracking accuracy and groove wall contact.

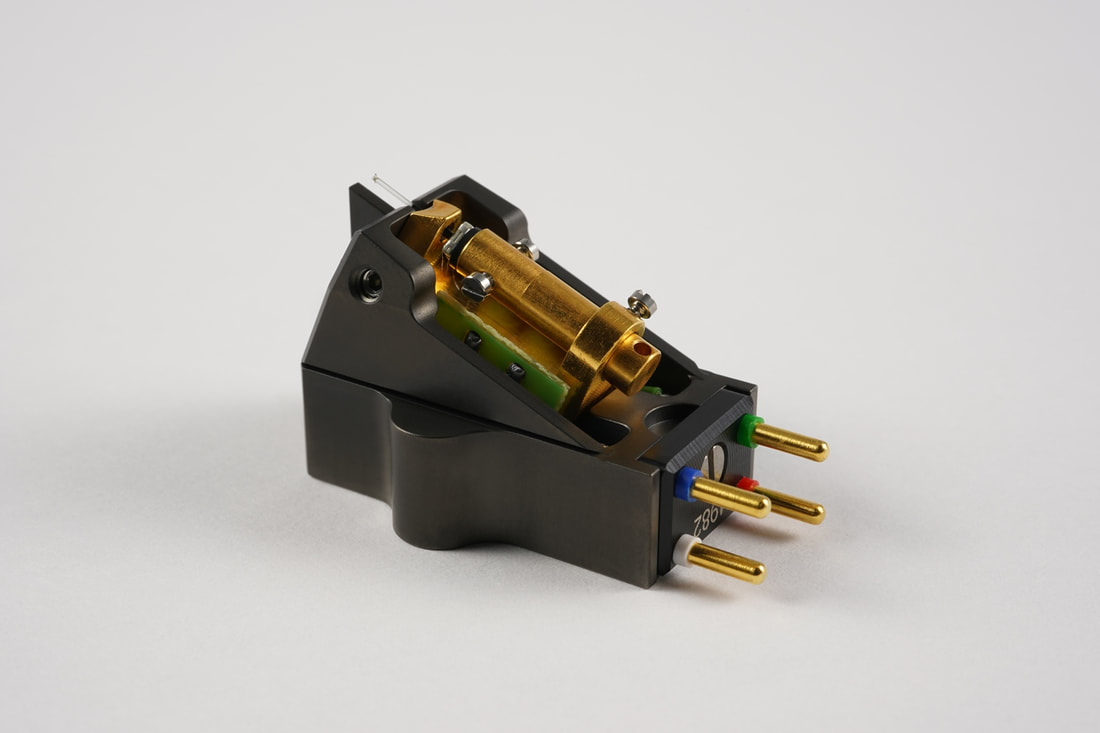

The Multi-Layer Innovation

Chapter 01

The Multi-Layer Innovation

At the heart of the Novel series is a total departure from traditional moving-coil motor design. By dividing the coil core into two distinct layers and shielding them within a structural titanium chassis, EMT engineers successfully eliminated the inductive losses that typically mask low-level detail. This advanced micro-architecture allows the cartridge to maintain classical EMT electrical specifications while capturing an unprecedented level of micro-information from the vinyl medium.
Titanium Engineering

Chapter 02

Titanium Engineering

The choice of a solid titanium shell for the Titan model is a deliberate exercise in resonance control. Milled to demanding tolerances, the high-density housing acts as a mechanical ground, shunting unwanted vibrational energy away from the delicate generator assembly. The exterior is subsequently treated with an advanced Diamond-Like Carbon (DLC) coating, creating an incredibly hard, non-reactive outer layer that stabilizes the cartridge body against the intense mechanical pressures of heavy tracking.
Sonic Purity and Silver Metallurgy

Chapter 03

Sonic Purity and Silver Metallurgy

Where traditional copper coils favor a warmer, more robust mid-bass weight, the implementation of 4N pure silver wire inside the generator shifts the balance toward absolute clarity. This metallic purity ensures that complex orchestral passages, high-frequency transients, and ambient spatial cues are reproduced with total transparency. It delivers an articulate, highly revealed presentation that honors the master tape without introducing false warmth or frequency exaggeration.

Specifications

DiamondMR HP
CantileverSapphire & Titanium
TransducerEMT multi-layer
CoilSilver 4N
MagnetAlNiCo, gold-plated
BodyTitanium, DLC coated
Connection1/2" – 4pin
Vertical Tracking Angle23°
Weight13g
Tracking force2,1g
Output voltage1mV @ 5cm/s
Compliance12µm/mN
Frequency response20 - 30‘000Hz
Impedance2x 16Ω
Recommended load100 - 200Ω
