JSD Pure

The reference moving-coil cartridge utilizing advanced resonance-damping sandwich body architecture.

The EMT JSD Pure represents a meticulous refinement of the brand's legendary stereo generator, focusing heavily on the critical physical interface between the transducer and the tonearm. Originally conceived to mark a milestone anniversary in EMT's historic broadcast lineage, this reference moving-coil cartridge addresses micro-vibrations before they can compromise the delicate generator assembly. It serves as a definitive solution for the analog purist seeking a highly resolved, tonally accurate presentation completely free from housing coloration. Positioned within the HIFI line as a foundational reference model, the JSD Pure occupies a sweet spot where historic studio authority meets contemporary dampening technology. While standard cartridge bodies can accumulate and return mechanical energy down the arm, the Pure isolates its internal architecture within a specialized high-density layer. This structural strategy brings the core broadcast engine closer to its theoretical ideal, unlocking unprecedented tracking stability in high-end domestic applications. To hear the JSD Pure is to experience an immensely focused, clean, and structurally grounded musical foundation. The lack of acoustic resonance manifests as a remarkably quiet, black background from which subtle micro-dynamics and vocal textures emerge with effortless poise. It preserves the classic, visceral rhythmic drive and full-bodied mid-range realism that defined EMT's studio heritage, while providing the spatial openness and top-end extension expected of a true modern masterwork.

Key Features

01

High-Density Sandwich Body

Constructed with a specialized dual-material composite layer that effectively subdues unwanted resonance transfers between the cartridge body and the tonearm.

02

Sapphire Cantilever Assembly

Employs a white sapphire cantilever shaft to ensure maximum structural rigidity and an instantaneous, low-loss transmission of physical groove modulations.

03

MR HP Diamond Stylus

Equipped with a highly polished, multi-facet diamond profile engineered to mimic original cutting heads for impeccable geometric tracking and reduced record wear.

04

Gold-Plated AlNiCo Magnet

Utilizes a classic, powerful AlNiCo magnet system treated with gold plating to secure highly stable magnetic flux and authentic analog presence.

05

Pure Copper 4N Coils

Wound by hand with high-purity copper wire onto a traditional cross-armature to preserve the classic, full-bodied EMT tonal signature.

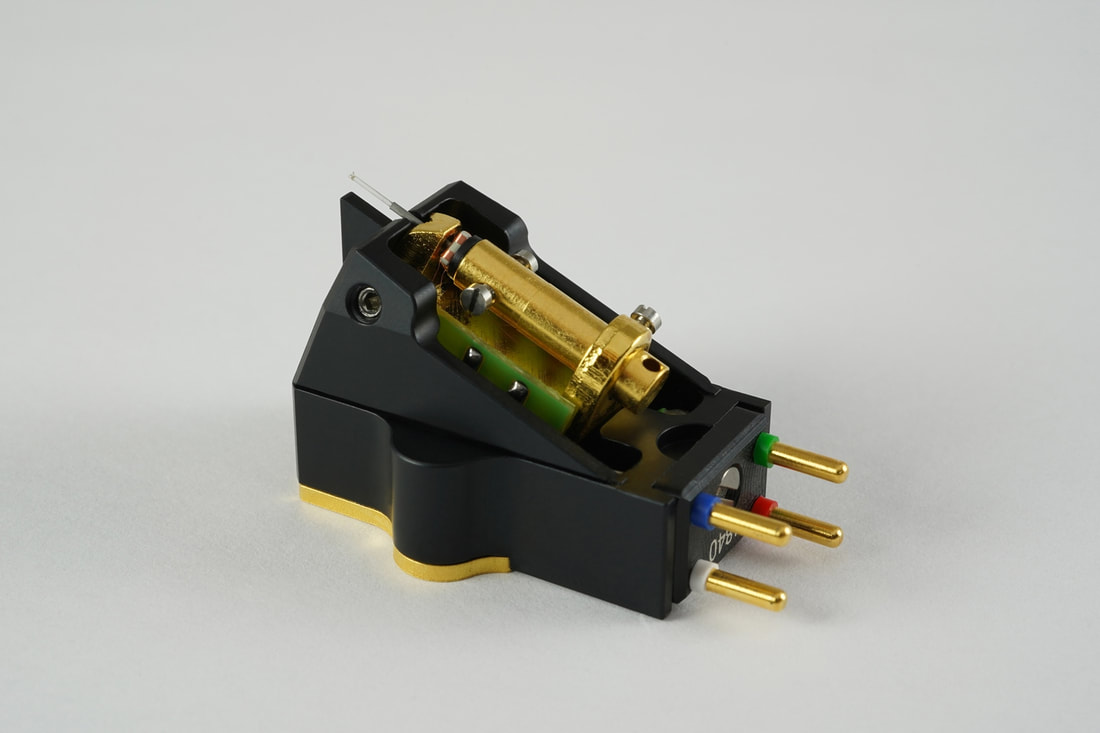

Sandwich-Body Architecture

Chapter 01

Sandwich-Body Architecture

The primary innovation defining the JSD Pure is its unique composite sandwich housing. By layering dissimilar materials within the anodized chassis, EMT engineers created a mechanical mechanical sink that dampens parasitic micro-resonances. This prevents energy from reflecting back into the stylus tip, ensuring that the musical signal remains clean, stable, and remarkably free from the subtle ringing that often colors all-metal or wooden cartridge designs.

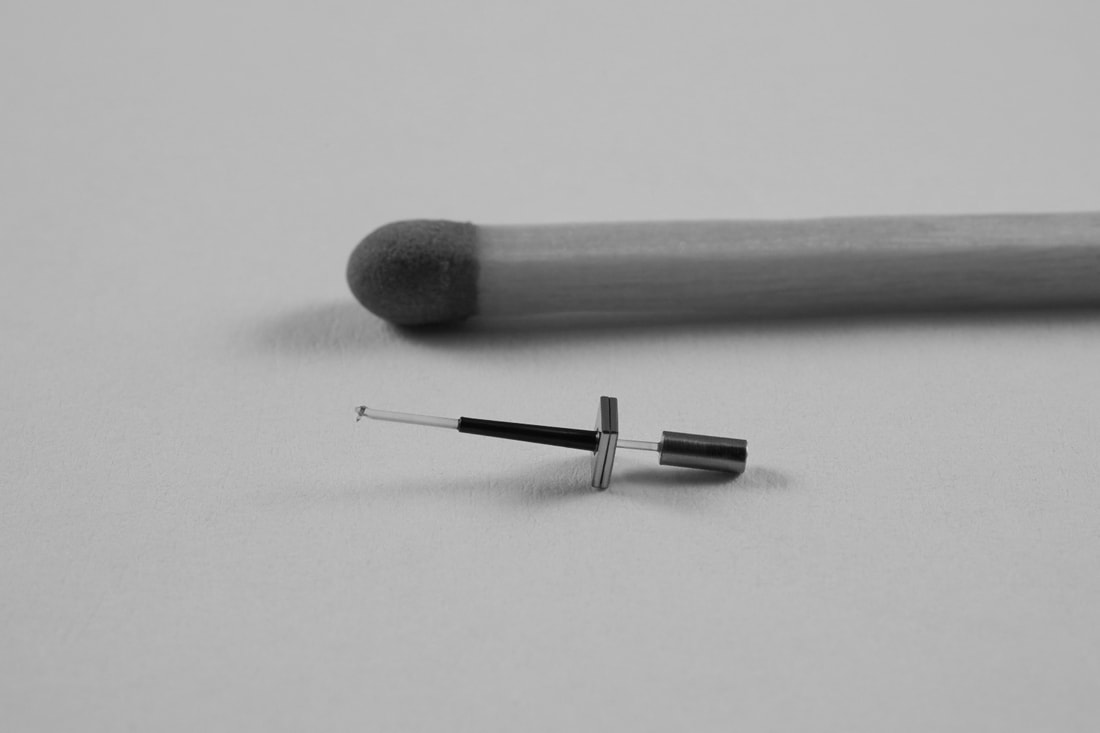

The Reference Generator

Chapter 02

The Reference Generator

At the core of the JSD Pure sits EMT's highly refined reference-grade moving-coil engine. Hand-assembled in Switzerland by a dedicated team of micro-mechanics, each unit marries a traditional cross-armature to a highly precise multi-facet diamond stylus. This unique assembly process relies heavily on manual skill and personal listening verification, enabling technicians to tune individual sound properties to achieve maximum musicality and absolute tonal balance.
Listening Notes

Chapter 03

Listening Notes

On the turntable, the structural damping of the JSD Pure translates directly into an exceptionally stable and convincing soundstage. Complex orchestral passages or heavily modulated bass lines retain their distinct separation without bleeding into the mid-range or compressing the stereo field. High frequencies are beautifully extended and silky, delivering pristine spatial cues and room acoustics without introducing false emphasis or modern analytical harshness.

Specifications

DiamondMR HP
CantileverSapphire
TransducerMC Stereo
CoilCopper 4N
MagnetAlNiCo, gold-plated
BodyAlu/Bronze Sandwich??
Connection1/2" – 4pin
Vertical tracking angle23°
Weight11g
Tracking force2,4g
Output voltage1mV @ 5cm/s
Compliance12µm/mN
Frequency response20 - 30‘000Hz
Impedance2x 24Ω
Recommended load200 - 300Ω
