JSD VM

EMT · HIFI

JSD VM

The world's only variable-mass moving-coil cartridge for precise tonearm matching.

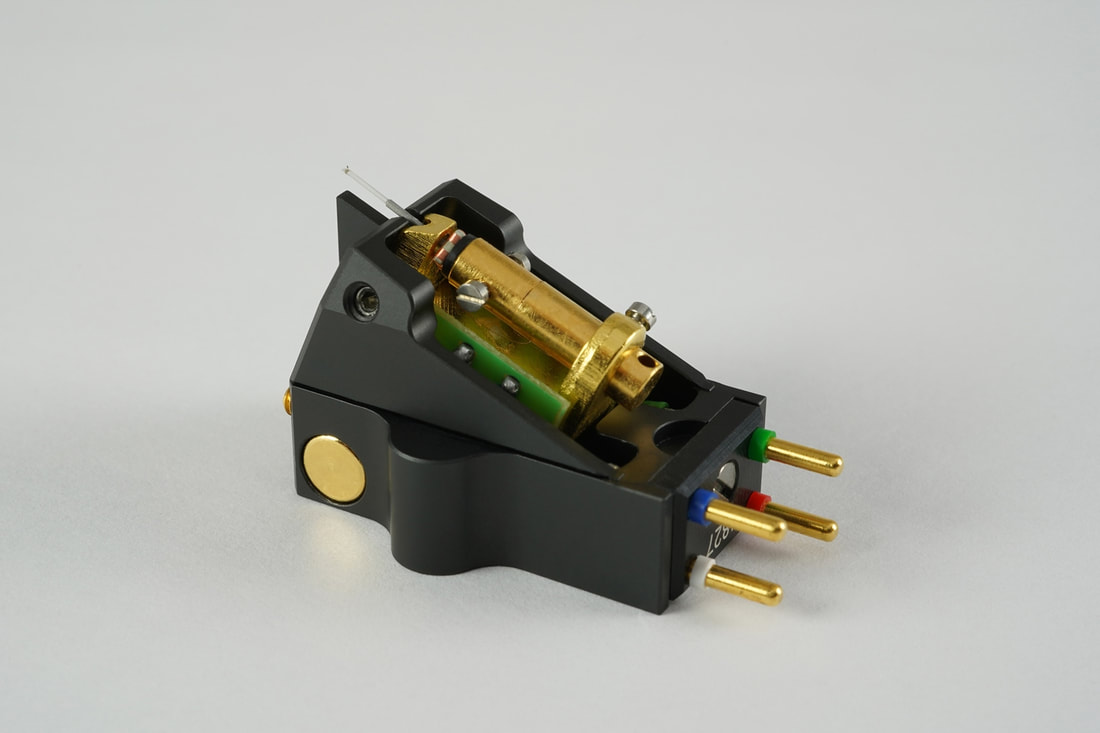

The EMT JSD VM addresses one of the most critical, yet frequently ignored, interfaces in high-end analog playback: the structural resonance relationship between the tonearm and the cartridge body. While conventional moving-coil designs force listeners to compromise based on fixed weight constraints, the VM (Variable Mass) architecture delivers a system that can be tuned by the operator. It represents a highly practical evolution of the brand's legendary broadcast engine, reimagined for demanding high-fidelity systems. Positioned as the most versatile, high-resolution solution within the reference tier of the HIFI line, the JSD VM bridges the gap between classic studio performance and modern mechanical adaptability. It allows listeners to utilize their choice of premium medium-to-high mass tonearms without risking acoustic muddying or tracking errors caused by mismatched compliance. By offering a customizable physical anchor, EMT shifts the focus from simple equipment pairing to definitive system calibration. Sonically, the JSD VM delivers a beautifully centered, stable, and highly transparent musical presentation. Because the mechanical grounding can be optimized precisely to the arm, background noise drops dramatically, revealing an unforced clarity across the mid-range. It maintains the classic, full-bodied warmth and authoritative dynamic slam that has defined EMT for over half a century, but layers it with a modern ability to project an expansive, tightly focused three-dimensional soundstage.

Key Features

01

Variable-Mass Body System

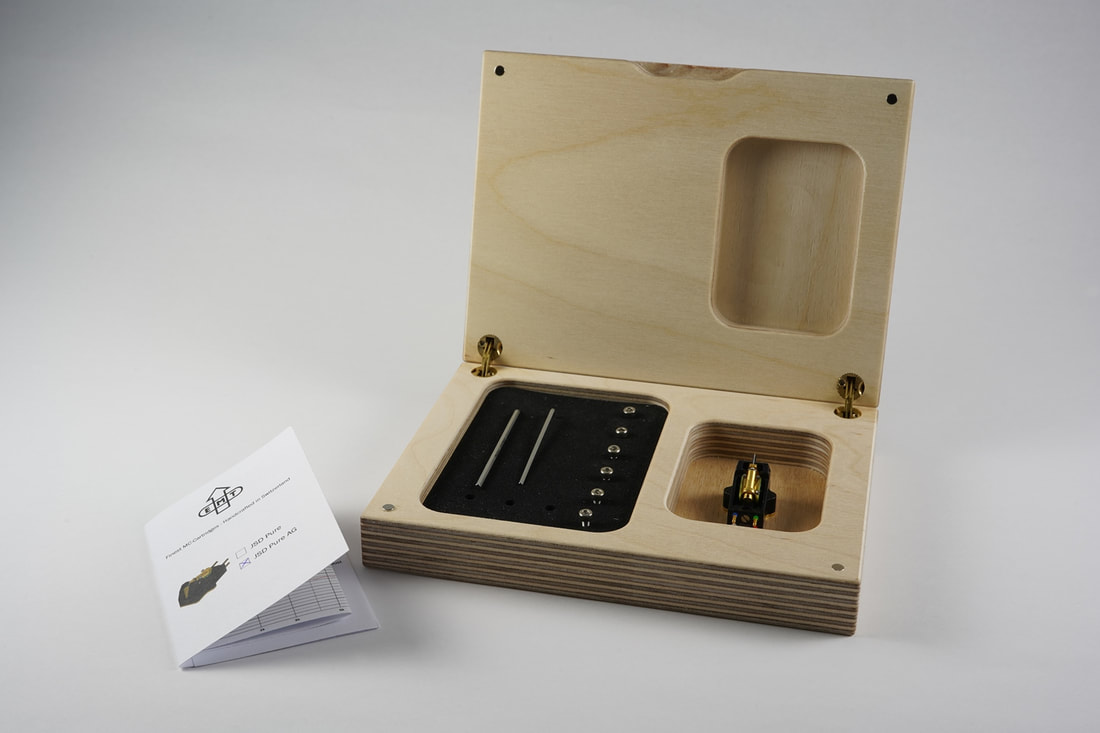

Comes supplied with three interchangeable inlay bolts crafted from different materials, allowing the user to vary the cartridge mass between 10 and 12 grams to perfectly trim tonearm resonance.

02

Sapphire Cantilever Assembly

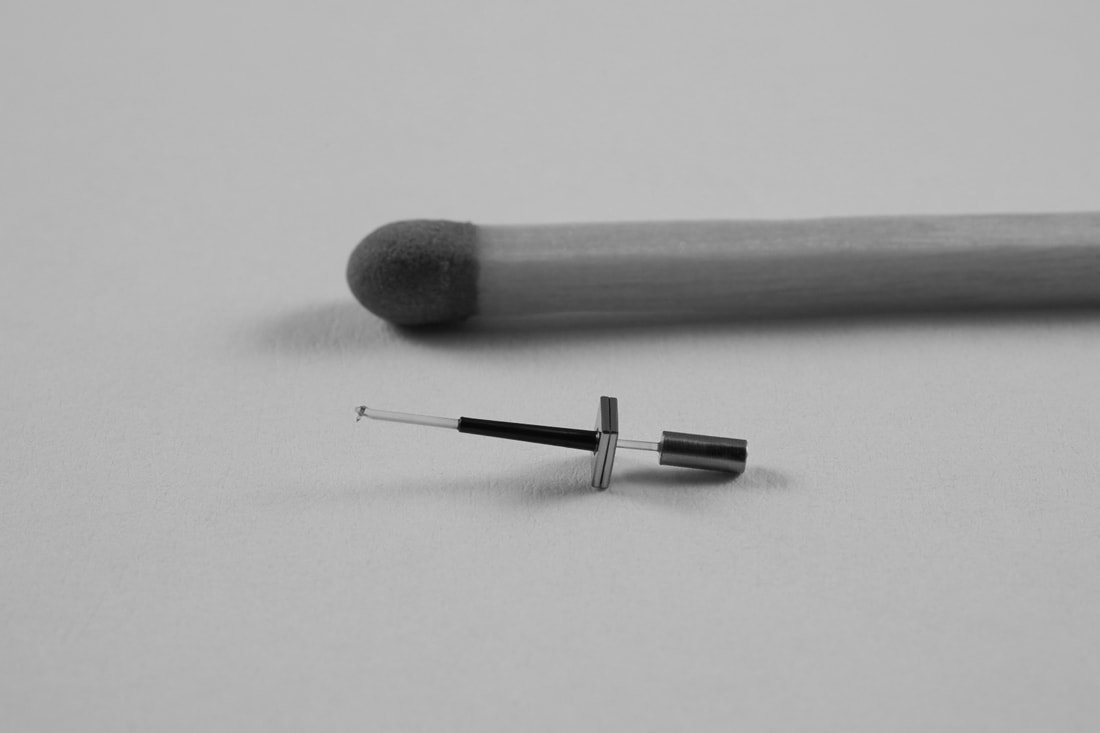

Features a white sapphire cantilever that provides immense structural rigidity and exceptional transmission speed, ensuring minimal energy loss between the stylus and generator.

03

MR HP Diamond Stylus

A high-polish, multi-radius diamond profile that mirrors the profile of original cutting heads, offering impeccable groove wall tracing and reduced tracking noise.

04

Gold-Plated AlNiCo Magnet

Utilizes a classic, highly stable AlNiCo magnet system treated with a protective gold coating to ensure optimal magnetic flux and traditional analog warmth.

05

Anodized Aluminum Chassis

The main body structure is milled from a solid block of aluminum and finished with a graphite anodization process, chosen for its excellent internal damping profile.

The Science of Variable Mass

Chapter 01

The Science of Variable Mass

Every tonearm and cartridge combination forms a resonant system that operates ideally within a narrow frequency window between 8 and 12Hz. The JSD VM resolves this matching dilemma by treating the cartridge weight as a dynamic variable rather than a fixed limitation. By swapping the specialized inlay bolts, listeners can alter the effective mass of the cartridge block, shifting the resonant frequency away from warped-record tracking errors and subsonic acoustic feedback.
Broadcast Heritage, Refined

Chapter 02

Broadcast Heritage, Refined

Beneath its adaptable aluminum chassis beats the heart of EMT's modern stereo generator assembly, utilizing 4N high-purity copper coils wound onto a traditional cross-armature. This hand-assembled motor system retains the intense musical drive, presence, and reliability originally demanded by international radio networks. Hand-built piece by piece in Switzerland, each unit undergoes exhaustive tuning and inspection by master technicians to ensure total consistency across the frequency band.
Listening Notes

Chapter 03

Listening Notes

When calibrated correctly to the host tonearm, the JSD VM exposes a level of nuance and low-level detail that is often lost to mechanical micro-vibrations. Bass lines recover their authentic geometric edges and physical punch, while high frequencies remain silky and extended without generating false peakiness. The midrange possesses a stunningly realistic vocal presence, locking performers into a vivid, structurally convincing soundfield that respects the acoustic architecture of the original venue.

Specifications

DiamondMR HP
CantileverSapphire
TransducerMC Stereo
CoilCopper 4N
MagnetAlNiCo, gold-plated
BodyAluminium, variable mass
Connection1/2" – 4pin
Vertical tracking angle23°
Weight10...12g
Tracking force2,4g
Output voltage1mV @ 5cm/s
Compliance12µm/mN
Frequency response20 - 30‘000Hz
Impedance2x 24Ω
Recommended load200 - 300Ω
