IKEDA · Headshells
IS-2TCR1
A masterpiece of chrome-plated precision for definitive analogue signal retrieval.
The IS-2TCR1 serves as the definitive reference within the Ikeda accessory range, representing the culmination of Isamu Ikeda’s engineering philosophy. Meticulously buffed and finished in a mirror-like chrome, this headshell is designed to provide the absolute mechanical neutrality required by reference-grade tonearms.
At its heart lies a solid titanium connector block, chosen for its exceptional ability to suppress resonance and maintain a rigid, vibration-free coupling between cartridge and arm. This sophisticated approach to material selection ensures that the micro-details of the musical signal are preserved without the interference of parasitic vibrations or mechanical colouration.
In terms of sonic performance, the IS-2TCR1 is remarkably composed, offering a transparent window into the recording. It is prized for its ability to deliver an expansive soundstage, improved transient accuracy, and a foundation of structural authority that allows high-performance transducers to operate with complete freedom.
Key Features
01
Titanium alloy connector
Features a precisely machined titanium block to maximise rigidity and eliminate resonance at the tonearm interface.
02
Mirror-finish chrome plating
The aluminium body is buff-polished and chrome-plated to ensure both mechanical density and a signature aesthetic.
03
Precision adjustment
Offers fine control over azimuth and overhang to allow for perfect cartridge alignment geometry.
Chapter 01

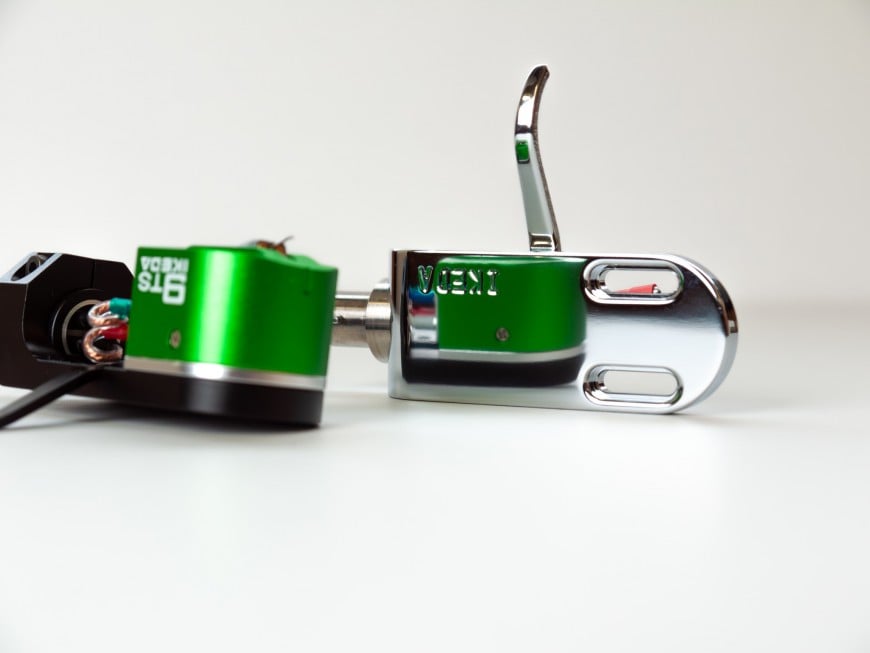

Manufacturing Process
The IS-2TCR1 is crafted through a rigorous process of precision machining and manual finishing. Each aluminium body is buffed to a mirror-like sheen before receiving its durable chrome plating. This labour-intensive treatment ensures the headshell achieves the mass and rigidity necessary for its role as the Ikeda flagship.
Chapter 02

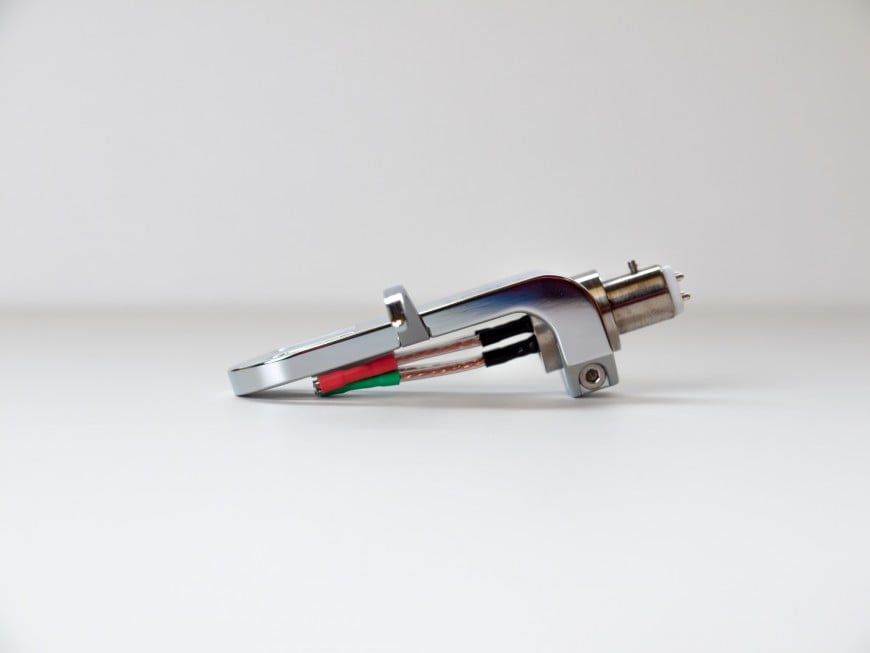

Listening Notes
When integrated into a high-end analogue chain, the IS-2TCR1 is noted for its exceptional transparency and stability. It allows for a deeper exploration of the recording space, providing increased clarity in the frequency extremes and a level of poise that remains consistent even through complex musical passages.
Specifications
TypeChrome-plated aluminium alloy headshell
Weight17.5g (+/- 0.5g)
Finish optionsChrome-plated silver
ConnectorMachined titanium alloy
TerminalsRhodium plated
Included leadISL-1 (4N-OFC Litz wire φ0.08mm x 10 x 3)
AzimuthFront and rear adjustment 50mm±1.5mm
Included2 L-shaped wrench rods (1.5/1.27) Set screws 2 sets (2.6 x 7,10) Nuts 1 set
