IKEDA · 9
9xx
The definitive flagship expression of Ikeda's pursuit of analog perfection.
As the flagship of the renowned 9 series, the 9xx represents the absolute height of Ikeda Sound Labs' engineering prowess. Every element, from the choice of exotic materials to the precise calibration of the generator, has been meticulously refined to ensure that no nuance of the musical signal is lost.
The 9xx is built upon a foundation of high-rigidity materials, utilizing a titanium alloy base and a buffed aluminum alloy body. This dual-structure is finished with a striking black rhodium plating, a combination chosen not only for its aesthetic elegance but for its ability to balance mechanical rigidity with resonant damping.
At the heart of the 9xx lies a boron cantilever paired with a micro-ridge stylus, a configuration that allows for effortless tracking of ultra-high frequencies. This sophisticated assembly ensures that even the most complex groove modulations are retrieved with absolute accuracy, resulting in a sound characterized by a rich, authoritative bass response and an expansive, immersive soundstage.
Listeners can expect a presentation that is both technically flawless and deeply emotionally resonant. The 9xx excels at revealing the microscopic details that define a live recording, effectively making the listener feel the presence of the artists and the atmosphere of the venue. It is an instrument built for those who demand the highest possible fidelity from their vinyl collection.
Key Features
01
Micro-ridge stylus
The advanced stylus tip shape provides superior groove contact, enabling the accurate retrieval of ultra-high frequency information.
02
Boron cantilever
Constructed from high-stiffness boron for optimal vibration transmission, reducing coloration and ensuring transient accuracy.
03
Black rhodium finish
The luxurious rhodium plating serves a dual purpose, enhancing the mechanical dampening of the cartridge body while providing a refined aesthetic.

Chapter 01

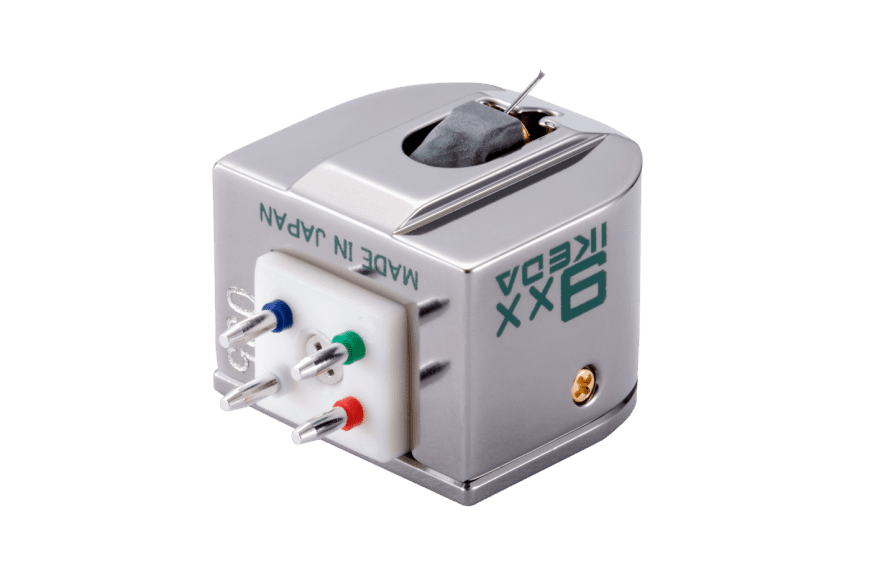

Design & Philosophy
The 9xx is the result of a singular design philosophy aimed at capturing the 'breath' of a recording. By balancing the soft damping properties of aluminum with the hard, rigid properties of titanium, Ikeda has created a platform that allows the generator to perform without interference from mechanical resonance.

Chapter 02

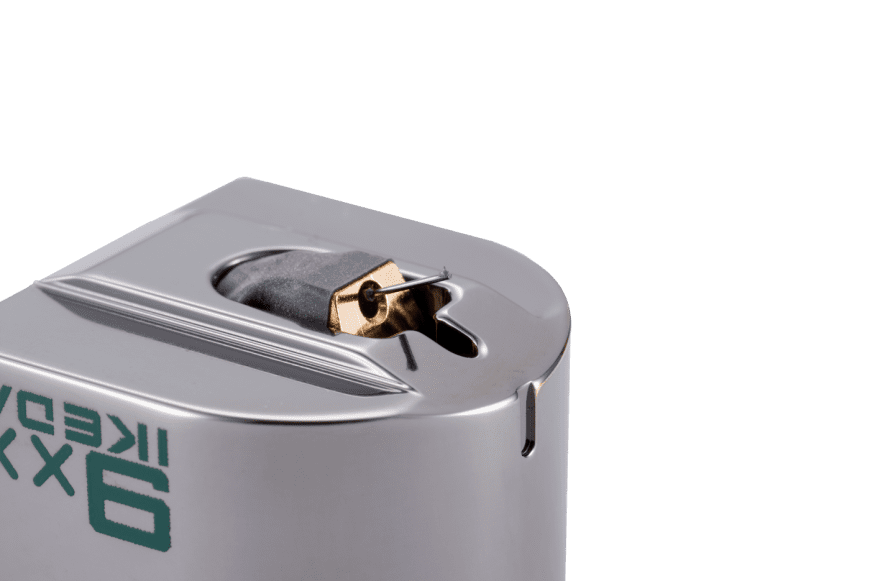

Build & Materials
The cartridge is meticulously machined from solid blocks of titanium and aluminum. These components are then buffed to a mirror finish before being treated with black rhodium, a process that ensures the 9xx is as durable as it is sonically transparent.
Specifications
TypeMoving Coil (MC)
Sensitivity0.3mV (1kHz 35.4mm/sec.)
Impedance2.5 ohms (1kHz)
Weight12g
Appropriate stylus pressure2.0±0.2g
