IKEDA · IT
IT-407 CR-1
A 12-inch dynamic balance tonearm engineered for ultimate transcription accuracy.
The IT-407 CR-1 is the definitive 12-inch statement in the Ikeda tonearm line, representing the pinnacle of mechanical precision for analog playback. By increasing the effective length compared to its shorter counterparts, this arm provides improved tracking geometry, reducing lateral tracking error and harmonic distortion across the entire record surface.
At its core, the IT-407 CR-1 utilizes a sophisticated dynamic balance mechanism that applies tracking force through a finely tuned spring system. This design allows the tonearm to maintain consistent pressure against the record groove, providing exceptional stability and performance even when encountering warped vinyl or complex, high-energy modulations.
Sonically, the IT-407 CR-1 is defined by its sense of scale, effortless authority, and tonal richness. It imparts a grounded, authoritative quality to the music, allowing for an expansive and highly detailed soundstage. It remains the arm of choice for those who seek the classic, full-bodied Ikeda sound, delivered with the technical refinement and structural integrity expected of modern high-end Japanese engineering.
Key Features
01
12-inch geometry
Extended length significantly reduces lateral tracking error for increased clarity and lower distortion.
02
Dynamic tracking force
Spring-loaded mechanism ensures stable tracking force, even on irregular or warped vinyl surfaces.
03
Precision bearing assembly
High-tolerance bearing system provides minimal friction, allowing for exquisite retrieval of micro-dynamic detail.
Chapter 01

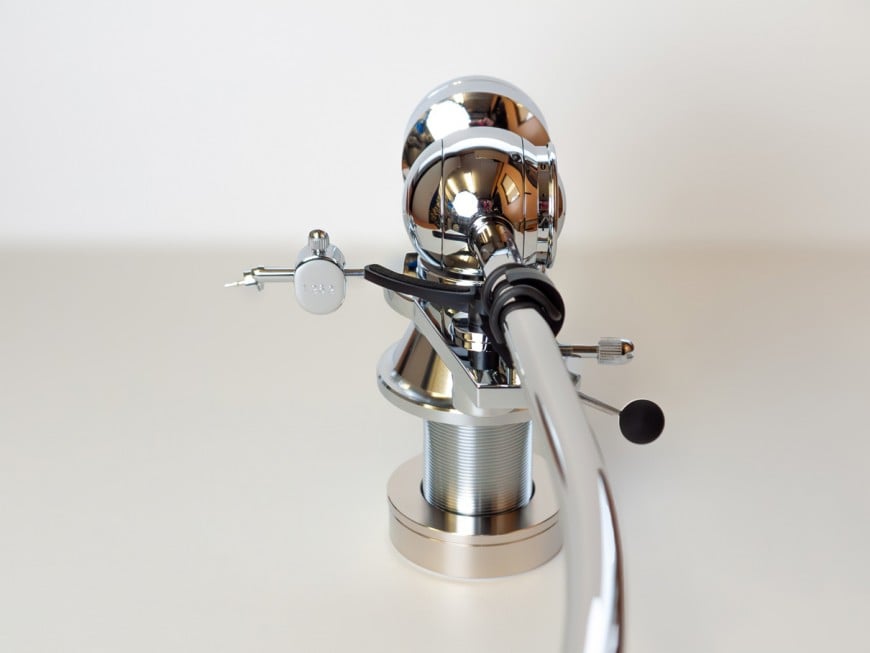

Engineering Philosophy
The IT-407 CR-1 is built on the belief that a longer tonearm is inherently superior for transcription. By geometry-optimized design, it minimizes the geometric errors inherent to pivoted arms, allowing the stylus to trace the groove with greater accuracy and less mechanical stress.
Chapter 02

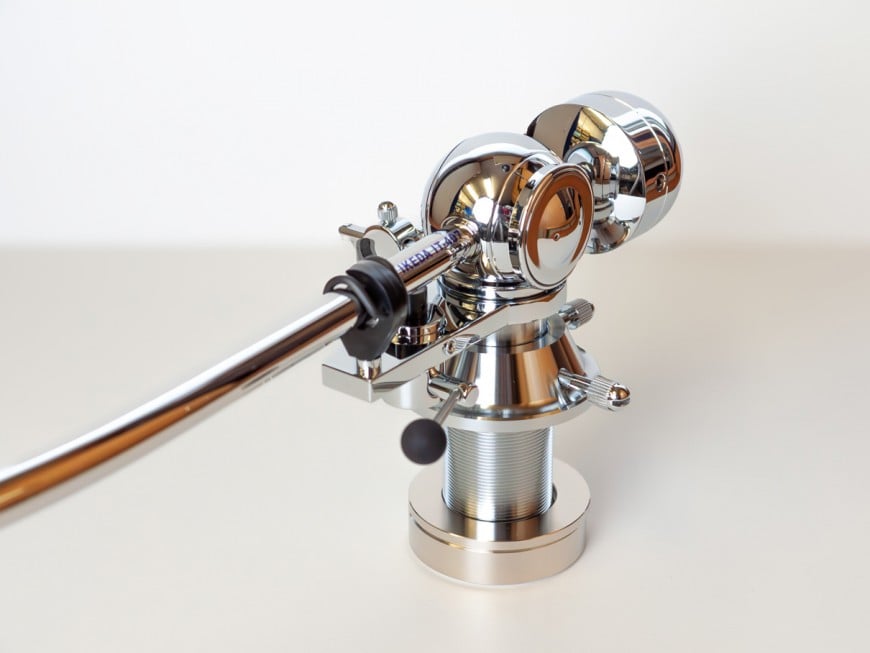

Build & Materials
Constructed from high-grade alloys, the tonearm assembly is designed for maximum rigidity and vibration suppression. Every component is machined to strict tolerances and hand-assembled in Japan to ensure consistency and longevity in demanding high-end audio environments.
Chapter 03

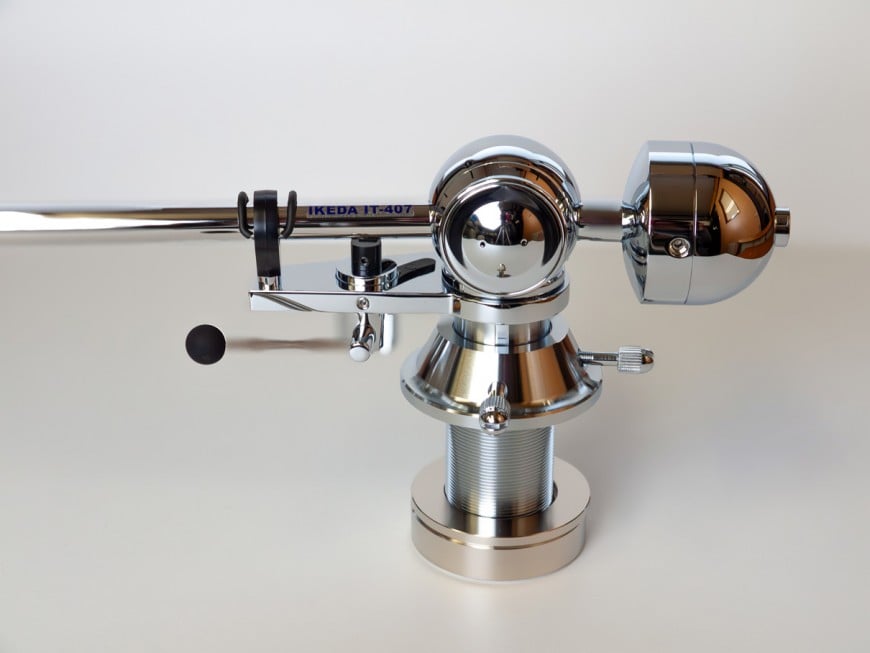

Listening Notes
Listeners often describe the IT-407 CR-1 as having a 'commanding' presence. Its length contributes to a sense of ease and naturalness in the music, particularly in the lower registers where the arm's stability ensures authoritative and clean bass reproduction.
Specifications
TypeDynamic balance
Overall length388mm
Effective length307mm
Stylus force range0g – 5g (in 0.5g steps)
Headshell weight17.5g
Tracking error+2° to 0°35'
Weight1.41 kg
Arm height range20 to 60 mm
Arm shaft diameter25.2mm
Base mounting hole dimensionsφ31mm
Cartridge compatible range (including shell)20 to 41.5g
