NAGAOKA · MP

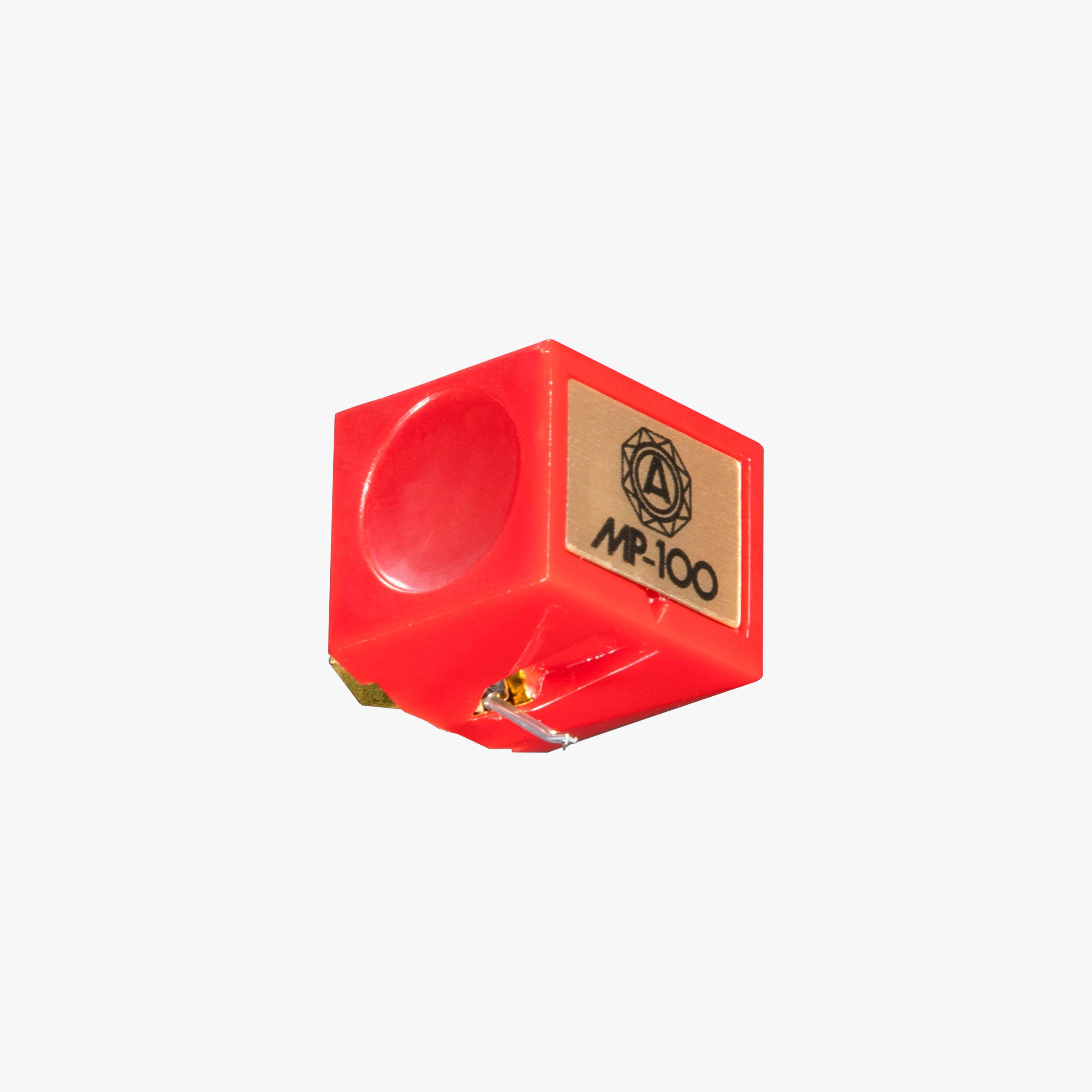

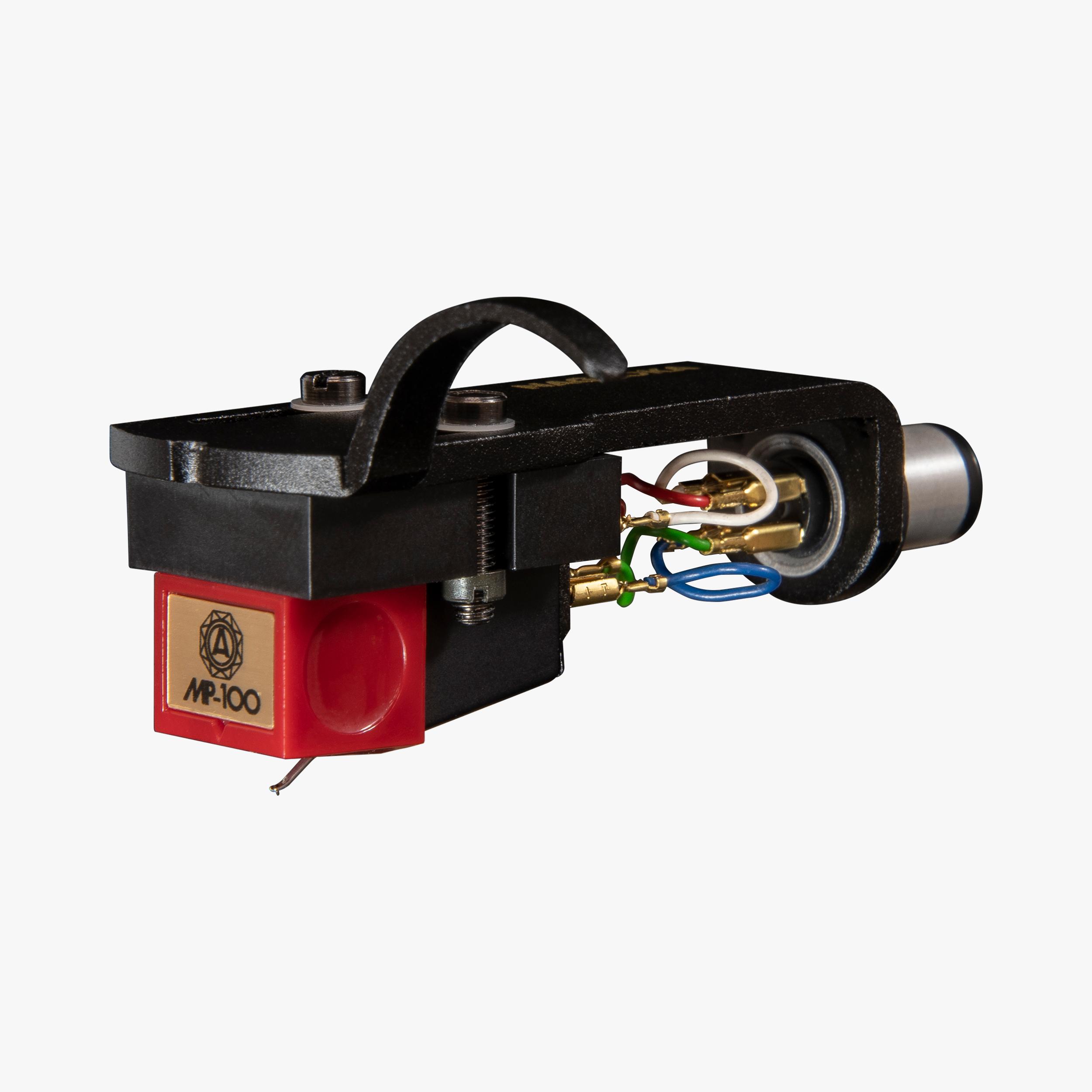

MP-100
An accessible entry into the signature Nagaoka moving permalloy sound.
The Nagaoka MP-100 serves as the entry point to the brand's celebrated moving permalloy technology. It is designed to provide music lovers with a clean, uncoloured, and deeply enjoyable listening experience that honours the heritage of the Japanese manufacturer.
Positioned as the most accessible model in the current MP lineup, the MP-100 focuses on mechanical reliability and sonic consistency. It is a cartridge built for the daily demands of a music library, offering a balance of performance and practicality that is often missing from entry-level audio components.
Its sound is characterised by a natural and balanced presentation. By utilising a bonded conical diamond stylus and a lightweight aluminium cantilever, it retrieves music with a warmth that makes it particularly well-suited to older records or systems that benefit from a slightly more laid-back character.
Key Features
01
Conical Diamond Stylus
The 0.6mil conical stylus provides stable, forgiving tracking that minimises surface noise on less-than-perfect records.
02
Aluminium Cantilever
A lightweight and rigid cantilever design ensures accurate signal transfer from the record groove.
03
Permalloy Motor System
The proprietary permalloy construction ensures high output and wide compatibility with standard MM phono stages.
04
User-Replaceable Stylus
Designed for long-term ownership, the stylus can be easily replaced by the user to maintain performance.
Chapter 01
Design Philosophy
Nagaoka approaches the MP-100 with a focus on delivering the core virtues of the MP series at an attainable level. The design prioritises structural durability and consistent tracking, ensuring that the cartridge provides a stable foundation for the rest of the hi-fi system.
Chapter 02
Sonic Character
The MP-100 is valued for its unpretentious and musical delivery. It provides a warm midrange and a controlled high-frequency response, making it an excellent partner for casual listening sessions. It is a cartridge that allows the music to take centre stage, offering an engaging performance that avoids the harshness found in some budget alternatives.
Specifications
Frequency response20Hz – 20kHz
Sensitivity5mV (1kHz, 5cm/sec)
Impedance47k ohms
Power handling100 pF
Cartridge Weight6.5g
Channel Separation22dB (1kHz)
Channel balance2.0 dB or less
CantileverAluminum alloy
Needle tip0.6mil conical / joining diamond
Proper needle pressure1.8~2.3g
Weight16.5g
