MP-200

NAGAOKA · MP

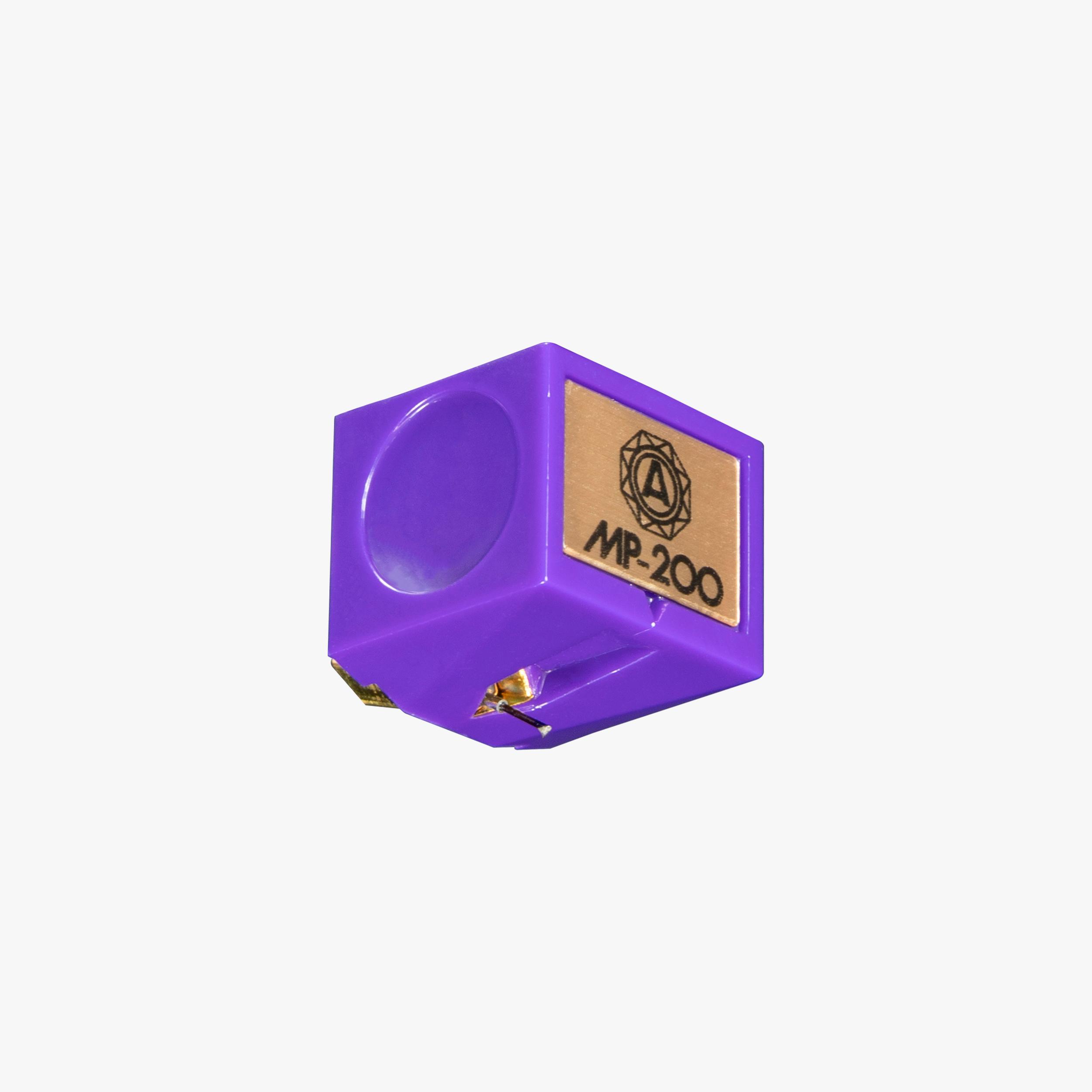

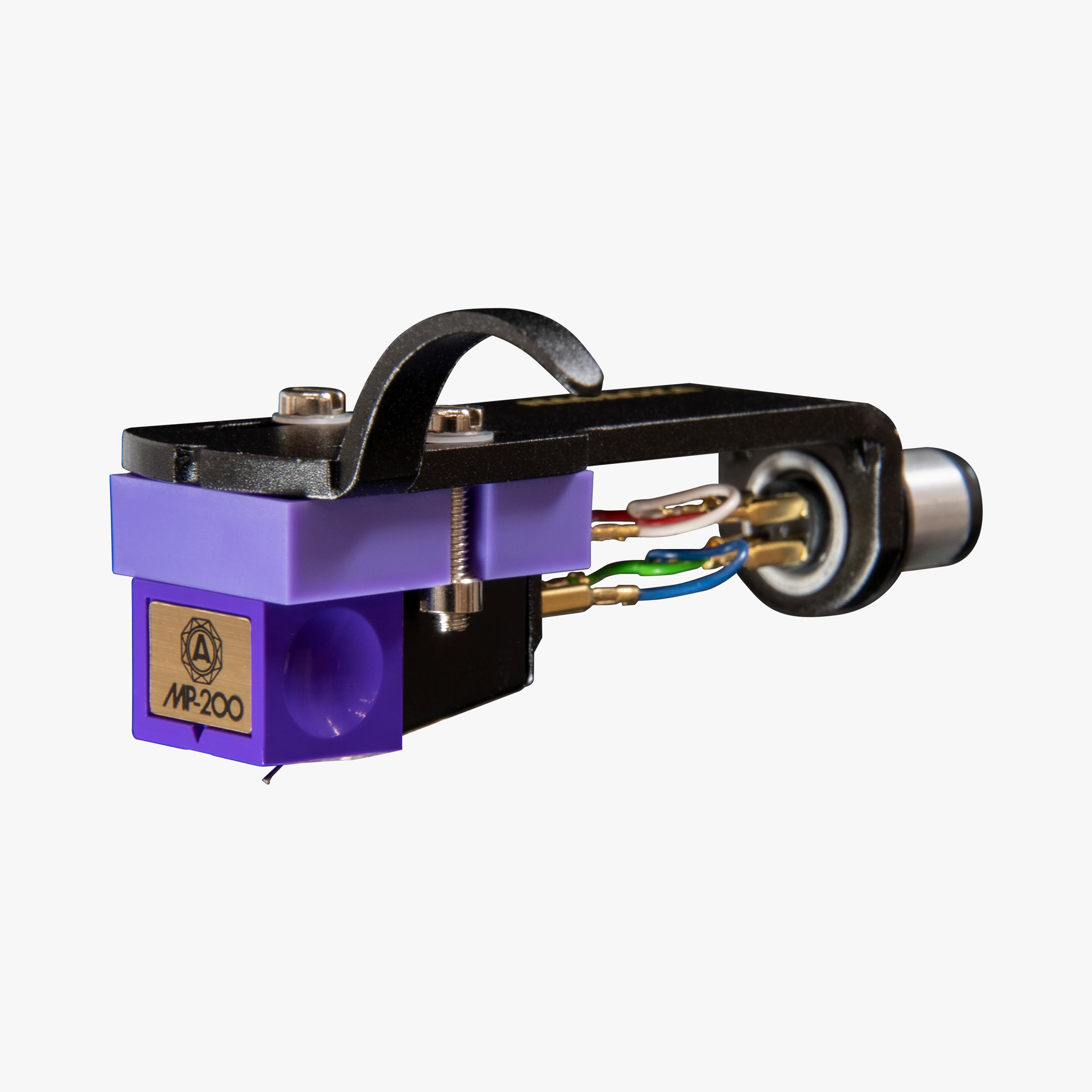

MP-200

A refined moving permalloy cartridge featuring an ultra-low-mass boron cantilever.

The Nagaoka MP-200 serves as a pivotal point in the MP line, marking the introduction of high-performance materials usually reserved for flagship designs. It is engineered for the listener who values transparency, dynamic expression, and the nuanced retrieval of low-level information. Central to its performance is the ultra-low-mass boron cantilever. By reducing moving mass compared to the aluminium cantilevers found in lower models, the MP-200 achieves superior transient speed and a more coherent recovery of the signal within the vinyl groove. In practice, this translates to a sound that is both vivid and relaxed. It manages to present complex orchestral or jazz recordings with a high degree of separation and air, ensuring that the listener can follow individual instruments without the presentation ever becoming harsh or overly clinical.

Key Features

01

Boron Cantilever

This rigid, ultra-low-mass material minimises mechanical resonance and ensures fast, accurate groove tracing.

02

Elliptical Diamond Stylus

A precision-polished elliptical tip is used to balance detailed retrieval with long-term record safety.

03

Permalloy Motor System

The proprietary Nagaoka permalloy motor provides a high-efficiency signal path with exceptional linearity.

04

Reinforced Chassis

The body is constructed to provide a stable, vibration-resistant platform for the internal motor assembly.

Manufacturing Philosophy

Chapter 01

Manufacturing Philosophy

Nagaoka's design approach for the MP-200 focuses on the elimination of moving mass. By integrating the boron cantilever, the company ensures that the stylus assembly is light enough to react instantly to the rapid changes in the vinyl groove, resulting in a more immediate and realistic sonic presentation.
Listening Notes

Chapter 02

Listening Notes

The MP-200 is widely recognised for its exceptional midrange performance. Vocals are presented with a tangible, lifelike quality, while the upper frequencies are detailed without being fatiguing. It is a highly versatile cartridge that performs excellently across a wide range of musical genres and turntable systems.

Specifications

Frequency response20Hz – 23kHz
Sensitivity4mV (1kHz, 5cm/sec)
Impedance47k ohms
Power handling100 pF
Weight6.5g
Channel separation25 dB (1 kHz)
Channel balance1.5 dB or less
Cantilever Boron
Needle tip0.4×0.7mil ellipse/diamond
Appropriate needle pressure1.5~2.0g
Weight16.5g
