NAGAOKA · MP

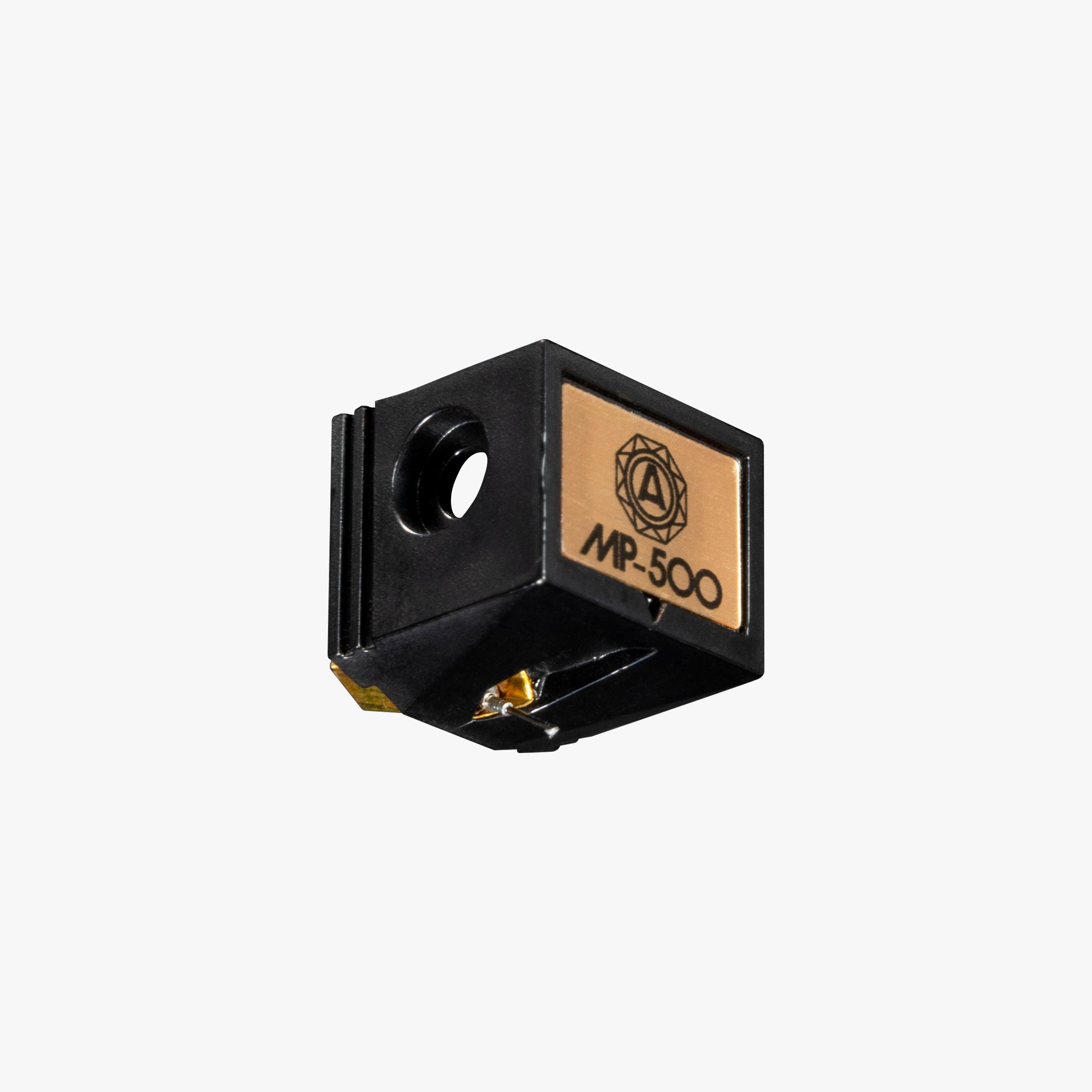

MP-500
The flagship moving permalloy cartridge for reference level vinyl fidelity.
The Nagaoka MP-500 stands as the definitive expression of the brand's expertise in moving permalloy technology. Designed for the discerning listener, it extracts an extraordinary level of detail and textural richness from the record groove while maintaining the ease and output convenience of a moving magnet architecture.
Positioned at the apex of the MP line, this model builds upon a legacy of precision engineering. By utilising advanced materials such as a low-mass boron cantilever and a Samarium Cobalt magnet, it achieves a transient speed and clarity that brings recorded music to life with startling realism.
The sound character is defined by its maturity and balance. Rather than opting for an artificial brightness, the MP-500 delivers a natural, lush presentation with deep, tuneful bass and a sweet, transparent high-frequency extension. It offers an engaging and fatigue-free experience that reveals the nuances of complex recordings without resorting to clinical or analytical detachment.
Key Features
01
Superfine Line Contact Stylus
This advanced diamond profile ensures precise tracking and exceptional high-frequency resolution across the entire record surface.
02
High-Strength Boron Cantilever
The ultra-low-mass boron construction minimises moving mass, allowing for superior transient response and reduced colouration.
03
Anti-Ferro Magnetic Shielding
The permalloy casing provides robust shielding against external electromagnetic interference, ensuring a clean and silent noise floor.
04
Reinforced Carbon Fibre Body
The chassis is engineered for maximum rigidity to eliminate unwanted vibrations, allowing the motor system to operate with peak fidelity.
Chapter 01
Engineering Excellence
Nagaoka's approach to the MP-500 is rooted in the belief that cartridge design must prioritise mechanical stability. Every component, from the samarium cobalt magnet to the carbon fibre reinforced pole shoe, is selected to eliminate resonance and maintain perfect alignment during playback.
Chapter 02
Listening Notes
The MP-500 rewards the listener with a soundstage that is both deep and wide, placing performers in a tangible, three-dimensional space. While it tracks with the poise of a high-end moving coil, it remains remarkably forgiving, making it an ideal companion for both pristine audiophile pressings and well-loved vintage vinyl.
Specifications
Frequency response20Hz – 25kHz
Sensitivity3mV (1kHz, 5cm/sec)
Impedance47k ohms
Weight7.8g
Channel Separation27dB (1kHz)
Channel balance1.0 dB or less
Load capacitance100 pF
CantileverBoron
Needle tipLine contact diamond
Proper needle pressure1.3~1.8g
Weight with headshell26.1g
